Davis Instruments Daytime Fan Aspirated Radiation Shield Kit Installation Manual page 5

Daytime fan-aspirated radiation shield kit for vantage pro2 & vantage pro2 plus stations

4. Remove the three 8-32 x 4

together.

Plates

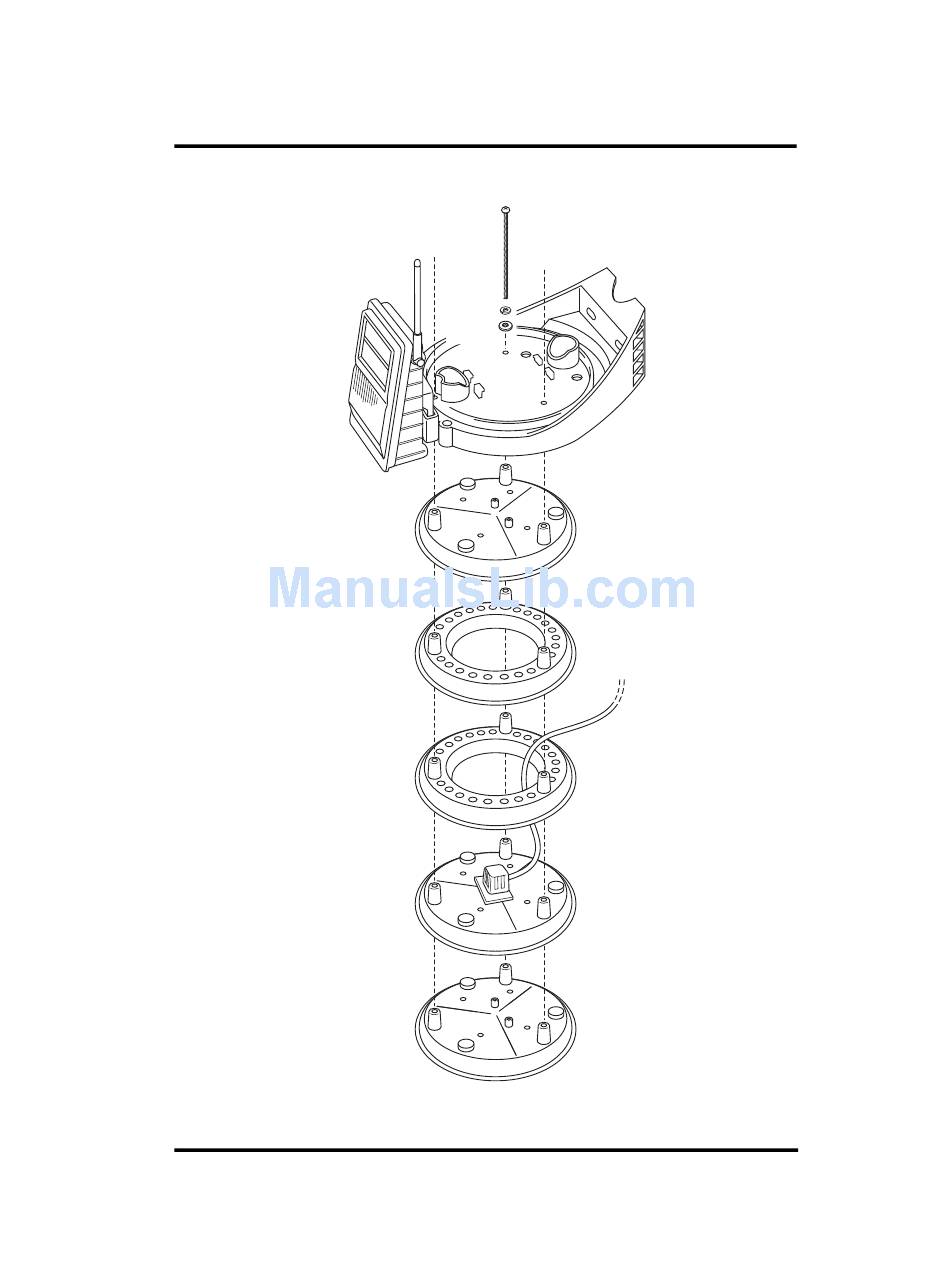

Standard Radiation Shield Assembly Diagram

Installing the Daytime Fan Kit

screws holding the radiation shield plates

4" Screw

(3)

Lock

Washer

Flat

Washer

Rain Collector Base

Temp/Humidity

Sensor
