The leaf wetness sensor enables the GroWeather™ to detect the presence of
surface moisture on foliage and calculate the duration of wetness. When mois-
ture is present, the sensor detects an electrical resistance change between the
gold-plated elements of the grid. This is displayed by the GroWeather console
as a value between 0 (dry) and 15 (wet). Using the GroWeatherLink
you may select your own wetness threshold; the software will then calculate
leaf-wet hours.
C
OMPONENTS
The leaf wetness sensor includes the following components. Please make sure
you have all listed components before continuing.

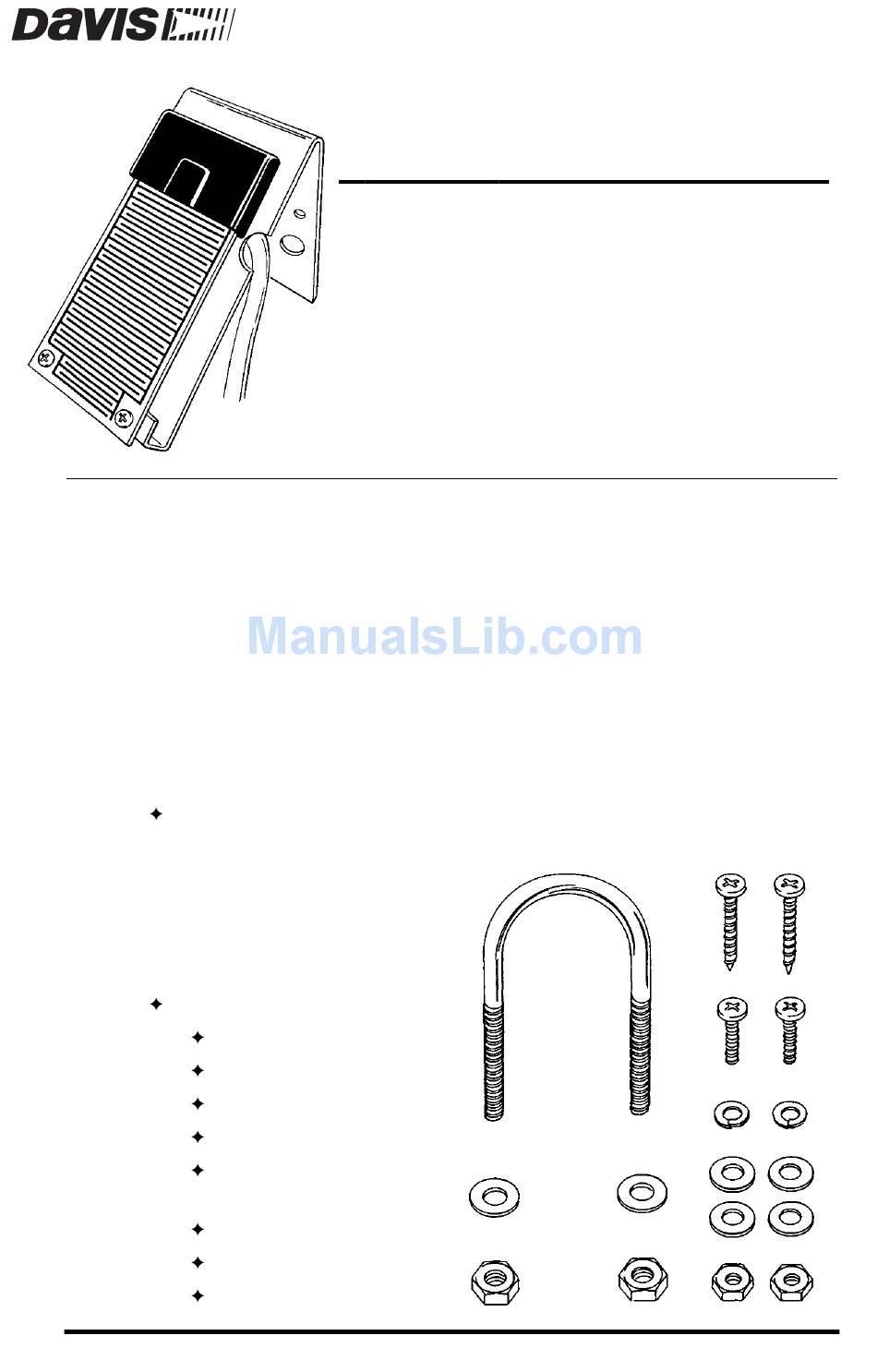

Leaf Wetness Sensor with
attached mounting bracket
The standard version of
the sensor includes an
attached 40' (12 m) cable.
The industrial version
includes a 16' (5 m) cable.
Installation Hardware Kit
One 1-1/2" U-Bolt
Two 1/4" Flat Washers
Two 1/4" Hex Nuts
Two #8 Wood Screws
Two #8 x 3/4"
Machine Screws
Four # 8 Flat Washers
Two # 8 Lock Washers
Two # 8 Hex Nuts
L
W
E A F
E T N E S S
S
& I
T A N D A R D
I
N S T A L L A T I O N
S
N D U S T R I A L
M
A N U A L
Product # 7846 & 7848
E N S O R
®
software,
