Daytime Fan-Aspirated Radiation
Shield Kit Installation Manual
™
For Vantage Pro2
& Vantage Pro2 Plus
Introduction
The instructions describe how to upgrade a non-aspirated Vantage Pro2 ™
radiation shield to a Daytime Fan-Aspirated Radiation Shield. The upgrade
kit can be installed on any Vantage Pro2 ™ or Vantage Pro2 Plus ™ Inte-
grated Sensor Suite (ISS) equipped with a round-plate non-aspirated, radi-
ation shield. The Daytime Fan-Aspirated Radiation Shield Kit can only be
installed on round-plate non-aspirated radiation shields.
Components

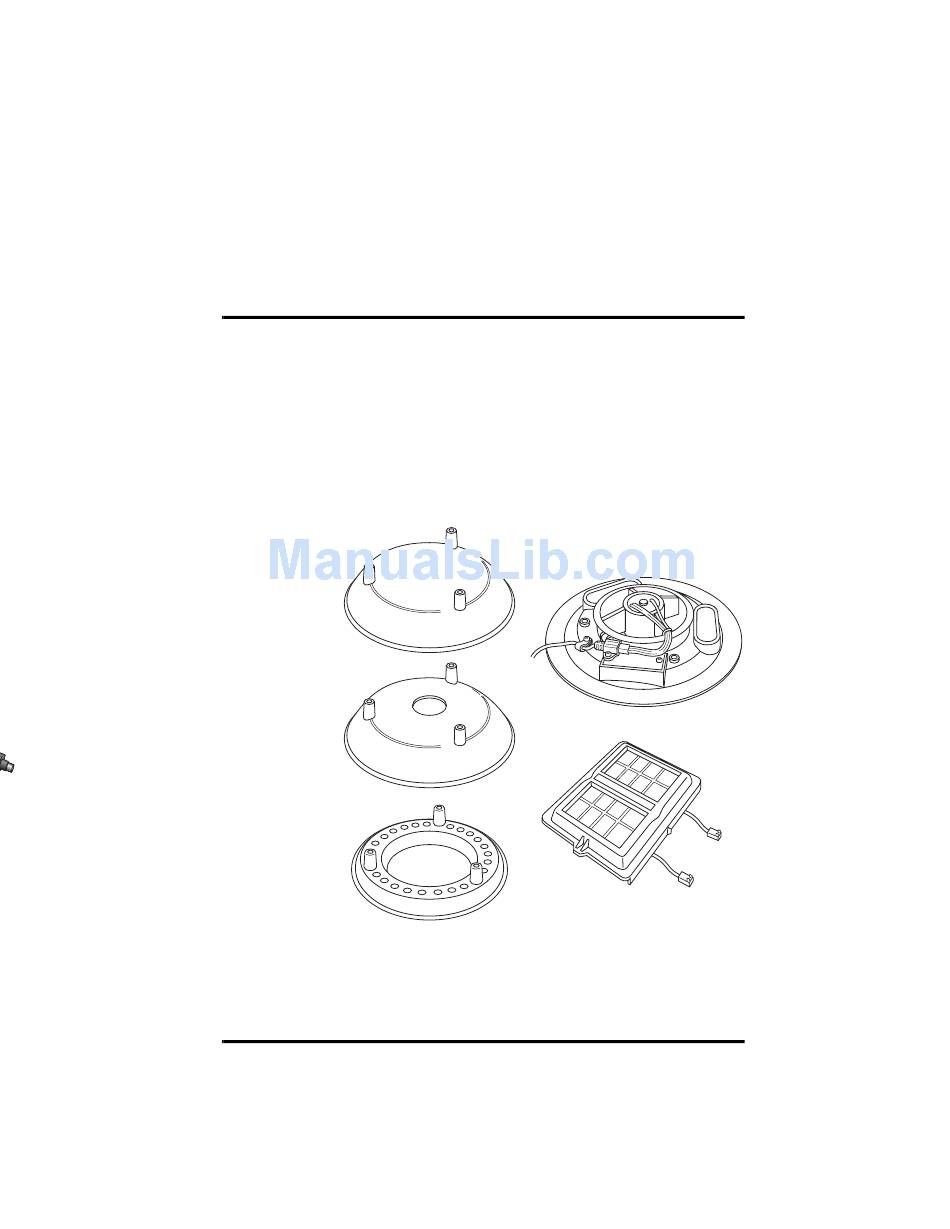

The upgrade kit includes the following components:
Closed Cap Plate
Open Cap Plate
Open Plate
1
™
Stations
Fan Plate
Daytime Fan Kit Components
SIM Cover
