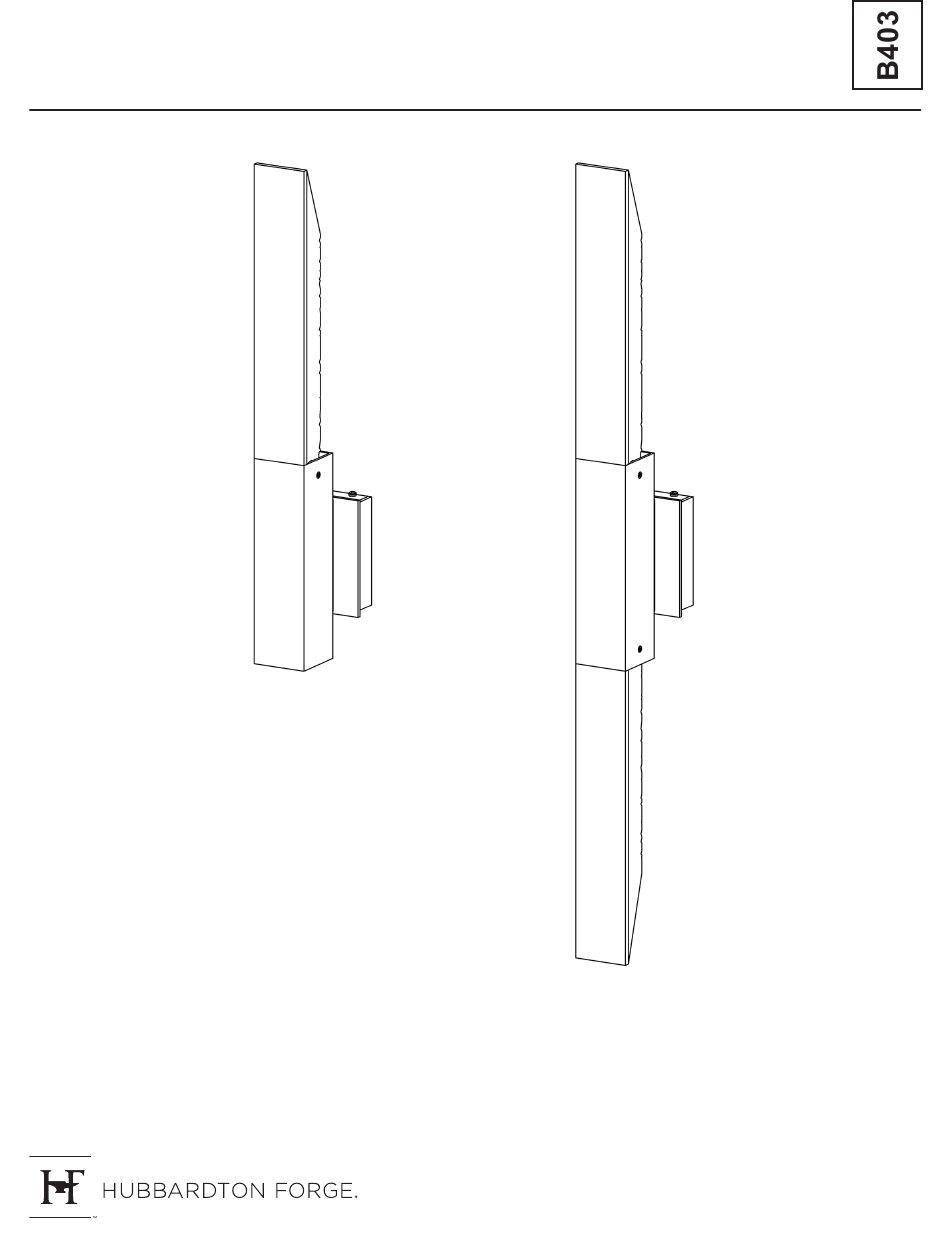

- Page 1 ASSEMBLY & INSTALLATION INSTRUCTIONS Refraction Outdoor Sconces 302620 & 302623 302620 Instructions cover both 302620 and 302623. Component quantities may vary. 302623 MODERN AMERICAN BLACKSMITHS | FINE, HAND CRAFTED LIGHTING CASTLETON, VERMONT USA | HUBBARDTONFORGE.COM 42403 1 OF 6...
- Page 2 ASSEMBLY & INSTALLATION INSTRUCTIONS Refraction Outdoor Sconces 302620 & 302623 Component Parts Fixture Front Tube Thumb Screw (4) Rubber Washer (6) Mounting Bracket Ground Screw Cupped Washer Caulking Lip #8 Screws (4) Glass (2) Anchor (4) Flat Head Screw (2)
- Page 3 ASSEMBLY & INSTALLATION INSTRUCTIONS Refraction Outdoor Sconces 302620 & 302623 CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*...
- Page 4 ASSEMBLY & INSTALLATION INSTRUCTIONS Refraction Outdoor Sconces 302620 & 302623 Triangle Plate MACHINE SCREWS (Figure 2) (Figure 3) MODERN AMERICAN BLACKSMITHS | FINE, HAND CRAFTED LIGHTING CASTLETON, VERMONT USA | HUBBARDTONFORGE.COM 42403 4 OF 6...
- Page 5 ASSEMBLY & INSTALLATION INSTRUCTIONS Refraction Outdoor Sconces 302620 & 302623 To Prepare Glass for Installation (Figure 4 ) 1. Unpack glass (J). 2. Place glass (J) on a clean surface. Press anchors (K) into holes in glass from each side until anchor is flush with side of glass.
- Page 6 If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product. We hope you enjoy your fixture! * Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
