Installation Instructions
Outdoor Flux Sconce 303090
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
Please Note: This fixture is designed to be mounted on a standard wall surface
and may not be suitable for all applications. If installing in a non-wood frame
application, we recommend consulting a qualified builder or electrician.
To Mount Fixture to Wall
Component Parts
A Fixture Assembly
B Mounting Bracket
C Anchors (4)
D #10 Screws (4)
E #8 Screws (4)
CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.
1. Carefully unpack the fixture from the carton.
2. Center the mounting bracket (B) over the electrical box be-
ing sure to hold it plumb and level. With a pencil, mark the
location of all mounting holes in the mounting bracket on
the wall behind.
3. Put the mounting bracket (B) down and drill 1/4" holes in the
locations marked on the wall. For holes using anchors (C),
place the tapered end of the anchors (C) into the holes and
gently tap them flush to the wall using a light weight ham-
mer.
4. Thread the wires in the electrical box through the center
hole in the mounting bracket (B) while moving the bracket
into position. Using the #10 screws (D), screw the bracket
securely to the wall. Be careful not to over-tighten or strip
the anchors.
5. Hold the fixture assembly (A) close to the mounting bracket
and using suitable wire connectors (not provided), connect
fixture wires to supply wires (white to white and black to
black). Run a pigtail lead from the crossbar ground screw
(F) and cupped washer (G) to the electrical box and connect
all ground wires (bare copper or green to bare copper or
green).
CAUTION: MAKE SURE WIRE CONNECTORS ARE TWISTED ON
SECURELY, AND NO BARE WIRES ARE EXPOSED.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
H U B B A R D T O N F O R G E . C O M

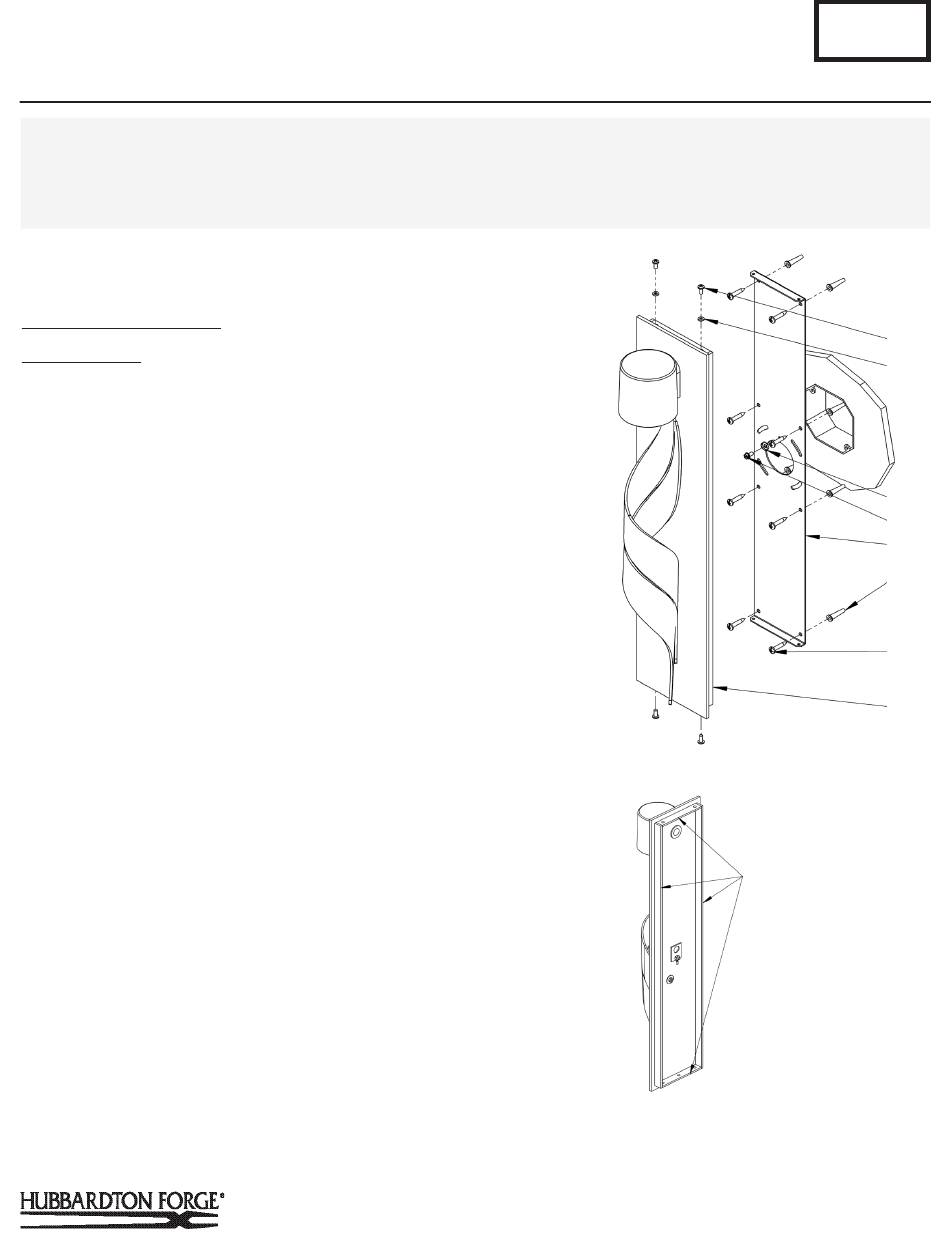

(Figures 1 & 2)
F Ground Screw
G Cupped Washer
H Rubber Washers
I
Caulking Lip
hand-forged, vermont-made lighting and accessories
154 RT. 30 SOUTH
•
(Continued)
CASTLETON, VERMONT 05735
B326
Page 1 of 2
E
H
G
F
B
C
D
A
(Figure 1)
I
(Figure 2)
31657
