Hubbardton Forge 36-5605 Installation Instructions

Installation Instructions
For Outdoor Semi-Flush 36-5605 & 36-5605F
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.

To Install Fixture

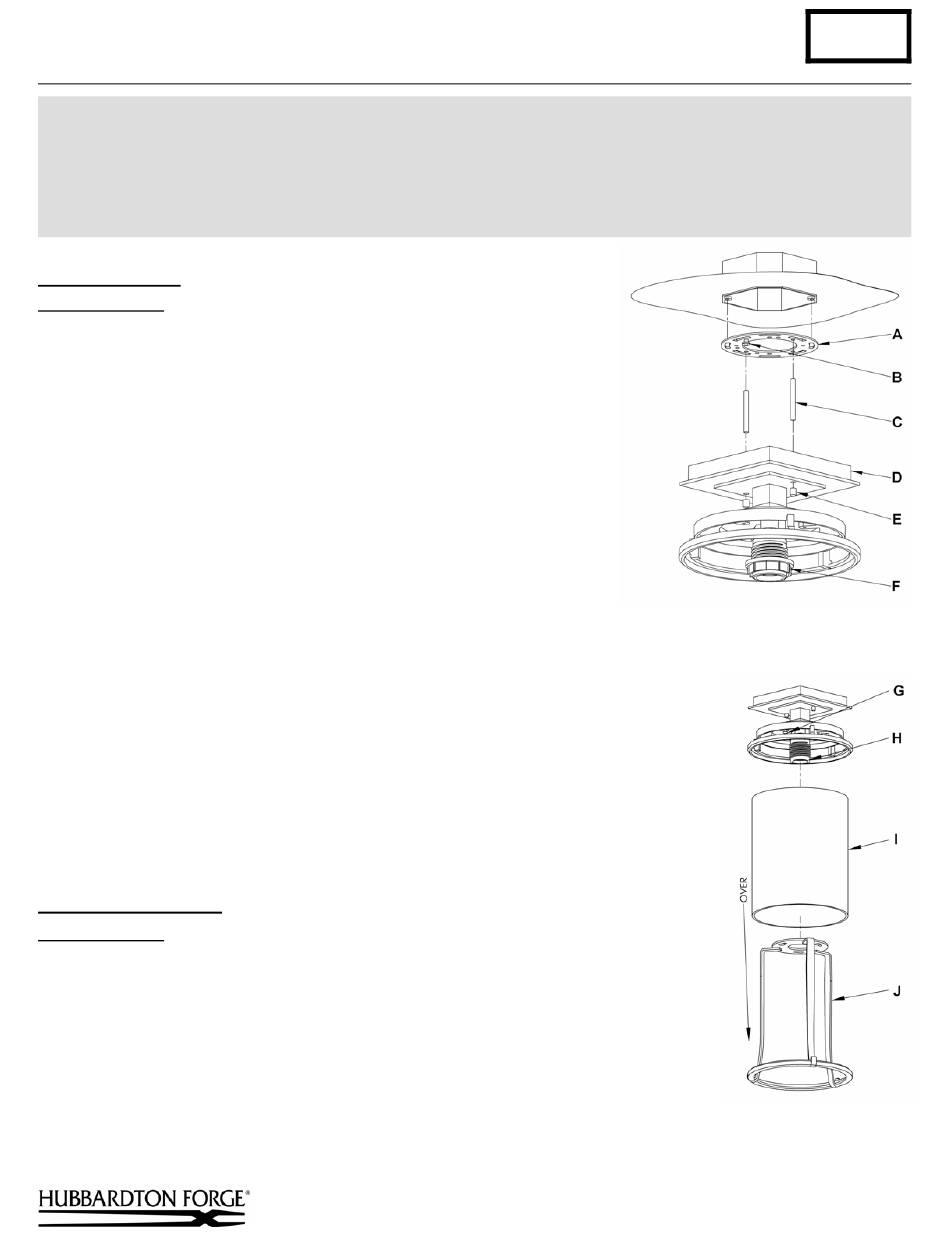

(Figure 1)

Component Parts

A Crossbar
B Ground Screw
C Threaded Stud (2)
D Canopy
E Barrel Knobs (2)
F Glass Retaining Ring (2)
Caution: Be sure power is off at the main breaker box prior to installation
1. Carefully unpack the fixture from the carton.
2. Thread studs (C) through appropriate holes in cross bar (A) to match
hole centers in canopy (D). Move ground screw (B) to another
available threaded hole if necessary.
3. Using two machine screws (not provided) fasten cross bar (A) to the
electric box using outer oval holes to orient fixture to desired hanging
position.
Note: A new electric box comes with screws. When replacing
an existing fixture, retain the screws for use with the new fixture.
5. Using suitable wire connectors (not provided) connect fixture wires to supply
wires (white to white or ribbed and black to black or smooth). Connect all
ground wires to green ground screw (B).
are twisted on securely, and no bare wire is exposed.
6. Slide fixture canopy (D) over threaded studs and push firmly to ceiling, making
sure that no wires are pinched between fixture canopy and ceiling. Fasten with
barrel knobs (E). Be sure studs (C) are fully seated in the barrel knobs (E).
7. Remove glass retaining ring (F) and save for later use.
8. Refer to instructions below to install glass & bulb.

To Install Outer Glass

Component Parts
G Screws (3)
H Socket
I Outer Glass (larger diameter glass)
J Spider Assembly
1. Unthread screws (G) that are shipped installed in threaded bosses on underside
of fixture next to socket (H). Loosen screws until there are only a couple
threads engaged with the threaded bosses.
Caution: Make sure wire connectors
(Figure 2)
Hand-Forged, Vermont-Made Lighting and Accessories
P.O. Box 827, 154 Route 30 South, Castleton, Vermont 05735
A191
Page 1 of 2
(Figure 1)
(Figure 2)
(continued)
