Summary of Contents for Hubbardton Forge Double Ursa 302507

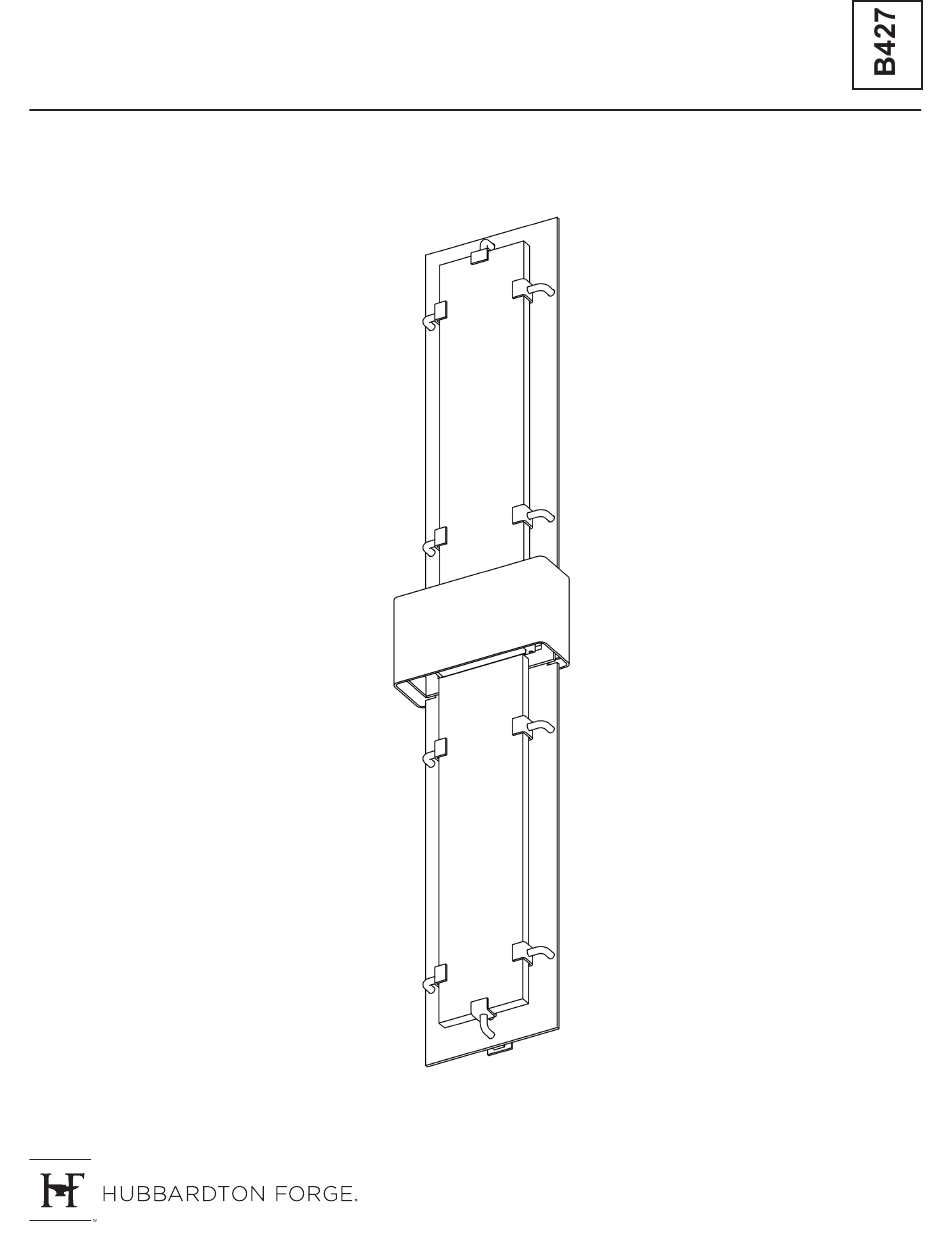

- Page 1 ASSEMBLY & INSTALLATION INSTRUCTIONS Double Ursa 302507 302643 45136 1 OF 8...
- Page 2 ASSEMBLY & INSTALLATION INSTRUCTIONS Double Ursa 302507 Component Parts Fixture Mounting Bracket Lower Decorative Plate Upper Decorative Plate #8 Screws (4) Ground Screw Cupped Washer Rubber Washer (2) Caulking Lip Upper Spacer Assembly Lower Spacer Assembly Thumbscrew Adjustment screw Glass (2)
- Page 3 ASSEMBLY & INSTALLATION INSTRUCTIONS Double Ursa 302507 CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*...
- Page 4 ASSEMBLY & INSTALLATION INSTRUCTIONS Double Ursa 302507 MACHINE SCREWS (Figure 1) GLASS SHIELD (Figure 2) 45136 4 OF 8...
- Page 5 ASSEMBLY & INSTALLATION INSTRUCTIONS Double Ursa 302507 To Install Upper and Lower Spacers. (Figure 3) 1. Using diagram in Figure 4, place marks on the wall to locate the upper and lower spacer assemblies (J & K). Note: Measurements are from the edge of the mounting can of the fixture to the centerline of the spacer.
- Page 6 ASSEMBLY & INSTALLATION INSTRUCTIONS Double Ursa 302507 To Install Lower Glass/Decorative Assembly (Figure 4) 1. Carefully slide glass (N) into lower decorative as- sembly (C) until it settles into bottom bracket (P). It may be necessary to loosen the set screw (O) to allow glass to drop into the bottom bracket (P).
- Page 7 ASSEMBLY & INSTALLATION INSTRUCTIONS Double Ursa 302507 To Install Upper Glass/Decorative Assembly (Figure 5 & 6) 1. Remove screws (T) from side brackets on fixture (A). 2. Carefully slide glass (N) into upper decorative assembly (D). 3. Locate upper rod (R). Insert round end through the decorative assembly (D) until U-shaped piece is aligned with glass (N).
- Page 8 If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product. We hope you enjoy your fixture! * Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
