Hubbardton Forge Halo 302701 Installation Instructions

Installation Instructions
Halo Outdoor Sconces 302701 & 302703
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL
INJURY OR DEATH AND PROPERTY DAMAGE. We recommend installation by a licensed electrician.
This product must be installed in accordance with applicable installation code(s), by a person familiar with the
construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
Please Note: This fixture is designed to be mounted on a standard wall surface and may not be suitable for all
applications. Sconces are to be mounted 4 feet above ground. If installing in a non-wood frame application, we
recommend consulting a qualified builder or electrician.

To Mount Fixture to Wall

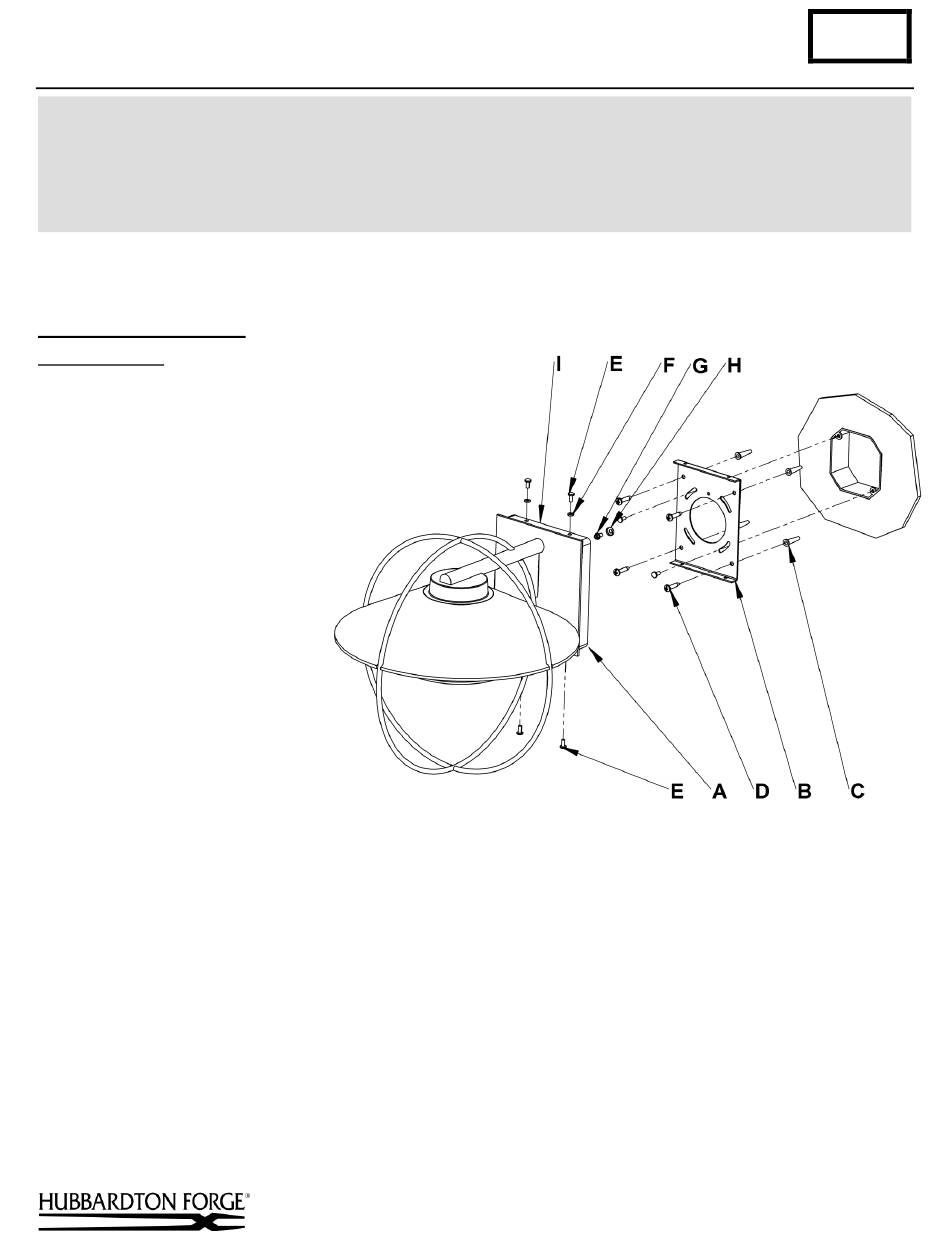

Component Parts

A Fixture Assembly
B Wall Mounting Bracket
C Anchors (4)
D #10 Screws (4)
E #8 Black Screws (4)
F Rubber Washer (2)
G Ground Screw
H Cupped Washer
I Caulking Lip
Caution: Be sure power is off at
the main breaker box prior to
installation.
1. Carefully unpack the fixture
from the carton.
2. Center the wall mount
bracket (B) over the
electrical box being sure to
hold it plumb and level.
With a pencil, mark the
location of all mounting
holes in the wall mount
bracket (B) on the wall behind.
IMPORTANT: Wall mount bracket must be secured to a solidly mounted electrical box and/or a framing member
in at least two locations. Do not depend on drywall anchors alone to support this fixture. If in doubt, contact a
qualified electrician.
Put the wall mount bracket down and drill 1/4" holes in the locations marked on the wall. For holes using anchors,
place the tapered end of the anchors (C) into the holes and gently tap them flush to the wall using a light weight
hammer.
3. Thread the wires in the electrical box through the center hole in the wall mount bracket (B) while moving the
bracket into position. Using the #10 screws (D), screw the bracket (B) securely to the wall. Be careful not to over-
tighten or strip the anchors (C).
4. Hold the fixture assembly (A) close to the wall mount bracket and using suitable wire connectors (not provided),
connect fixture wires to supply wires (white to white and white to black). Ground the mounting bracket using the
green ground screw (G) and cupped washer (H) to secure a pigtail lead to the bracket (B) and connect all ground
wires (bare copper or green to bare copper or green).
Caution: Make sure wire connectors are twisted on securely, and no bare wires are exposed.
(Figures 1 & 2)
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
(Figure 1)
B355
Page 1 of 2
(continued)
34607
