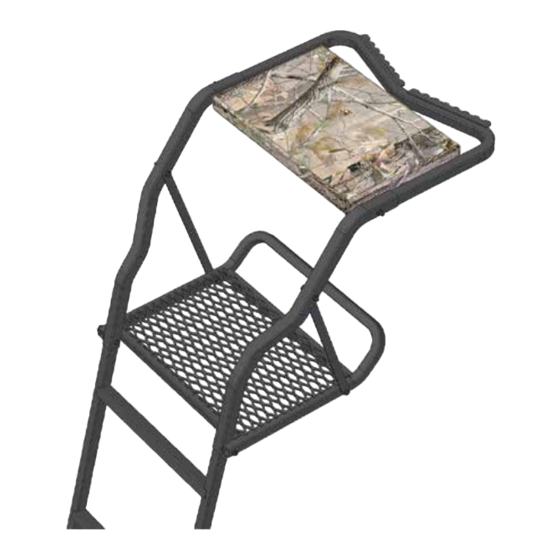

Solo Performer
Ladder Treestand
© 2012 Summit Treestands, LLC
715 Summit Dr. Decatur, AL 35601
(256) 353-0634
info@summitstands.com
www.summitstands.com
WARNING
!
You must fully read, understand and follow these warnings
and instructions (written and video)! Failure to follow these
instructions may cause serious injury or death!!
•
WHEN HUNTING FROM A TREESTAND FALLS CAUSING INJURY OR DEATH CAN OCCUR ANY TIME AFTER LEAVING THE GROUND! FOR
THOSE REASONS ALWAYS USE A FALL ARREST SYSTEM (FAS) COMPRISING A FULL BODY HARNESS AT ALL TIMES AFTER LEAVING THE
GROUND. YOU MUST STAY CONNECTED AT ALL TIMES AFTER LEAVING THE GROUND WHILE USING ANY ELEVATED HUNTING PLATFORM.
SINGLE SAFETY BELTS AND CHEST HARNESSES ARE NO LONGER ALLOWED AND SHOULD NEVER BE USED. IF YOU ARE NOT USING A FULL
BODY HARNESS THAT IS PROTECTING YOU FROM A FALL, DO NOT LEAVE THE GROUND!
•
READ AND UNDERSTAND ALL OF THE MANUFACTURER'S WARNINGS AND INSTRUCTIONS AND USE ALL SAFETY DEVICES PROVIDED.
CONTACT SUMMIT TREESTANDS FOR ANY QUESTIONS. FAILURE TO DO SO COULD RESULT IN INJURY OR DEATH!
•
A SIGNAL DEVICE SUCH A MOBILE PHONE, RADIO, WHISTLE, SIGNAL FLARE OR PERSONAL LOCATOR DEVICE (PLD) MUST BE ON YOUR
PERSON AND READILY AVAILABLE AT ALL TIMES! ALWAYS INFORM SOMEONE OF YOUR HUNTING LOCATION, WHERE THE TREESTAND
WILL BE LOCATED AND THE EXPECTED DURATION OF THE HUNT!
•
DO NOT USE ANY TREESTAND UNLESS YOU ARE IN GOOD PHYSICAL SHAPE AND HAVE NO PHYSICAL LIMITATIONS OR MEDICAL
CONDITIONS WHICH MAY PREVENT YOU FROM SAFELY USING THIS PRODUCT. ALWAYS CONSULT A PHYSICIAN IF YOU HAVE ANY
QUESTIONS ABOUT YOUR PHYSICAL ABILITY TO USE THIS PRODUCT.
•
NEVER USE A TREESTAND WHILE TAKING DRUGS, ALCOHOL OR CERTAIN PRESCRIPTION DRUGS! ALWAYS CONSULT A PHYSICIAN IF YOU
HAVE ANY QUESTION ABOUT TAKING SPECIFIC MEDICATIONS AND USING THIS PRODUCT!
•
NEVER USE A TREESTAND DURING INCLEMENT WEATHER SUCH AS RAIN, LIGHTNING, WINDSTORMS OR ICY CONDITIONS! END YOUR
HUNT AND RETURN TO THE GROUND IF ANY OF THESE INCLEMENT CONDITIONS ARISE.
•
NEVER USE A TREESTAND WHEN FEELING ILL, NAUSEOUS, DROWSY OR DIZZY!
•
BE WELL RESTED AND NEVER HURRY. HURRYING CAUSES ACCIDENTS!
•
CHECK EVERY LADDER SECTION CONNECTION EVERY TIME YOU USE THE STAND. IF ANY LADDER SECTIONS ARE SEPARATING - DO NOT
USE THE STAND!
•
NEVER USE A TREESTAND ON A DEAD, LEANING, DISEASED, LOOSE BARKED TREE, ON A UTILITY POLE OR ON TREES THAT HAVE ANY
OBSTRUCTIONS THAT MAY LIMIT TREESTAND USE! NEVER RELY ON A TREE BRANCH FOR SUPPORT!
•
CHECK THE GROUND UNDER THE LADDER STAND TO MAKE SURE IT IS FIRM AND LEVEL. SLOPING GROUND OR AN UNEVEN SURFACE
(ONE LADDER SECTION ON A ROCK FOR EXAMPLE) CAN CAUSE YOUR STAND TO TILT OR SHIFT AS YOU CLIMB.
•
ALWAYS MAINTAIN THREE POINTS OF CONTACT WHEN YOU CLIMB THE LADDER SECTION OF THIS STAND!
•
NEVER JUMP OR BOUNCE ON A TREESTAND TO SECURE IT TO THE TREE!
•
PULL UP A BOW, BACKPACK, FIREARM OR OTHER EQUIPMENT ONLY AFTER BEING SECURE IN THE TREESTAND. FIREARMS MUST BE
PULLED UP UNLOADED, CHAMBER OPEN AND MUZZLE DOWN!
•
NEVER MODIFY YOUR STAND IN ANY WAY BY MAKING REPAIRS, REPLACING PARTS, OR ALTERING ADDING OR ATTACHING ANYTHING
TO IT EXCEPT IF EXPLICITLY AUTHORIZED IN WRITING BY THE MANUFACTURER!
•
PRACTICE INSTALLING, ADJUSTING AND USING YOUR TREESTAND AT GROUND LEVEL PRIOR TO USING IT AT ELEVATED POSITIONS!
•
INSTRUCTIONS (WRITTEN AND VIDEO) SHOULD BE KEPT IN A SAFE PLACE AND REVIEWED AT LEAST ANNUALLY. IT IS THE RESPONSIBILITY
OF THE TREESTAND OWNER TO FURNISH THE COMPLETE INSTRUCTIONS TO ANY PERSON WHO BORROWS OR PURCHASES THE
TREESTAND! THIS SUMMIT TREESTAND IS DESIGNED TO BE USED AS A COMPLETE SYSTEM - NEVER LOAN OR SELL ONLY A PORTION OF
THIS TREESTAND SYSTEM.
•
BEFORE EACH USE OF YOUR SUMMIT TREESTAND, ALWAYS INSPECT THE TREESTAND AND HARNESS FOR ANY DAMAGE, CRACKS, TEARS,
CABLE WEAR OR ABRASION THAT MAY HAVE OCCURRED IN TRANSPORTING / STORING YOUR TREESTAND. DO NOT USE IF ANY DAMAGE
IS FOUND! CONTACT CUSTOMER SERVICE FOR THE APPROPRIATE REPAIR / REPLACEMENT PROCEDURE!
•
DO NOT LEAVE YOUR TREESTAND OUTDOORS WHEN IT IS NOT BEING USED! ANY STAND TUBING THAT IS ALLOWED TO FILL WITH
RAINWATER AND FREEZE WILL RUPTURE OR BURST - DO NOT USE YOUR TREESTAND IF THIS OCCURS!
You MUST also view the enclosed DVD BEFORE using your new treestand!!
WEIGHT LIMIT
SINGLE USER
300 LBS. X 1 TOTAL*
DO NOT EXCEED THIS LIMIT!
(* Includes all gear)
Stand minimum and maximum tree size: 8-20" diameter
PN 82067
Solo Performer 82067, 11/2012
Advertisement
Related Manuals for Summit Solo Performer
Summary of Contents for Summit Solo Performer
- Page 1 OF THE TREESTAND OWNER TO FURNISH THE COMPLETE INSTRUCTIONS TO ANY PERSON WHO BORROWS OR PURCHASES THE TREESTAND! THIS SUMMIT TREESTAND IS DESIGNED TO BE USED AS A COMPLETE SYSTEM - NEVER LOAN OR SELL ONLY A PORTION OF THIS TREESTAND SYSTEM.
- Page 2 INDEX GENERAL WARNINGS AND PRECAUTIONS, STAND WEIGHT LIMITS PG 1 SECTION 1 - INDEX PG 2 SECTION 2 - PARTS LIST PG 2 SECTION 3 - TOOLS REQUIRED PG 2 SECTION 4 - ASSEMBLY PG 3 - 6 SECTION 5 - SETUP AND USE PG 7 - 10 SECTION 6 - MAINTENANCE AND CARE PG 10...
- Page 3 ASSEMBLY WELDED U BRACKET BOTTOM LADDER SECTION (PN 82067.430) MIDDLE LADDER SECTION (PN 82067.420) LADDER COLUMN 1. Position the Bottom Ladder Section and Middle Ladder Section as 1 3/4” BOLTS, LOCK NUTS - shown in figure 1. The welded U bracket faces the tree when fully assembled.
- Page 4 (PN 82067.200) 1 3/4” BOLTS, LOCK NUTS - WRENCH TIGHTEN NOTICE Summit recommends the use of the SOP Climbing System Accessory with all ladder and hang-on treestands. For more information please visit our website www.summitstands.com or by calling 256- 353-0634.
- Page 5 PLATFORM 1. Position the finished Seat Support and Ladder Assembly as shown in figure 6. Note: SEAT The welded U bracket faces the tree when SUPPORT fully assembled. Slide the Seat Support down TOP LADDER onto the Ladder Assembly and line up the bolt holes.
- Page 6 STABILIZER BAR 1. Position the Female Section of the Stabilizer bar as STABILIZER shown in figure 10. The Stabilizer bar will attach to the FEMALE SECTION welded U Bracket. Slide the bar into the bracket and (PN 82067.450) line up the hole. 2.
- Page 7 SETUP AND USE PLATFORM RATCHET STRAP 1. Attach the Ratchet with Loop End to the yoke tube at location A as shown in figure 17. Put the sewn loop around the tube (figure 18) and then push the ratchet through the loop (figure 19) to create a cinch knot as shown in figure 2.
- Page 8 SETUP WARNING It is required that at least three people initially set up the ladder stand. Always use two helpers! WARNING Check the ground under the ladder stand to make sure it is firm and level. WARNING Never use this ladder stand on dead, leaning, diseased or loose barked trees.
- Page 9 SETUP (continued) 9. Connect the left strap to the right cam lock buckle and connect the right strap to the left cam lock buckle. Pull the free end through the cam buckle as shown in figure 22. Repeat for both cam buckle straps. 10.
- Page 10 - including any area that has been nicked or scratched to the bare metal. • When transporting your Summit Treestand be sure it is securely tied down and be sure no other objects can slid into or hit the treestand possibly causing damage.
- Page 11 It is expressly understood that Summit’s liability for its products, whether due to breach of warranty, negligence, strict liability, or otherwise, is limited to the repair of the product, as stated above, and Summit will not be liable for any other injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use, income, profit, or damage to material, arising in connection with the sale, installation, use of, inability to use, or the repair or replacement of Summit’s products.
- Page 13 FOIS PAR ANNÉE. LA RESPONSABILITÉ DE FOURNIR LES INSTRUCTIONS COMPLÈTES À TOUTE PERSONNE QUI EMPRUNTE OU ACHÈTE LE MIRADOR INCOMBE AU PROPRIÉTAIRE! LE MIRADOR SUMMIT EST FAIT POUR ÊTRE UTILISÉ COMME UN SYSTÈME COMPLET - NE PRÊTEZ OU NE VENDEZ JAMAIS UNE PARTIE DE CE MIRADOR •...
- Page 14 INDEX AVERTISSEMENTS GÉNÉRAUX ET PRÉCAUTIONS, LIMITES DE POIDS DU MIRADOR PAGE 13 SECTION 1 - INDEX P 14 SECTION 2 - LISTES DES PIÈCES P 14 SECTION 3 - OUTILS REQUIS P 14 SECTION 4 - ASSEMBLAGE P 15 - 18 SECTION 5 - INSTALLATION ET UTILISATION P 19 - 22 SECTION 6 - ENTRETIEN ET SOINS...
- Page 15 ASSEMBLAGE SUPPORT EN ‘’U’’ SOUDÉ SECTION IN- FÉRIEURE DE L’ÉCHELLE (PN 82068.430) SECTION DU MILIEU DE L’ÉCHELLE (PN 82068.420) BARRE DE L’ÉCHELLE 1. Placez la section du bas de l’échelle et la section du milieu de 1 3/4” BOULONS, ÉCROU DE l’échelle tel qu’illustré...
- Page 16 SUPPORT POUR SIÈGE 1. Placez les appuis verticaux de gauche et de droite ainsi que la fourche tel qu’illustré à la figure 4. Veuillez noter l’orientation correcte. Les appuis verticaux doivent être pliés en MONTANT leur milieu et la partie dentelée de la fourche devrait être orientée vers le bas.
- Page 17 PLATEFORME 1. Placez le support du siège et l’échelle tel qu’illustré à la figure 6. Note: Le support en ‘’U’’ soudé fait face à l’arbre lorsque SUPPORT SECTION assemblé. Glissez l’armature du siège dans DE SIEGE l’échelle et alignez les trous de boulons. SUPÉRIEURE 2.
- Page 18 BARRE STABILISATRICE 1. Placez la section femelle de la barre stabilisatrice tel SECTION DU qu’illustré à la figure 10. La barre stabilisatrice s’attache STABILISATEUR au support en ‘’U’’ soudé. Glissez la barre dans le FEMELLE support et alignez les trous. 2.
- Page 19 INSTALLATION ET UTILISATION COURROIE POUR PLATEFORME À ROCHET 1. Attachez le rochet avec le bout en boucle au tube de la fourche à l’emplacement A tel qu’illustré à la figure 17. Placez la boucle cousue autour du tube (figure 18) et puis poussez le rochet dans la boucle (figure 19) pour créer un noeud coulant tel qu’illustré...
- Page 20 INSTALLATION AVERTISSEMENT Il est recommandé qu’au moins trois personnes mettent initialement le mirador à échelle en place. Veuillez toujours utiliser deux assistants AVERTISSEMENT Vérifiez le sol sous le mirador à échelle pour vous assurer qu’il soit ferme et de niveau. AVERTISSEMENT N’utilisez jamais ce mirador à...
- Page 21 INSTALLATION (suite) 9. Connectez la courroie gauche à la bouche à came droite et connectez la courroie droite à la boucle à came gauche. Tirez le bout libre dans la boucle à came tel qu’illustré à la figure 22. Répétez pour chaque courroie des boucles à...
- Page 22 • Lors du transport du mirador Summit, assurez-vous qu’il soit bien attaché et assurez-vous que d’autres objets ne puissent frapper le mirador et l’endommager. Si vous endommagez une partie du mirador Summit, contactez votre détaillant autorisé Summit le plus près ou le manufacturier pour obtenir la procédure corrective correcte et / ou un remplacement des pièces de votre mirador.
- Page 23 (B) Limitation de responsabilité Il est expressément entendu que la responsabilité de Summit pour ses produits, que ce soit dû à une violation de la garantie, de la négligence, de la responsabilité sans faute ou autrement, est limitée à la réparation du produit, tel que mentionné ci-haut, et Summit ne sera pas responsable pour toute blessure, perte, dommage ou frais encourus, que ce soit une cause directe ou indirecte, notamment de la perte d’usage, de salaire ou dommage matériel...
