SUMMIT
YOU MUST READ THIS OWNERS GUIDE
BEFORE OPERATING YOUR GAS GRILL
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open fl ames.
3. Open lid
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fi re department.
Leaking gas may cause a fi re or explosion
which can cause serious bodily injury or
death, or damage to property.
WARNING
1. Do not store spare liquid propane
cylinder within 10 feet (3m) of this
appliance.
2. Do not store or use gasoline or other
fl ammable liquids or vapors within 25
feet (8m) of this appliance.
®

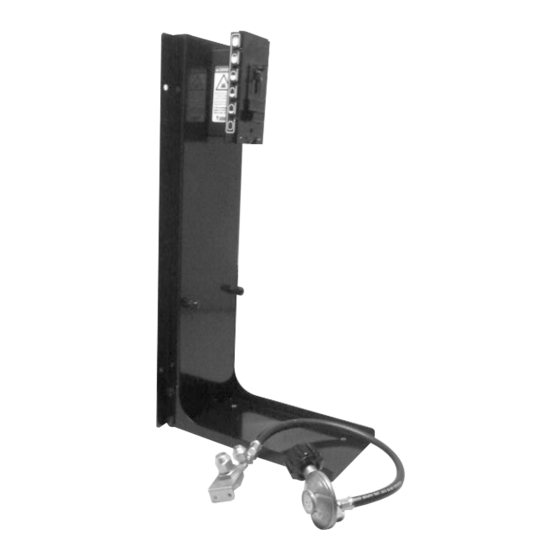

BUILT-IN LP TANK ENCLOSURE KIT
®
Summit
Built-In LP Tank Enclosure Kit
(Model #: 21287)
THESE ACCESSORIES MAY BE PURCHASED SEPARATELY.
#
WARNING: Follow all leak-check
procedures carefully in this manual prior
to barbecue operation. Do this even if the
barbecue was dealer-assembled.
WARNING: Do not try to light this
appliance without reading the "Lighting"
Instructions section of this manual
NOTICE TO INSTALLER: These instructions
must be left with the owner and the owner
should keep them for future use.
THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
42390
42390 US 03/22/04
LP
US English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 21287 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Summit 21287

Summary of Contents for Summit 21287

  • Page 1 (8m) of this appliance. ® ® Summit Built-In LP Tank Enclosure Kit (Model #: 21287) WARNING: Follow all leak-check procedures carefully in this manual prior to barbecue operation. Do this even if the barbecue was dealer-assembled. WARNING: Do not try to light this appliance without reading the “Lighting”...
  • Page 2 Failure to follow the Dangers, Warnings and Cautions contained in this Owner's Manual may result in serious bodily injury or death, or in a fi re or an explosion causing damage to property. Do not store a spare or disconnected liquid propane cylinder under or near the barbecue. Improper assembly may be dangerous.

  • Page 3: Warranty

    OPERATING WARNING: Only use the Weber outdoors in a well-ventilated area. Do not use in a ga- rage, building, breezeway or any other enclosed area. ® WARNING: Your Weber Tank Enclosure Kit shall not be used under an unprotected combustible roof or over- hang.
  • Page 4 Typical 20 LP propane gas supply Instal- lation We strongly recommend that you use the Summit Tank Cabinet (#21280) for installations using a 20 lb LP cyl- inder, mounted remotely in an “island” structure. The Summit ® Built-In Tank Cabinet is a CSA listed acces- sory for installing a remote mounted 20 lb LP cylinder, in an “island”...
  • Page 5 LP cylinder that must be used with the Summit ® Built-In gas grill. The hose and regulator in the kit (#21287) is listed as part of the CSA listed Summit In gas grill. DANGER Use of any other hose and regulator assembly could...

  • Page 6: Parts List

    ASSEMBLY PARTS LIST Hose and regulator - 1 Tank stand - 1 Tank stand base - 1 Tank Scale - 1 1/4-20 nut - 6 Nylon washer - 12 1/4-20 x 1/2" bolt - 6 Cylinder glide - 2 1/2" Flare Gasket - 2 3/8"...
  • Page 7 MOUNTING THE LP TANK BRACKET Mount the LP tank bracket to the right hand side of the enclosure opening using non corrosive hardware.. Mounting holes are provided on the sides and bottom of your LP tank bracket. Be sure to mount the bracket securley to the enclosure before use. MOUNTING HARDWARE NOT INCLUDED.

  • Page 8: Connect Gas Supply

    (part # 36311) available from your dealer or call Customer Service at 1-847-446-1071. 2) Uncap one fl are fi tting from the 90º Connection located inside the Summit ® Built-In Tank Cabinet (#21280). 3) Use the 1/2" fl ared gasket to ensure proper seal.
  • Page 9 CONNECTING THE LIQUID PROPANE CYLINDER WARNING: Make sure that the LP cylinder valve is closed. Close by turning valve clockwise. DANGER Do not use an open fl ame to check for gas leaks. Be sure there are no sparks or open fl...

  • Page 10: Check For Gas Leaks

    WARNING: Check the hose before each use of the grill for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the grill. ® Replace using only Summit authorized replacement ® hose. Contact the Summit Built-In Customer Service at 1-800-446-1071.
  • Page 11 REFILLING THE LIQUID PROPANE CYLINDER We recommend that you refi ll the LP cylinder before it is completely empty. Removal of the LP cylinder 1) Close cylinder valve (turn clockwise). 2) Unscrew regulator coupling by turning counterclockwise, by hand only. 3) Loosen cylinder lock wing nut and turn cylinder lock up out of the way.
  • Page 12 Liquid Propane (LP) Cylinder(s) • The joint where the hose connects to the LP cylinder must be leak tested each time the LP cylinder is reconnected. For example, test each time the LP cylinder is refi lled. • Be sure the regulator is mounted with the small vent hole pointed downward so that it will not collect water.
