Summit 85251 Manual

Adjustable Gun Rest
© 2014 Summit Treestands, LLC
715A Summit Dr. Decatur, AL 35601
(256) 353-0634
info@summitstands.com
www.summitstands.com
WARNING
!
Never sit on this gun rest or attempt to use it as a climbing aid!
1

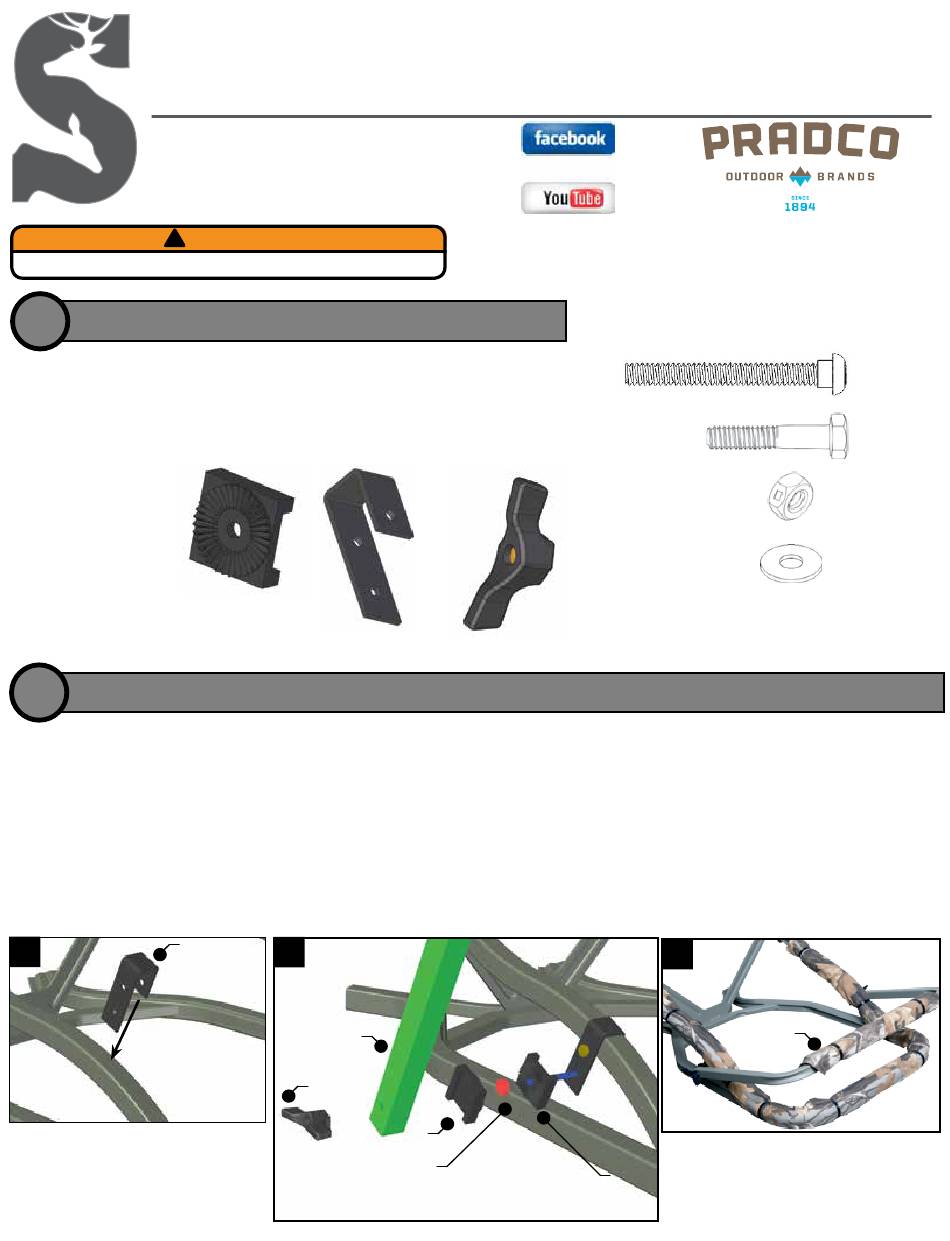

PARTS LIST
BOX CONTENTS
PN
70224
21071
10544
2
ASSEMBLY
1. Position the Gun Rest Mounting Bracket as shown in figure 1. The bracket MUST be placed at least 3" up the arm to provide clearance for
the platform when the stand is packed together. The long side of the bracket should be on the outside of the stand.
2. Secure the bracket using one 1 3/4" bolt and lock nut. The bolt MUST run from the outside in as shown in
figure 2 (bolt is in yellow). Repeat for the other side.
3. From the inside, position the 2 1/2" carriage bolt (shown in blue) inside the bracket. Over this bolt, slide one Gun Rest Adjustment Bracket,
one Neoprene Washer (red), one more Gun Rest Adjustment Bracket and then the Gun Rest Bar (bright green). See figure 2.
4. Secure the bar with the supplied knob.
5. At the other bracket location, combine one Adjustment Bracket, a Neoprene washer and the last Adjustment Bracket. Slide this assembly
between the Gun Rest tube and the Mounting Bracket lining up the bolt hole. Insert the carriage bolt through the entire assembly from the
inside out. Secure with the knob.
6. Position the 16" Arm pad on the gun rest bar as shown in figure 3. Place the pad around the bar and use the zipper to secure.
1
MOUNTING
BRACKET
(PN 20431)
1 3/4" BOLT, LOCK NUT
- WRENCH TIGHTEN
DESCRIPTION
GUN REST TUBE
16" CAMO ARM PAD
GUN REST HARDWARE KIT
20431
2
GUN REST
BAR
(PN 40104)
KNOB
(PN 10660)
ADJUSTMENT
BRACKET
(PN 10544)
21071 - GUN REST HARDWARE PACKET
PN
10632
QTY
1
10601
1
1
10612
10660
10633
10544
10660
20431
NEOPRENE
ADJUSTMENT
WASHER
BRACKET
(PN 10633)
(PN 10544)
PN 85251, 85252
DESCRIPTION
2 1/2" CARRIAGE BOLT, 1/4x20
1 3/4" BOLT, 1/4x20
LOCK NUT, 1/4x20
NEOPRENE WASHER
GUN REST ADJUSTMENT BRACKET
KNOB
GUN REST MOUNTING BRACKET
3
16" FOAM PAD
(PN 70224)
FORM# 10892-14, 2/2014
QTY
2
2
2
2
4
2
2
