Vendor: S000242
ASSEMBLY INSTRUCTIONS

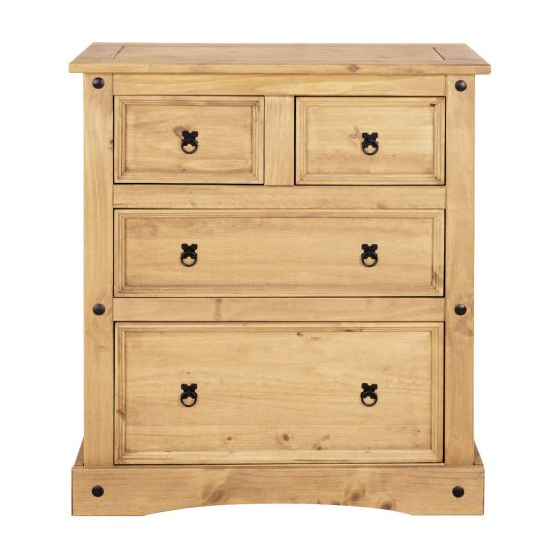

CORONA 2+2 DRAWER CHEST
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR CORONA 2+2
DRAWER CHEST.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ASSEMBLY INSTRUCTIONS:
Please check contents and read instructions carefully before commencing assembly.
To avoid damages assemble the item on a soft, clean surface.
Assemble in the room of use.
HEALTH & SAFETY:
DO NOT use this item if any parts are missing, damaged or worn.
DO NOT use this item unless all fixings are secured.
Always use on a level, even surface.
It is recommended that two people handle and assemble the item.
Keep small parts out of the reach of children.
CARE & MAINTENANCE:
This product is manufactured in pine which is a wood with natural characteristics including knots, grains,
clusters or indentations.
On unpacking the item you may notice an odour due to the production process, however, this will disappear
after a period of time.
DO NOT place the item next to a radiator or direct sunlight as this item is susceptible to temperature
change. It is recommended to maintain an even room temperature with no sudden fluctuations.
For general cleaning use a duster or damp cloth (almost dry) not wet – do not use soap and water,
detergents, aerosol sprays or any polish as the use of these materials would invalidate any claims.
You may wish to re-treat the surface to maintain the original finish. This can be done using block wax (un-
perfumed). Please follow the manufacturer's instructions carefully.
DO NOT place the item onto wet or damp flooring as staining may occur to the floor.
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the item as this will damage the base.
Keep any sharp objects away from the item.
www.birlea.com
Page 1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the CORONA 2+2 DRAWER CHEST and is the answer not in the manual?

Questions and answers

Summary of Contents for Birlea CORONA 2+2 DRAWER CHEST

  • Page 1 Vendor: S000242 ASSEMBLY INSTRUCTIONS CORONA 2+2 DRAWER CHEST IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR CORONA 2+2 DRAWER CHEST. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. ASSEMBLY INSTRUCTIONS: Please check contents and read instructions carefully before commencing assembly.
  • Page 2 Vendor: S000242 Parts List Hardware List Part Description Part Description Top Panel 3.3 x 35 mm Screw Left Panel 8 x 25 mm Wooden Dowel Right Panel Handle Front Frame 3/16 x 5/8 Screw Back Crossbeam 10 x 10 mm Tack Side Plinth Stud Front Plinth...
  • Page 3 Vendor: S000242 Step 1: Insert hardware part B using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Attach four drawer runners (8) to the left panel (2) and right panel (3) using hardware part A and a screwdriver (not provided).
  • Page 4 Vendor: S000242 Step 3: Attach the back crossbeam (5) to the left panel (2) and right panel (3) using hardware part A and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 4: Attach the front frame (4) using hardware part A and a screwdriver (not provided).
  • Page 5 Vendor: S000242 Step 5: Attach the top panel (1) using hardware part A and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 6: Attach the support block (18) to the centre drawer runner (17) using hardware part A and a screwdriver (not provided).
  • Page 6 Vendor: S000242 Step 8: Attach the side plinths (6) using hardware part A and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 9: Attach the front plinth (7) using hardware part A and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 7 Vendor: S000242 Step 10: Attach the back panel (9) using hardware part E and a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 11: Assemble the small drawer components using hardware parts C, D and G with a screwdriver (not provided).
  • Page 8 Vendor: S000242 Step 12: Assemble the medium drawer components using hardware parts C, D and G with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 13: Assemble the large drawer components using hardware parts C, D and G with a screwdriver (not provided).
  • Page 9: Additional Information

    • If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. • Why don’t you send us photos of your assembled furniture to info@birlea.com...
