R911310379 / 02 | Rexroth IndraControl VCP 08
Interfaces

7.1.1.3 Diagnostics

7.1.2

USB (X9, X10)

7.1.2.1 Cable

Electric Drives and Controls | Bosch Rexroth AG
Ethernet diagnostics LEDs are located at the side of the operating
device.

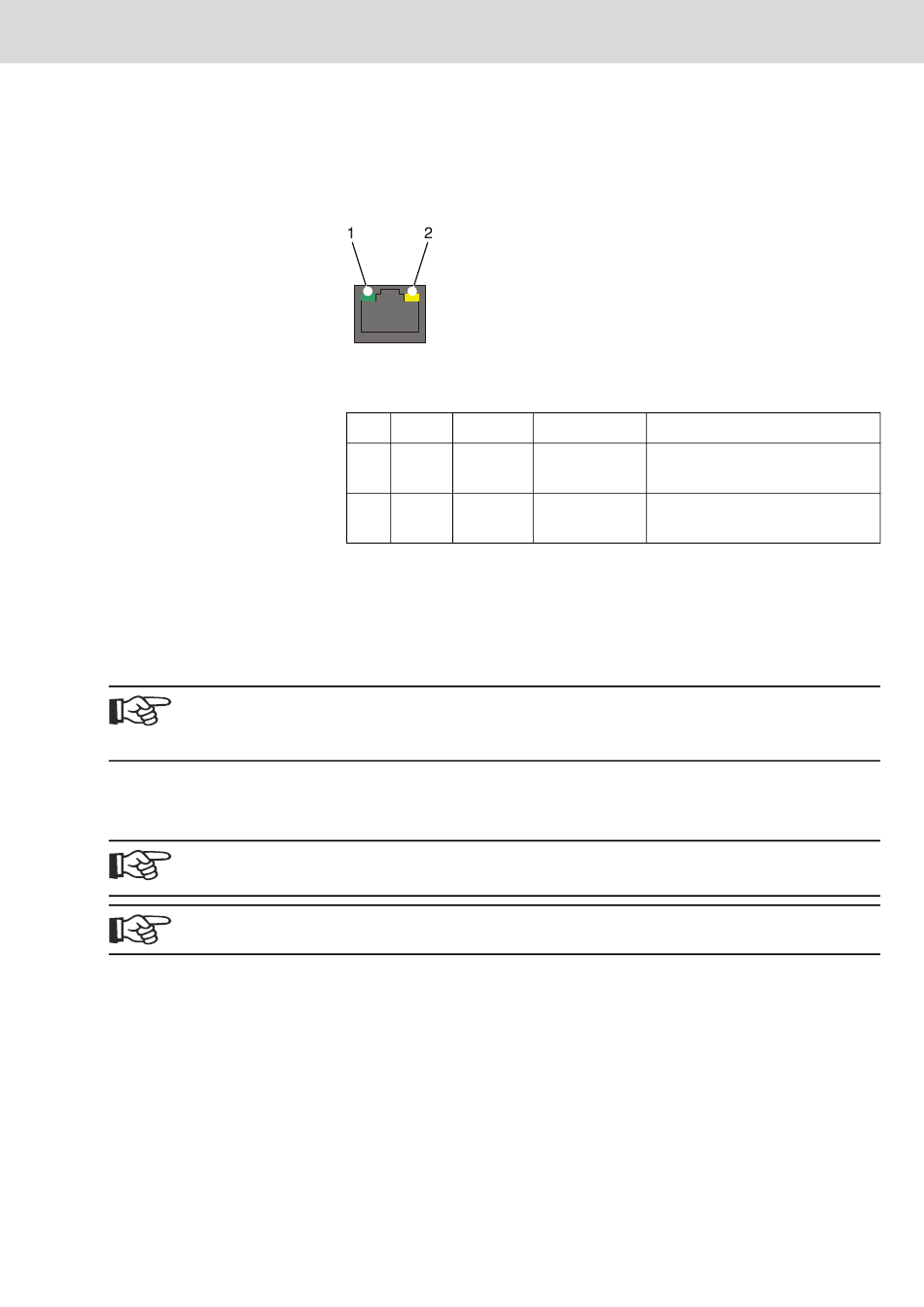

Fig. 7-3: Position of the Ethernet diagnostics LEDs

No. Color State
1 Green ON
2 Yel- ON
low

Fig. 7-4: Function of the Ethernet diagnostics LEDs

Two host interfaces are available on the operating device.
Using input devices not suitable for industrial use (e.g. keyboard,
mouse) may decrease safety of operation. This includes input devices
intended for home and office use.
For the specification of a suitable cable, please refer to the „Universal
Serial Bus Specification Rev. 2.0".
The maximum cable length for the cable used is 2.5 m (8.202 feet).
Designation Function
XMT Sending Ethernet Data Tele-
gram
RCV Receiving Ethernet Data
Telegram
7-3
