Datum DT1H1VR Operating Instructions Manual

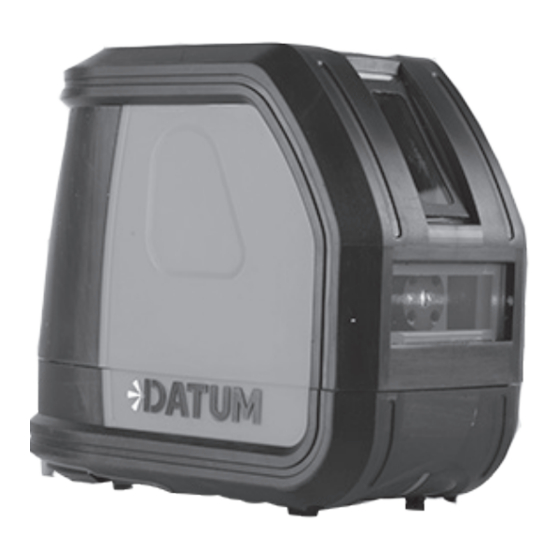

Crossline laser level
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

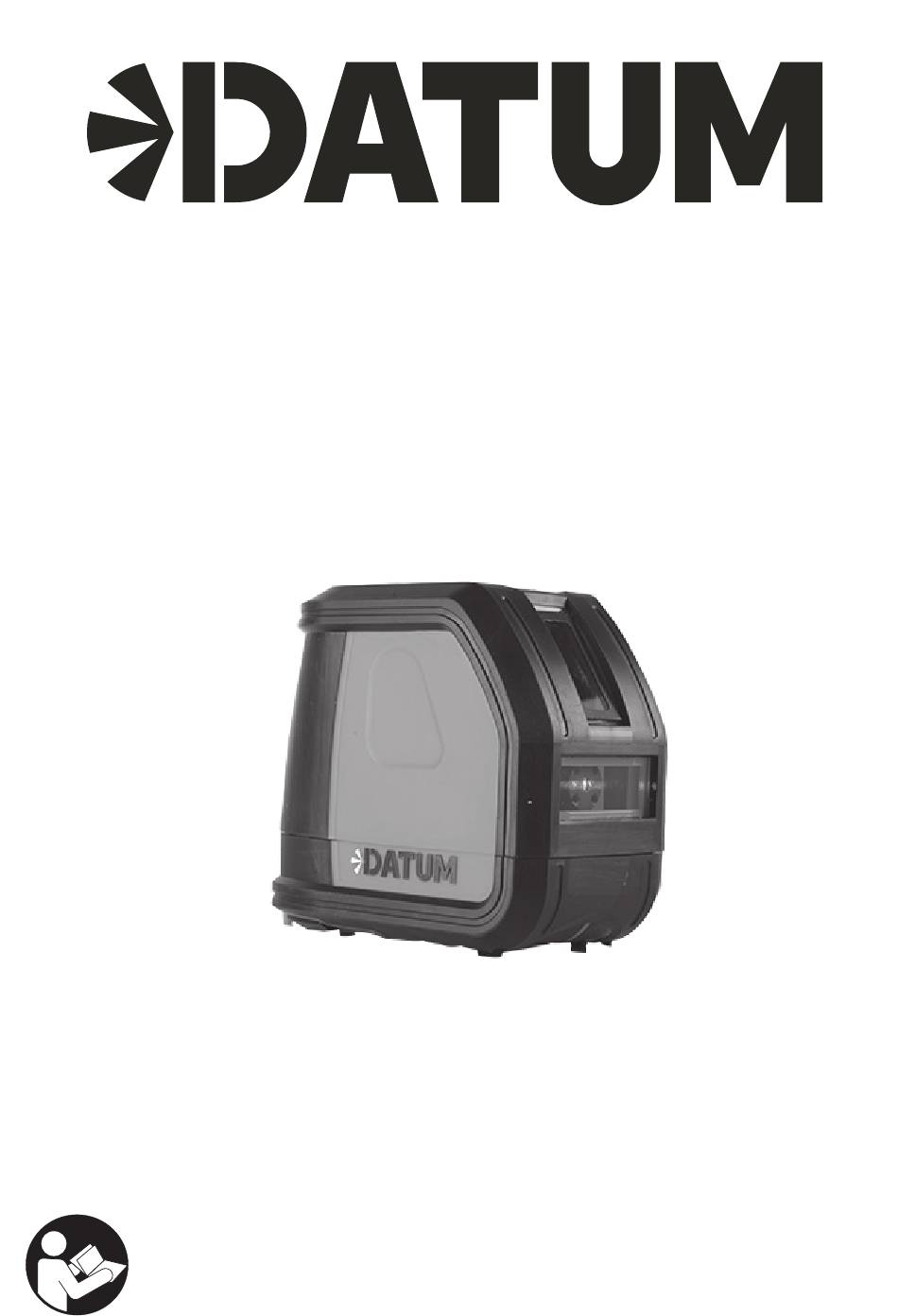

CROSSLINE LASER LEVEL
MODEL NO.: DT1H1VR
TO PREVENT SERIOUS INJURY, READ
AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
OPERATING
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT1H1VR and is the answer not in the manual?

Questions and answers

Related Manuals for Datum DT1H1VR

Summary of Contents for Datum DT1H1VR

  • Page 1 CROSSLINE LASER LEVEL MODEL NO.: DT1H1VR OPERATING TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND ALL WARNINGS INSTRUCTIONS AND INSTRUCTIONS BEFORE USE.

  • Page 2: Hazard Signal Word Definitions

    Optional (Part No. DT01REC sold seperately) DATUM is constantly improving its products. All information in this manual is based on the latest product information available at the time of printing. The specifications outlined herein are subject to change without prior notice or obligation.

  • Page 3: General Safety Rules For Operation

    GENERAL SAFETY RULES FOR OPERATION Read all safety warnings, instructions, illustrations and specifications WARNING provided with this laser level. Failure to follow all instructions listed below may result in personal injury. Save all warnings and instructions for future reference. • Do not stare into beam regardless of distance.

  • Page 4: Component Identification

    COMPONENT IDENTIFICATION Power switch / pendulum lock Control panel Vertical laser output window Horizontal laser output window 1/4” Tripod thread 5/8” Tripod thread Battery compartment Wall bracket Magnets on back of the bracket 10. 1/4” thread CROSSLINE LASER LEVEL...
  • Page 5 OPERATION INSTRUCTION BATTERY PLACEMENT • Your laser level requires 3 AA batteries. Use only new, high-quality battery for best results. • Locate battery compartment at the bottom of the laser. Insert batteries according to the symbols and polarity. • When the battery voltage is low, the indicator light will start flashing in which the batteries must be replaced.

  • Page 6: Calibration Check

    CALIBRATION CHECK It’s possible for you to check the calibration of the laser. Calibration by yourself is only approximate and the accuracy of the calibration will depend on the care with which you proceed. TO CHECK THE LEVEL Checking the horizontal pitch calibration of the laser requires 2 walls, which must be at least 5 metres apart.

  • Page 7: Maintenance And Service

    CHECKING THE HORIZONTAL LINE Position the device about 5 m from a wall and switch on the cross laser. Mark point B on the wall. Turn the laser cross approx. 2.5 m to the right and mark point C. Check whether the horizontal line from point C is level with point B to within ±...

  • Page 8: Warranty Information

    Any cost incurred by you in bringing the product to the place of purchase will be borne by you. Calibration and repair service Datum recommends to check instrument calibration at least once a year or on as needed basis. Warranty does not cover calibration service. For calibration or repair, please visit your place or purchase.
