Summary of Contents for Datum DL32X

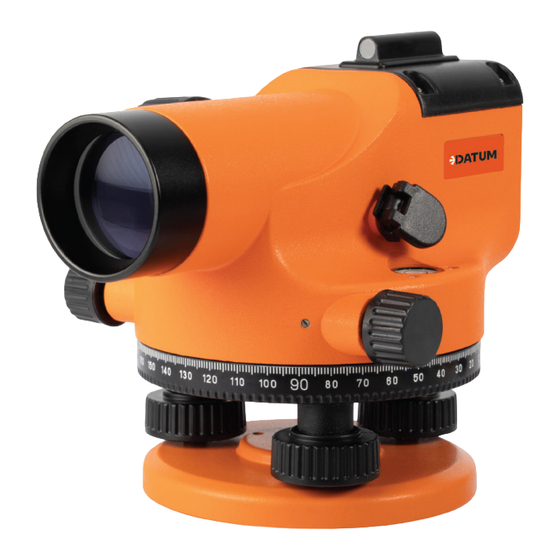

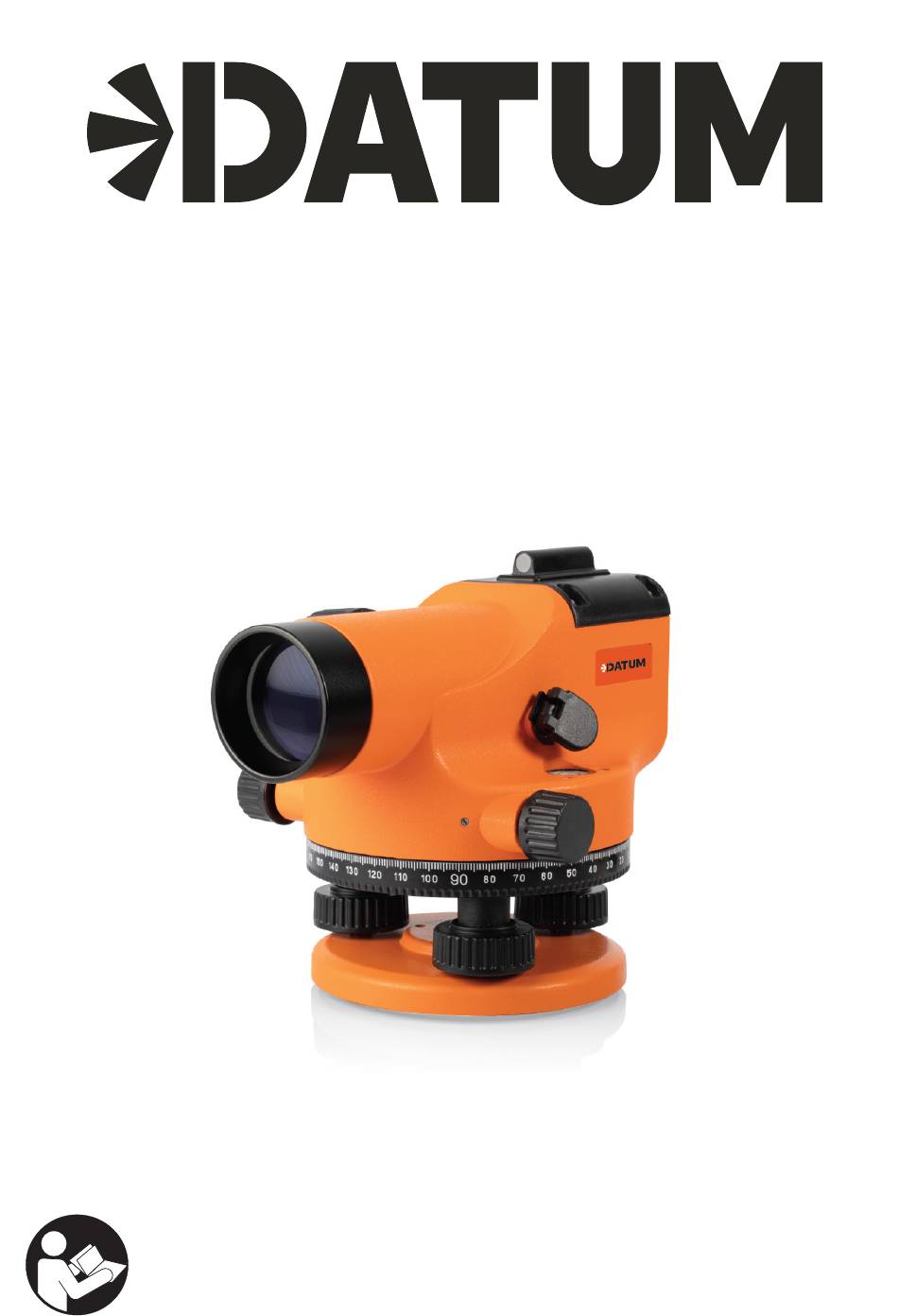

- Page 1 32X OPTICAL LEVEL MODEL NO.: DL32X OPERATING TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND ALL WARNINGS INSTRUCTIONS AND INSTRUCTIONS BEFORE USE.
- Page 2 TABLE OF CONTENT SPECIFICATIONS ......................3 HAZARD SIGNAL WORD DEFINITIONS ..............3 GENERAL SAFETY RULES FOR OPERATION ............4 COMPONENT IDENTIFICATION ................5 OPERATION INSTRUCTION ..................6 SET UP - MOUNTING ON TRIPOD ................6 SET UP - ALIGN THE TOOL ..................6 POINTING AND FOCUSING ..................6 MEASUREMENT - HEIGHT ..................6 MEASUREMENT - DISTANCE ..................6 MEASUREMENT - ANGLES ..................6...
- Page 3 IP RATING IP54 DATUM is constantly improving its products. All information in this manual is based on the latest product information available at the time of printing. The specifications outlined herein are subject to change without prior notice or obligation.
- Page 4 GENERAL SAFETY RULES FOR OPERATION Read all safety warnings, instructions, illustrations and specifications CAUTION provided with this measuring tool. Failure to follow all instructions listed below may result in property injury. Save all warnings and instructions for future reference. • Check the levelling and indication accuracy of the measuring tool each time before using and after longer transport of the measuring tool.
- Page 5 COMPONENT IDENTIFICATION Bubble level mirror Optical peep sight Objective lense Horizontal circle Levelling screw Bubble level Adjusting screws for bubble level 5/8” Tripod thread (bottom base) Focusing knob 10. Horizontal drive screw 11. Field of view 12. Plumb bob Stadia Lines OPERATING MANUAL...
- Page 6 OPERATION INSTRUCTION SET UP - MOUNTING ON TRIPOD • Set up your tripod as levelled and stable as possible. • Securely place the measuring tool on the tripod via the 5/8” thread. SET UP - ALIGN THE TOOL • Align the measuring tool by adjusting the levelling screws (5) so that the air bubble is positioned in the centre of the bubble level as illustrated on the right.
- Page 7 ACCURACY CHECK CHECKING THE CIRCULAR BUBBLE LEVEL • Adjust the levellings screws (5) so that the air bubble is centred. • Rotate the measuring tool 180°. If the air bubble is no longer in the centre of the bubble vial, the bubble level must be re-adjusted. •...
- Page 8 Any cost incurred by you in bringing the product to the place of purchase will be borne by you. Calibration and repair service Datum recommends to check instrument calibration at least once a year or on as needed basis. Warranty does not cover calibration service. For calibration or repair, please visit your place of purchase.
