- Page 1 ROTARY LASER DUAL GRADE MODEL NO.: DTR30R DTR30G OPERATING TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND ALL WARNINGS INSTRUCTIONS AND INSTRUCTIONS BEFORE USE.
-
Page 2: Table Of Contents
TABLE OF CONTENT SPECIFICATIONS ......................3 HAZARD SIGNAL WORD DEFINITIONS ..............3 GENERAL SAFETY RULES FOR OPERATION ............4 CONTENT CHECKLIST ....................5 COMPONENT OVERVIEW ..................6 LASER CONTROL DESCRIPTION ................7 DETECTOR CONTROL DESCRIPTION ..............8 PRE-OPERATION SET UP ..................9 OPERATION - LASER INSTRUMENT ................10 USING REMOTE......................12 OPERATION - LASER DETECTOR ................12 CALIBRATION CHECK ....................13 MAINTENANCE AND SERVICE .................13... -
Page 3: Specifications
DT03REC DT04REC DATUM is constantly improving its products. All information in this manual is based on the latest product information available at the time of printing. The specifications outlined herein are subject to change without prior notice or obligation. HAZARD SIGNAL WORD DEFINITIONS Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 4: General Safety Rules For Operation
GENERAL SAFETY RULES FOR OPERATION Read all safety warnings, instructions, illustrations and specifications WARNING provided with this instrument. Failure to follow all instructions listed below may result in personal injury. Save all warnings and instructions for future reference. • Do not stare into beam regardless of distance. •... -
Page 5: Content Checklist
CONTENT CHECKLIST Heavy duty tool case with EVA foam Akaline battery pack 20m Wireless remote control Staff mounting bracket for detector Wide band laser detector Laser glasses Dual grade rotary laser Laser target Ni-MH battery charger (indoor only) 10. Ni-MH battery pack OPERATING MANUAL... -
Page 6: Component Overview
COMPONENT OVERVIEW Light house Battery charging jack (for Ni-MH battery only) Rotating laser module Down plumb dot output window Laser control panel with 5/8” tripod thread - for horizontal Up plumb dot output window operation Rubber feet - for vertical operation 10. -
Page 7: Laser Control Description

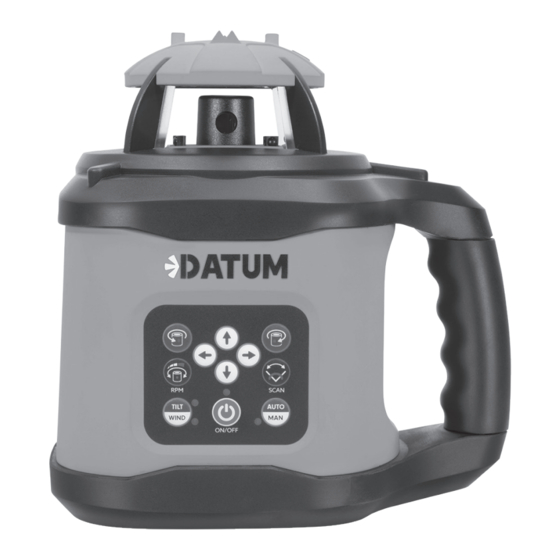

LASER CONTROL DESCRIPTION BUTTON DIRECTION OF USE A - Counter-clockwise In scanning mode, press this button to move the scanning beam in a Rotation Control counter-clockwise motion. B - Clockwise Rotation In scanning mode, press this button to move the scanning beam in a Control clockwise motion. -
Page 8: Detector Control Description
DETECTOR CONTROL DESCRIPTION Speaker LED indicator lights Bubble level Laser sensor panel LCD screen (front/back) Staff mounting bracket BUTTON DIRECTION OF USE I - On/Off Detector On/Off button. J - Volume Control Off-Medium-High K - Screen Backlight Press this button to activate the backlight for extra visibility. L - Accuracy Setting Change detection bandwidth. -
Page 9: Pre-Operation Set Up
When the battery is running low, all LED indicator lights on the control panel will start flashing in which the battery pack must be recharged. Only use charger supplied by DATUM to charge the Ni-MH batteries. Using a battery charger not recommended by DATUM can destroy the batteries. -
Page 10: Operation - Laser Instrument
Note: If the unit has been bumped or moved and the laser recommences spinning the instrument may not be at the original level position. Please recheck your RL/datum point. RPM SPEED CONTROL Rotation speed can be controlled by pressing RPM button on the instrument. In automatic mode, laser rotation speed starts at 600rpm. - Page 11 If the instrument is knocked or interfered with while the alarm is activated, the laser will stop rotating and start flashing. In this case, check and adjust the instrument set up. It’s also recommended to check DATUM point when the unit re-levels. •...
-
Page 12: Using Remote
USING REMOTE Your instrument comes with an infrared remote allows you to operate the laser at a distance up to 20m. The remote is used to control the same functions as on the laser control panel except on/off, tilt alarm and wind mode. To operate your laser with the remote: •... -
Page 13: Calibration Check
CALIBRATION CHECK It’s possible for you to check the calibration of the laser. It’s recommended to check the calibration of the laser before performing any levelling task. Calibration by yourself is only approximate and the accuracy of the calibration will depend on the care with which you proceed. -
Page 14: Troubleshooting
Ni-MH 4 x 1.2V 4000mAh Ni-MH 4 x 1.2V 4000mAh Part #: DTR30R Part #: DTR30G MADE MADE DATUM - 20 THACKRAY ROAD PORT MELBOURNE VIC 3207 IN CHINA DATUM - 20 THACKRAY ROAD PORT MELBOURNE VIC 3207 IN CHINA ROTARY LASER LEVEL... -
Page 15: Optional Accessories
OPTIONAL ACCESSORIES DATUM offers a range of accessories that are compatible with our laser levels. They can be purchased separately and add more flexibility to get your job done. HEAVY DUTY WALL BRACKET (DT05AC) DOME HEAD LASER TRIPOD (DT1730D) FLAT HEAD LASER TRIPOD (DT1730F) -
Page 16: Warranty Information
Any cost incurred by you in bringing the product to the place of purchase will be borne by you. Calibration and repair service Datum recommends to check instrument calibration at least once a year or on as needed basis. For calibration or repair service (not covered under warranty), please visit your place of purchase.
