PROPER INSTALLATION IS IMPORTANT. IF YOU NEED ASSISTANCE, CONSULT A CONTRACTOR,
ELECTRICIAN OR TELEVISION ANTENNA INSTALLER (CHECK WITH YOUR LOCAL BUILDING SUPPLY
OR HARDWARE STORE FOR REFERALS). TO PROMOTE CONFIDENCE, PERFORM A TRIAL
1. Determine where you are going to locate both the rooftop sensor and the Nor'easter read-out.
There are lugs on the rooftop end of the 2-wire cable and bare ends on
the indoor connection. Run the cable from the indoor read-out, to the

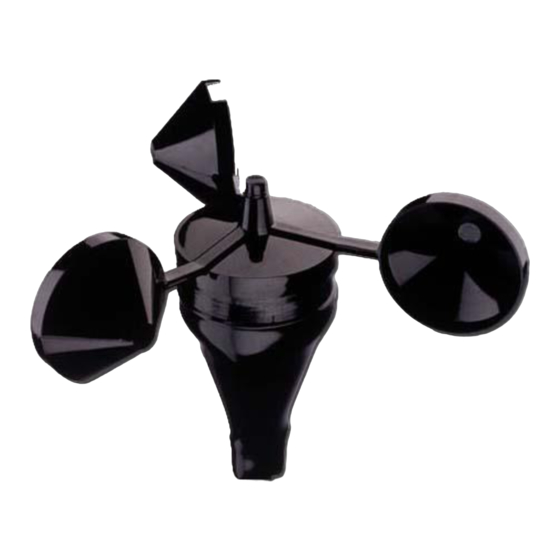

rooftop wind speed generator.
2. Outside, feed the terminal lug end of the 2-wire cable through the
rubber boot and connect the lugs to the brass terminal posts on bottom
of the wind speed generator (polarity does not matter) and secure them
using the brass hex nuts provided in the hardware pack.
(Important: DO NOT adjust the hex nuts that are already on the sensor).
5. Follow the instructions supplied with the antenna mount and secure the
mast to the mount.
6. Secure the cable to the mast with cable ties or electrical tape so that
rubbing on the mast will not damage it. Secure the wire to the house
using cable clips (DO NOT staple the cable). Form a drip loop where
the wire enters the hole through an exterior wall. Feed an appropriate
length of cable into the house and caulk the hole when done.
1.800.561.8187
NOR'EASTER
INSTALLATION
WIRING BEFORE INSTALLATION.
3. Slide the straight stub mast through
the rubber boot and insert the mast
into the bottom of the wind speed
generator. Secure the generator to
the straight stub mast using the
supplied cotter pin. Coat all wire
connections with a silicone sealant
and slip the boot over the sensor.
4. Using the two stainless steel hose
clamps, attach the straight stub
mast to an appropriate base mast
NOTE: For correct wind speed
readings, the generator should be
mounted a minimum of 8 feet above
your roof, as shown in the diagram.
www.
information@itm.com
.com
Advertisement
Table of Contents
Related Manuals for Maximum NOR’EASTER
Summary of Contents for Maximum NOR’EASTER
- Page 1 NOR’EASTER INSTALLATION PROPER INSTALLATION IS IMPORTANT. IF YOU NEED ASSISTANCE, CONSULT A CONTRACTOR, ELECTRICIAN OR TELEVISION ANTENNA INSTALLER (CHECK WITH YOUR LOCAL BUILDING SUPPLY OR HARDWARE STORE FOR REFERALS). TO PROMOTE CONFIDENCE, PERFORM A TRIAL WIRING BEFORE INSTALLATION. 1. Determine where you are going to locate both the rooftop sensor and the Nor’easter read-out. There are lugs on the rooftop end of the 2-wire cable and bare ends on the indoor connection.
- Page 2 NOR’EASTER INSTALLATION (cont.) 7. Bring the Nor’easter read-out and the 2-wire rooftop cable to the location where you wish to install it. At the back of the readout, locate the two colored wires with bare ends. Insert one of the colored wires into one of the supplied splice connectors.
- Page 3 IMPORTANT ADDITIONAL INFORMATION Components: Along with the indicator, the following components are included with this instrument: Wind speed generator: To insure a clear unobstructed path for the wind to the wind speed generator, it should be mounted on a mast at least 8-10’ above the highest object on your roof. Remember, your roof is also an obstruction and it usually requires at least 8’...
- Page 4 Electrical Damage – Common Causes & Recommended Prevention Electrical damage can be caused by many different factors. Below are some of the more common causes and some suggested methods of minimizing potential problems. Common Causes: Storm Activity – lightening in your area can do damage to your instruments in different ways. The obvious way is due to a direct or nearby strike.
