PROPER INSTALLATION IS IMPORTANT. IF YOU NEED ASSISTANCE, CONSULT A CONTRACTOR, ELECTRICIAN
OR TELEVISION ANTENNA INSTALLER (CHECK WITH YOUR LOCAL BUILDING SUPPLY, OR HARDWARE STORE
FOR REFERRALS). TO PROMOTE CONFIDENCE, PERFORM A TRIAL WIRING BEFORE INSTALLATION.
1

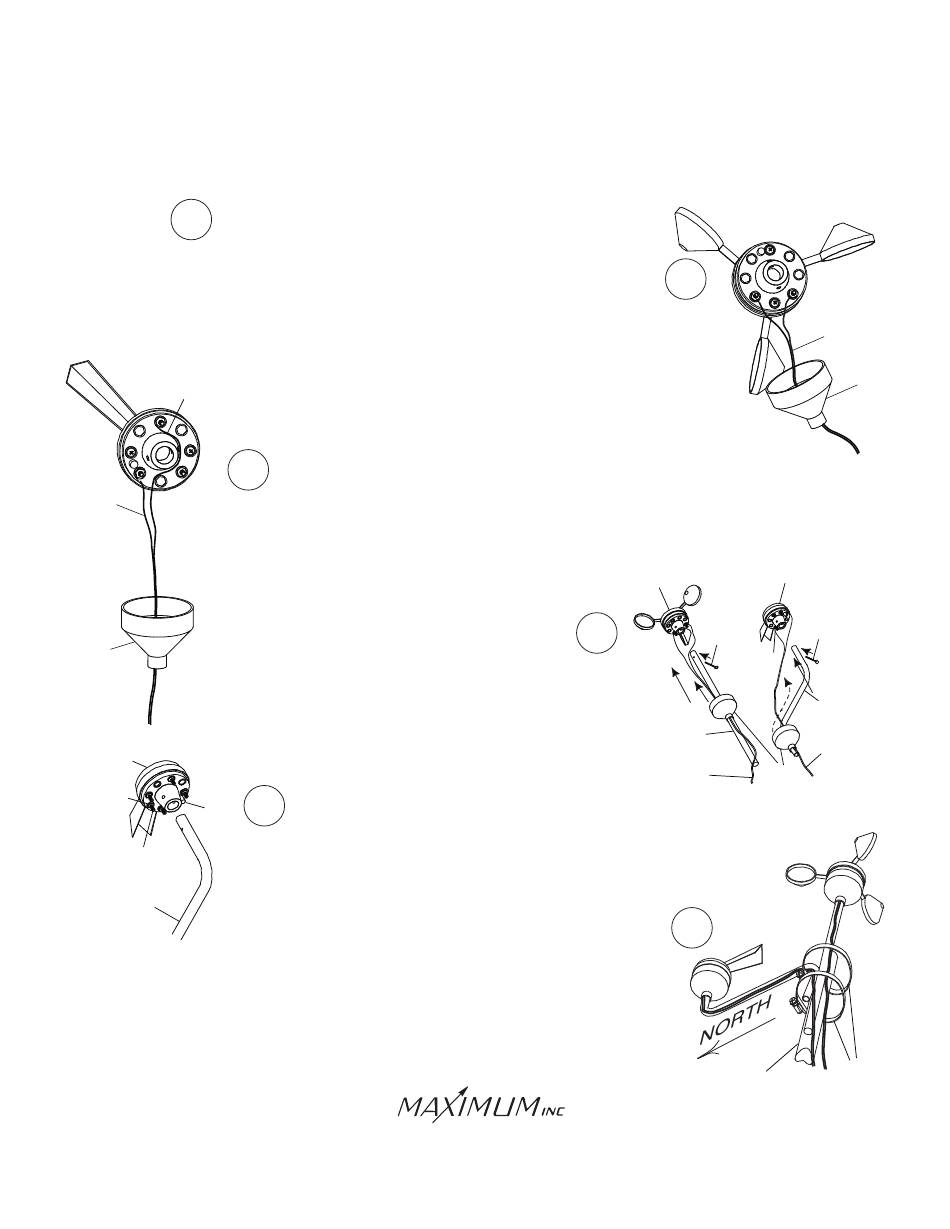

Feed the teminal lug end of the black and white wires through
one of the rubber boots and connect the lugs to the terminals on the
bottom of the wind speed sensor using the brass nuts provided. The polarity
does not matter.
RED
WIRE
4
5
GREEN
WIRE
BOOT
Slide the stub masts through the rubber boots and
insert the stub masts into the bottom of the sensors. Secure
with the cotter pins. Coat all wire connections with silicone
sealant and slip the boots over the sensors.
WIND DIRECTION
SENSOR
TERMINAL
#4
BOSS
TERMINAL #4
MUST ALIGN
WITH Z-MAST
ARM
Secure the sensors and stub masts to your antenna mast (not supplied) with
the two hose clamps. Align the wind-direction Z-mast arm to true North.
Radio Shack and similar stores have a selection of tall masts and roof
mounting brackets. Choose a mount that best suits your location and
provides at least eight feet of vertical clearance above objects on the roof.
Shop for AEMC products online at:

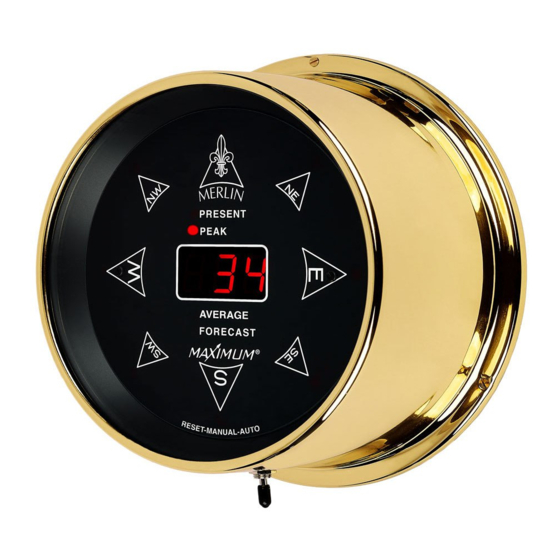

MERLIN
INSTALLATION
Determine where you are going to locate both the
rooftop sensors and the read-out.
(Do NO
T adjust the nuts that are already on the sensor).
F
eed the terminal lug end of the red and g
3
rubber boot. Connect the red wire to the terminal marked #4.
Connect the green wire to the terminal marked #5. The polarity MUST be
observed. Use the hex nuts provided. (Do NOT adjust the nuts that are
already on the wind direction sensor).
4A
When connecting the wind direction sensor
to the Z-mast, make certain that terminal #4
is aligned with the Z-mast arm. If the sensor
is not installed in this manner your wind
direction readings will be incorrect.
www.
4
ShopAEMC
Page 1
.ca
2
reen wires through the other
WIND DIRECTION
WIND SPEED
SENSOR
SENSOR
COTTER
PIN
4
STRAIGHT
STUB MAST
BOOT
BLACK &
WHITE WIRE
5
TALL
MAST
1.800.561.8187
BLACK AND WHITE
WIRES
BOOT
COTTER
PIN
Z-STUB
MAST
GREEN &
RED WIRE
HOSE
CLAMPS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Merlin and is the answer not in the manual?

Questions and answers

Mary Moore
May 13, 2025

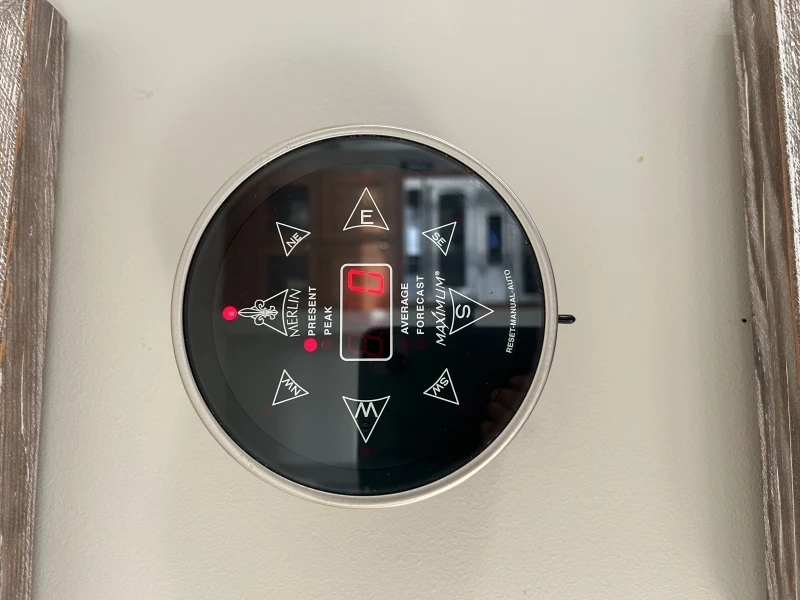

My device hasn't moved off 0 for several days. The receptor is on the roof, and because I lost my husband recently, he is not here to examine it up there.

User image 6823c5b6c88a2
1 comments:
Mr. Anderson
May 21, 2025

If the Maximum Merlin device is not moving off 0 for several days, possible causes include:

1. Faulty wind sensor or wiring: Check the sensor and wire by disconnecting the black and white wires from the back of the indicator and measuring resistance with an ohmmeter. A correct reading should be between 500 and 1,000 ohms. If the reading is outside this range, the sensor or wire is faulty.

2. Indicator fault: If the ohmmeter reading is correct, then the indicator itself may be at fault.

3. Improper sensor installation: If rooftop sensors are not mounted at least 8–10 feet above the highest object on the roof, wind turbulence can affect readings.

4. Power issues: If the AC adapter is not correctly connected or if there was a power outage, the display could be blank or incorrect. Try resetting by unplugging the AC adapter, waiting 15 seconds, and plugging it back in.

These checks can help identify the source of the problem.

This answer is automatically generated

Summary of Contents for Maximum Merlin

  • Page 1 MERLIN INSTALLATION PROPER INSTALLATION IS IMPORTANT. IF YOU NEED ASSISTANCE, CONSULT A CONTRACTOR, ELECTRICIAN OR TELEVISION ANTENNA INSTALLER (CHECK WITH YOUR LOCAL BUILDING SUPPLY, OR HARDWARE STORE FOR REFERRALS). TO PROMOTE CONFIDENCE, PERFORM A TRIAL WIRING BEFORE INSTALLATION. Determine where you are going to locate both the rooftop sensors and the read-out.
  • Page 2: Installation

    When Merlin first starts up it will perform a brief self-test and then go to the "Present" function mode. SCREW Reset all memory functions (see operating instructions). Resetting gives Merlin a fresh starting point for your reference. ShopAEMC Page 2 www.
  • Page 3: Operation

    6 seconds. At that point you will see the display reset itself. SETTING UNITS OF MEASUREMENT Merlin can be set to display the wind speed in miles per hour, knots, kilometers per hour Select Units of Measurment or meters per second.
  • Page 4 Setting the switch to Auto does not erase stored data. You do not need to time the 6 second reset time, MERLIN will blank out the display to indicate that the memory has been erased.
  • Page 5: Troubleshooting

    MERLIN TROUBLE SHOOTING (WIND DIRECTION) Perform the latch up corrections as previously detailed. The unit will no w perfor m the self test, all LEDS will light f or about 3 seconds. If y ou do not hav e time to check that all LEDS light, repeat the procedure.
  • Page 6 MERLIN TROUBLE SHOOTING (WIND SPEED) VOLT-OHMETER Select Units of Measuret AC ADAPTOR (NO POLARITY) FROM AC ADAPTER FROM ROOF TOP SENSORS BLACK AND WHITE WIRES IF THERE IS WIND..Disconnect the black and white wires from the back of the indicator and connect them to volt-ohmeter as shown.
  • Page 7 MERLIN INFORMATION FOR THE MERLIN USER Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 8 AC Adaptor: This instrument requires its own AC Adaptor. Due to the various power requirements of each Maximum instrument, attempting to run more than one instrument on a single adaptor could cause improper operation and/or damage to the instrument(s) thereby voiding your 5-year warranty.
  • Page 9 Electrical Damage – Common Causes & Recommended Prevention Electrical damage can be caused by many different factors. Below are some of the more common causes and some suggested methods of minimizing potential problems. Common Causes: Storm Activity – lightening in your area can do damage to your instruments in different ways. The obvious way is due to a direct or nearby strike.
