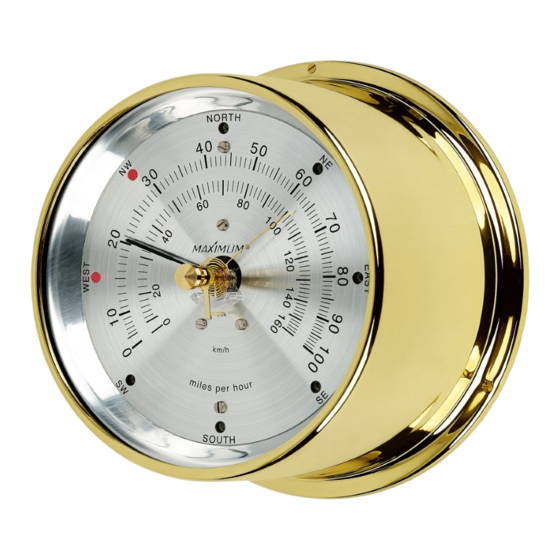

Maximum MAESTRO Manual

Maximum MAESTRO Manual

Wind gust measuring instrument
Hide thumbs Also See for MAESTRO:

Advertisement

Quick Links

THIS MANUAL IS DESIGNED TO LEAD YOU STEP BY STEP THROUGH THE PROCEDURES REQUIRED
TO TEST, INSTALL AND USE YOUR WIRELESS MAESTRO. BY FOLLOWING THESE PROCEDURES AND
SETTING UP THE SYSTEM CORRECTLY IN THE BEGINNING, YOU WILL BE ABLE TO ENJOY ALL THE
FEATURES OF YOUR WIRELESS MAESTRO FOR YEARS TO COME. WE STRONGLY SUGGEST THAT
YOU PERFORM A TRIAL WIRING OF YOUR WIRELESS MAESTRO PRIOR TO FINAL INSTALLATION.
Locate the
NiCad
Batteries and Battery charger, then charge the
batteries according to the charger instructions. You will need them
later. The
NiCad
batteries will be kept charged by the solar panel
when installed in the transmitter. They should not need replacement
for two to three years. When they do need replacement use 1000
milliamp/hour
NiCad
batteries. (Do
batteries.
)
POWER
TERMINALS
12 VOLT
POWER
SUPPLY
RED
RED
Feed the
YELLOW
and
YELLOW
Wind Transmitter through the small access hole in one of the
black rubber boots. Using the solid brass nuts from the
Hardware Pack, attach the wires to the two terminals on the
Wind Speed Sensor (no polarity). Do NOT adjust the nuts that
are already on the sensor.
MAESTRO
WIRELESS
INST
NOT
use Alkaline or NiMH
2
MAESTRO
RECEIVER
BROWN
BROWN
YELLOW
YELLOW
BLACK
BLACK
GREEN
GREEN
WHITE
WHITE
BROWN
wires from the Wireless
BROWN
30 Barnet Boulevard
New Bedford, MA 02745
(508) 995-2200
ALLA
TION
You now need to wire your receiver to your display unit.
Connect the
RED
and
RED
to the power terminals on the back of the MAESTRO (the
polarity does not matter). Connect the wires from the 12 volt
power supply to the same power terminals (again the polariity
does not matter). Connect the
to TERMINAL #1 and the BLACK wire from the RECEIVER to
TERMINAL #2 on the rear of the MAESTRO meter.
RECEIVER WIRING
WHITE.............to...............TERMINAL #1
WHITE
BLACK
............to...............TERMINAL #2
RED
.................to........Power (no polarity)
RED
GREEN
............to........Power (no polarity)
GREEN
YELLOW
.........to......Rainwatch (optional)
YELLOW
BROWN
...........to......Rainwatch (optional)
BROWN
3
BRASS
NUT
YELLOW
YELLOW
WIRES
Page 1
1
GREEN
wires from the RECEIVER
GREEN
WHITE
wire from the RECEIVER
WHITE
BRASS
NUT
YELLOW
AND
YELLOW
WIRES
BOOT
SMALL HOLE
IN BOOT
AND
BROWN
BROWN
BROWN
BROWN
WIRELESS
TRANSMITTER

Advertisement

loading
Need help?

Need help?

Do you have a question about the MAESTRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Maximum MAESTRO

  • Page 1 THIS MANUAL IS DESIGNED TO LEAD YOU STEP BY STEP THROUGH THE PROCEDURES REQUIRED TO TEST, INSTALL AND USE YOUR WIRELESS MAESTRO. BY FOLLOWING THESE PROCEDURES AND SETTING UP THE SYSTEM CORRECTLY IN THE BEGINNING, YOU WILL BE ABLE TO ENJOY ALL THE FEATURES OF YOUR WIRELESS MAESTRO FOR YEARS TO COME.
  • Page 2: Installation

    MAESTRO WIRELESS INST ALLA TION BRASS Feed the terminal lug end of the five-conductor cable through the other rubber boot and connect the lugs to the terminals on the bottom of the wind-direction sensor BOSS with the brass nuts from the Hardware Pack. Do NOT adjust the nuts that are already on the sensor.
  • Page 3 MAESTRO WIRELESS INST ALLA TION WIRELESS TRANSMITTER Open the battery compartment by removing the stainless steel screws in the cover. Insert the two 1000 Milliamp TEST LIGHT Ni-Cad batteries that have been fully charged per the charger instructions. The test light in the wireless transmitter will blink once to indicate that the batteries have been installed properly.
  • Page 4 WIND DIRECTION LIGHTS Perform a test of your wireless MAESTRO. Spin the cups on the wind sensor and a speed should be indicated on the dial (there will be a brief delay). Slowly rotate the vane on the wind direction sensor and the lights indicating wind direction should change (again, there will be a brief delay).
  • Page 5 MAESTRO WIRELESS INSTALLATION CHIMNEY TRIPOD MOUNT MOUNT VENT-PIPE MOUNT A mounting mast and bracket for your particular situation will need 8 FEET to be purchased. Radio Shack and home supply stores often have a selection of masts and mounting brackets. The ideal mounting...
  • Page 6 MAESTRO WIRELESS INSTALLATION SCREW RECEIVER HOLE CABLE-HOLE CABLES 12 VOLT POWER SUPPLY SCREW WOOD PANEL Mount the brass instrument meter directly over the cable hole that is also used to route power to the instrument. For the cleanest installation, we recommend making a hole in the wall large enough to insert the wireless receiver.
  • Page 7 MAESTRO TERMINAL #1 (IN) to MINI-MAX TERMINAL #3 (OUT) WHITE B. Connect the BLACK wire from MAESTRO TERMINAL #2 (COM) to MINI-MAX TERMINAL #2 (COM) Connect the wires from the 12 VOLT POWER SUPPLY to the MAESTRO power terminals (no polarity). 30 Barnet Boulevard New Bedford, MA 02745...
  • Page 8 RECEIVER to TERMINAL #5 of the RAINWATCH. Connect the wires from the 12 VOLT POWER SUPPLY to terminals 1 and 2 of the RAINWATCH (no polarity). Connect the wires from the other 12 VOLT POWER SUPPLY to the power terminals on the MAESTRO (no polarity).
  • Page 9: Operation

    LIGHTS in the dial will light continuously and the reading will be one third the actual wind speed (75mph = 75 X 3 = 225mph). The MAESTRO will stay in triple mode until the wind drops below 150mph. 30 Barnet Boulevard...
  • Page 10: Troubleshooting

    LED s SYMPTOM: -The pointer is in the 3 o’clock position -The central LED’s are flashing -The (Maestro) primary direction LED’s are illuminated REMEDY: -Check all wire connections (Refer to installation diagrams) -Re-boot the system by unplugging the power supply, wait 30 seconds, plug it back in.
  • Page 11 (Instrument recognizes the receiver, but the receiver does not recognize the sensor(s).) MAESTRO MINI-MAX SYMPTOM: -Maestro needle points to 0 MPH and the North LED is illuminated. -Mini-Max needle points to 32 F (or 0 C) REMEDY: -Test the batteries in each external SENSOR/TRANSMITTER and replace if necessary.
  • Page 12 -Put TRANSMITTER(S) into TEST MODE by pressing the TEST BUTTON in the battery compartment of TRANSMITTER. This should cause the LED on the receiver to flash RED every 2 seconds. -If the instrument continues to display the error code, call Maximum for further assistance. 30 Barnet Boulevard...
  • Page 13 -Put TRANSMITTER(S) into TEST MODE by pressing the TEST BUTTON in the battery compartment of the TRANSMITTER. This should cause the LED on the receiver to flash RED every 2 seconds. -If the instrument continues to display the error code, call Maximum for further assistance. 30 Barnet Boulevard...
  • Page 14 RAIN TRANSMITTER circuit board back to covering only one pin of the 2-pin terminal (it does not matter which pin is covered). Re-install the batteries and cover. -If the instrument continues to display the error code, call Maximum for further assistance. 30 Barnet Boulevard...
  • Page 15: Fcc Notice

    WIRELESS FCC NOTICE Warning: Changes or modifications to this equipment not expressly approved by Maximum, Inc. in writing as the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a CLASS B Digital Device, pursuant to Part 15 of the FCC Rules.
