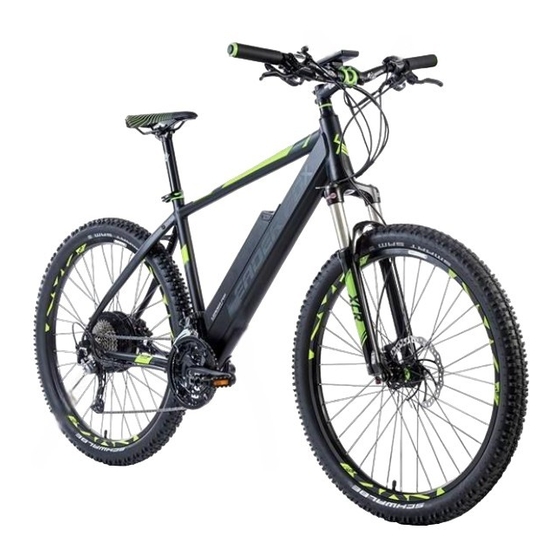

- Page 1 Electric Bicycle Operating Instructions Under the law, the dealer is obliged to attach the LEADER FOX Electric Bicycle Operating Instructions to every product E – BIKE POWER RIDE Swan Barnet...
- Page 3 Introduction Dear users, Please read carefully all the information regarding your E-LF product to ensure optimal functioning of your e-bike. The following text containing a comprehensive description will provide you with information on all aspects and details (including installation, setting up and general use of the display) regarding the use of our display.
- Page 4 Factors influencing the electric bicycle range 1. Rolling resistance of the tyres. Leader Fox e-bikes are fittet with tyres with low rolling resistance and increased resistance to puncture. It is also important that the tyres are inflated properly. Therefor, if the tyres of your electric bicycle are underinflated, the range will decrease.
-
Page 5: Safety Instruction
Safety instruction Battery: Do not throw the battery into fire. Do not throw the battery into water. Do not use the battery for other appliances. It has been made specifically for this model. Do not dismantle or modify the battery. Do not connect the positive and negative poles of the battery. - Page 6 Battery Battery charging and maintenance: Charge the battery in a dry enviroment to avoid short-circuit damage. Charge the battery to at least 60% of the capacity once every 3 months even when the bicycle is not used. Do not cover the battery or the charger. Do not leave the battery constantly connected to the power source.
- Page 7 If the charge indicator shows that the battery is discharged, there is still a minimum voltage level in it which protects it against damage but is not enough to power the electric bicycle. Recharge the battery as soon as possible. Never leave the battery fully discharged, it could results in its damage. If you switch on the battery by POWER button the rear light will switch on too.
-
Page 8: Lcd Display
LCD display Product: Intelligent LCD display APT TFT850C Supplier: Tianjin APT Development Cop., Ltd. Electrical parameters: Battery supply 36V Rated operating current 40mA Max operating current 100 mA Off leakage current < 1 uA Maxoutput current to controller 100mA – Operating temperature 20 ~ 70 °C –... - Page 9 TFT screen instruction: Battery indicator of capacity RT Speed –indicator of speed mode(RT, MAX, AVG) 15.5 – speed indicator 1 assist –level PAS, 0 (off) 7 (max. assist) Power – performance Trip –indicator of mileage mode CLK - clock Maximal range: Maximal range is set with fully charge battery and flat terrain and little bit of headwind.
- Page 10 Controller Controller description:...
- Page 11 Assembly instructions Display assembly: Please pay attention to the tightening torque of screws. Damage caused by excessive tightening torque or incorrect assembly / disassembly is not covered by warranty. A –controller clamping jaw Open the controller clamping jaw and place it on handlebars in your chosen position. Use an Allen wrench to tighten the locking screw M3x8.Tightening torque: 1 Nm...
- Page 12 Connector description: 1 –Red wire: Anode (24V/36V) 2 –Blue wire: Power cord to the controller 3 –Black wire: GND 4 –Green wire: RxD (controller -display) 5 –Yellow wire: TxD (display -controller)
- Page 13 Control Turning on the electrical system of the e-bike Before switch on of the system please check electrical wiring. Switch on display with press and short hold (1,5 second) POWER button. Display will automatically turns off if it is not used for a while. Can be set range 0 ~ 9 minutes (or OFF). After ride turns off e-bike in the same way.
- Page 14 Speed and mileage mode switch Short press POWER button can change the speed and mileage mode Km/h 256.8 00:53:50 TRIP TIME Headlight/Backlight On/Off Press and hold UP button for 1 second can turn on/off the headlight and the screen will switch to the corresponding mode.
- Page 15 Parameter setting By double press POWER button (interval less than 0,3 second) can get into setting menus. Press UP/DOWN buttons to change the parameter setting, press POWER button toswitch to next item. Double press POWER button will exit from menu. Display will automatically quit menu when there is no operation for 30 seconds.
- Page 16 Auto Off Press UP/DOWN button to change the auto power off time, from 1 to 9 the number represent time (minutes) to shutdown, default value is 5 minutes. MENU MENU Display Setting Display Setting System Metric System Metric Brightness ||||| Brightness ||||| Auto off...
- Page 17 Battery Ind Press UP/DOWN button to change the battery indicator Voltage/Percentage/Off (napětí/kapacita v procentech/vypnuto). MENU MENU MENU Display Setting Display Setting Display Setting System Metric System Metric System Metric Brightness ||||| Auto Brightness ||||| Auto Brightness ||||| Auto 5min Scenes 5min Scenes 5min...
- Page 18 Clock Clock setting, press POWER button get into the clock setting menu, press UP/DOWN button to set Year/Month/Day/Hour/Min/Sec. MENU Display Setting Display Setting Display Setting Clock Clock System Metric Brightness || ||| Auto off 5min Scenes Digital Year 2015 Year 2015 Battery Ind Voltage Pow Month...
-
Page 19: Maintenance
Maintenance Regular maintenance: - maintain all components of the electric bicycle clean - use only the recommended and tested cleaning materials - regularly lubricate the chain with suitable oils - in winter, clean the electric bicycle after each ride and pay increased attention to removing salt from battery contacts and other connectors - while handling the electric bicycle, make sure the cables of the electric system are not damaged. -
Page 20: Possible Problems And Their Solutions
Possible problems and their solutions In case of system failure perform its diagnostics or contact your dealer. The control LCD display is not on: - always make sure the battery is charged - check whether the battery is inserted correctly, whether the battery switch is on - check the connections of the control unit and the display The motor does not start when the walk assistance button is pressed - check the connection of the motor cable (at the motor and the control unit) - Page 21 Warning When there is a problem with the electric bicycle, it can show error messages. LCD display will show the icon and an error code will be displayed on the speed display. Error codes are marked from 01 E~FF E; see their meaning in the table below.
- Page 22 Electric set warranty Complaint procedure: Submit any complaints concerning the electric set or the battery to your dealer. When filing a complaint, submit a proof of purchase and a warranty certificate with the registered serial number of the battery and indicate the reason for the complaint and a description of the defect. Wrranty conditions: 24 months for electric bicycle components –...
- Page 23 Warning If you do not understand any of the points in these Operating Instructions, please contact the dealer for explanation. Please read the whole manual! Do not lend the e-bike to persons not briefed in its use and operation. Complaints resulting from improper handling will not be accepted.
- Page 24 Enjoy many pleasant and safe kilometres on your new electric bicycle. Your Leader Fox Team Czech brand of electric bicycles. BOHEMIA BIKE Address Na Pankráci 1724 14000 Praha 4 - Pankrác Development, design and manufacturing Okružní 697 České Budějovice 37004 Phone: 388 314 885 Email: info@leaderfox.cz...
