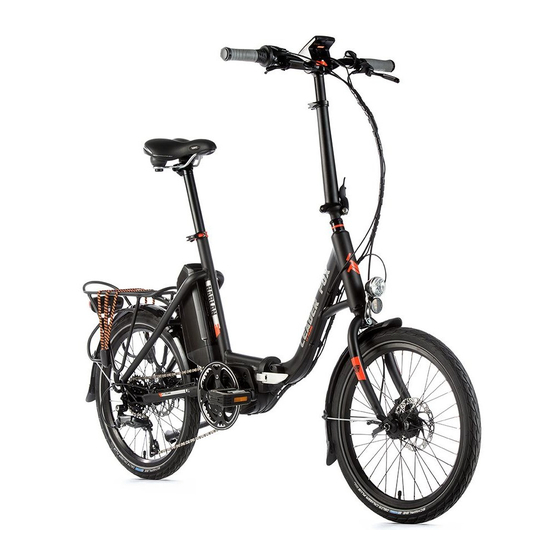

- Page 1 Electric Bicycle Operating Instructions Under the law, the dealer is obliged to attach the LEADER FOX Electric Bicycle Operating Instructions to every product E – BIKE POWER RIDE Harlan...
- Page 2 Introduction Dear users, Please read carefully all the information regarding your E-LF product to ensure optimal functioning of your e-bike. The following text containing a comprehensive description will provide you with information on all aspects and details (including installation, setting up and general use of the display) regarding the use of our display.
- Page 3 Factors influencing the electric bicycle range 1. Rolling resistance of the tyres. Leader Fox e-bikes are fittet with tyres with low rolling resistance and increased resistance to puncture. It is also important that the tyres are inflated properly. Therefor, if the tyres of your electric bicycle are underinflated, the range will decrease.
- Page 4 Electric set The system uses monitoring of torque, monitoring of speed of the pedal assist system and monitoring of real speed of wheels. The system uses a dual protection feedback for measuring the speed signal to ensure safety and reliabilityof the system. Speed sensor is used for a more comfortable and smoother ride, with less effort on the rider It is highly efficient with low power consumption, long range, low noise levels, and smooth operation.
- Page 5 Dimensions of the power unit:...
-
Page 6: Safety Instruction
Safety instruction Battery: Do not throw the battery into fire. Do not throw the battery into water. Do not use the battery for other appliances. It has been made specifically for this model. Do not dismantle or modify the battery. Do not connect the positive and negative poles of the battery. - Page 7 Battery Battery charging and maintenance: Charge the battery in a dry enviroment to avoid short-circuit damage. Charge the battery to at least 60% of the capacity once every 3 months even when the bicycle is not used. Do not cover the battery or the charger. Do not leave the battery constantly connected to the power source.
- Page 8 If the charge indicator shows that the battery is discharged, there is still a minimum voltage level in it which protects it against damage but is not enough to power the electric bicycle. Recharge the battery as soon as possible. Never leave the battery fully discharged, it could results in its damage. In the case, that the battery will be turned on more than 30 min and bike will not be used, the battery will be automatically switched off.
-
Page 9: Lcd Display
LCD display Display parameters: Power – 36V / 48V Nominal current – 10 mA Maximum operating current – 30 mA Tripping current – < 1 uA Operating current for switches – 50 mA Operating temperature – - 18 ~ 60 % Waterproof mark –... - Page 10 Signification of speed mode: Speed – real speed at a given moment MAXS – maximum achieved speed AVG – average speed Km/Mile: depends on user preference Intelligent battery status indicator: Thanks to the usage of optimal algorithm, stable indicator shows the battery level without fluctuation. Automatic light switch: The lights on your electric bicycle automatically switch on/off according to specific lighting conditions.
- Page 11 Description of the display: A – maintenance warning B – menu C – speed display D – Indication of speed mode E – Error message F – Mileage indicator G – Level of assist H – Walk assistant I – Lights indicator, it is displayed only when the lights are switched on. J –...
- Page 12 Controller Controller description: A – up B – down C – lighting D – switch ON/OFF E – mode...
-
Page 13: Assembly And Disassembly
Assembly and disassembly Display assembly: Please pay attention to the tightening torque of screws. Damage caused by excessive tightening torque or incorrect assembly / disassembly is not covered by warranty. A – rubber retaining ring B – display clamping jaws C –... - Page 14 Controller assembly: A – controller clamping jaw Open the controller clamping jaw and place it on handlebars in your chosen position. Use an Allen wrench to tighten the locking screw M3x8. Tightening torque: 1 Nm Connecting the display: H – display cable h –...
- Page 15 Speed measuring sensor settings: A – speed sensor B – magnetic unit C – wire spoke D – nut for attaching the magnetic unit Tighten the nut D by a flat screwdriver. Tightening torque: 1.5 – 2 Nm...
- Page 16 Output Wiring Connection: 1 - Red conductor: Positive pole (24 V/36 V) 2 - Blue conductor: Supply cable to the controller 3 - Black conductor: GND (earthing) 4 - Green conductor: RxD (from the controller to the display) 5 - Yellow conductor: TxD (from the display to the controller)
- Page 17 Controller Turning on the electrical system of your electric bicycle: Check the connection of electrical wiring before turning on the electrical system. Turn on the control panel of the electric bicycle by pressing and briefly holding (1.5 seconds) the button ON/OFF on the control panel (mounted on the handlebars).
- Page 18 Light switch: Press the light switch (C) to turn on display backlight and the lights. To switch the lights off, repeat the same procedure. If the display is switched on and you are in a dark environment, the lighting will be automatically switched on.
- Page 19 Battery level status indicator: If all the ten levels of charge indicator disappear and the battery outline starts flashing, the battery needs to be charged immediately. Number Charge in Number Charge in Number Charge in of levels percentages of levels percentages of levels percentages...
- Page 20 Deleting data (tC): By doubleclicking Mode button you will enter to the settings and change the tC value. Push the UP button and change the „n“ to the „y“. Data will be deleted except total distance value. Selection values km/mile (S7): By doubleclicking Mode button you will enter to the settings and change the S7 value.
- Page 21 Light sensitivity (bL0): By doubleclicking Mode button you will enter to the settings and change the value bL0. Push the UP/DOWN button and choose from 0 - 5. Higher the number, higher the sensitivity. Backlight (bL1): By doubleclicking Mode button you will enter to the settings and change the value bL1. Push the UP/DOWN button and choose from 0 - 5.
- Page 22 Auto- off (OFF): By doubleclicking Mode button you will enter to the settings and change the value OFF. Push the UP/DOWN button and choose from 0 - 9 min. Higher the number, longer the off time. Warning Maintenance (nnA): By doubleclicking Mode button you will enter to the settings. Push the UP/DOWN button and choose from 0 - 1.
-
Page 23: Maintenance
Maintenance Regular maintenance: - maintain all components of the electric bicycle clean - use only the recommended and tested cleaning materials - regularly lubricate the chain with suitable oils - in winter, clean the electric bicycle after each ride and pay increased attention to removing salt from battery contacts and other connectors - while handling the electric bicycle, make sure the cables of the electric system are not damaged. -
Page 24: Possible Problems And Their Solutions
Possible problems and their solutions In the event of system malfunction perform basic problem diagnostics, or have your electric bicycle checked by a specialized service place or contact your seller. Do not attempt to repair the system yourself or tamper with its structure. Problem Possible cause Solution... - Page 25 Accumulator is a consumable If the riding distance after a full item. Repeated charging and long- chargé is very short, please term use causes degradation in replace the accumulator. accumulator characteristics (loss of performance) There is resistence while Are the bicycle tires inflated to Use a pump to increase pressure pedalling.
- Page 26 Charging of the accumulator The accumulator may be at the Replace the battery. does not sta rafter conecting end of its working life. the charge supply unit- Accumulator and the charge The temperature of the charger or Stop charging, wait and then try supply unit is hot.
- Page 27 Is the wire connector plugged Make sure that the conncetors properly? of electrical wiring between the motor and the gear shifting drive are not disconnected. If you are unable to assess the the connector, please contact your seller. Is the bicycle computer properly Insert the bicycle computer into inserted in the holder? the holder properly.
- Page 28 Warning When there is a problem with the electric bicycle, it can show error messages. LCD display will show the icon and an error code will be displayed on the speed display. Error codes are marked from 01 E~FF E; see their meaning in the table below. Error code Description Solution...
- Page 29 Electric set warranty Complaint procedure: Submit any complaints concerning the electric set or the battery to your dealer. When filing a complaint, submit a proof of purchase and a warranty certificate with the registered serial number of the battery and indicate the reason for the complaint and a description of the defect. Wrranty conditions: 24 months for electric bicycle components –...
- Page 30 Warning If you do not understand any of the points in these Operating Instructions, please contact the dealer for explanation. Please read the whole manual! Do not lend the e-bike to persons not briefed in its use and operation. Complaints resulting from improper handling will not be accepted.
- Page 31 Enjoy many pleasant and safe kilometres on your new electric bicycle. Your Leader Fox Team Czech brand of electric bicycles. BOHEMIA BIKE Address Na Pankráci 1724 14000 Praha 4 - Pankrác Development, design and manufacturing Okružní 697 České Budějovice 37004 Phone: 388 314 885 Email: info@leaderfox.cz...
