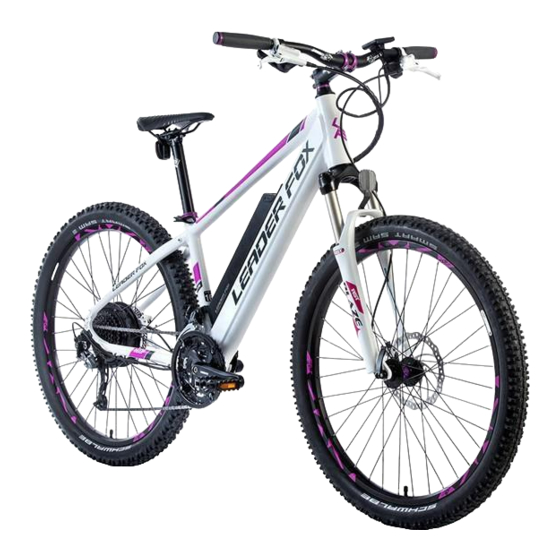

- Page 1 Electric Bicycle Operating Instructions Under the law, the dealer is obliged to attach the LEADER FOX Electric Bicycle Operating Instructions to every product E – BIKE POWER RIDE Arimo Parana...
- Page 2 Introduction Dear users, Please read carefully all the information regarding your E-LF product to ensure optimal functioning of your e-bike. The following text containing a comprehensive description will provide you with information on all aspects and details (including installation, setting up and general use of the display) regarding the use of our display.
- Page 3 Factors influencing the electric bicycle range 1. Rolling resistance of the tyres. Leader Fox e-bikes are fittet with tyres with low rolling resistance and increased resistance to puncture. It is also important that the tyres are inflated properly. Therefor, if the tyres of your electric bicycle are underinflated, the range will decrease.
- Page 4 Battery: Do not throw the battery into fire. Do not throw the battery into water. Do not use the battery for other appliances. It has been made specifically for this model. Do not dismantle or modify the battery. Do not connect the positive and negative poles of the battery. Charger: Do not dismantle or modify the charger.
- Page 5 Description Battery charging and maintenance: Charge the battery in a dry enviroment to avoid short-circuit damage. Charge the battery to at least 60% of the capacity once every 3 months even when the bicycle is not used. Do not cover the battery or the charger. Do not leave the battery constantly connected to the power source.
- Page 6 If you feel your total battery capacity has dropped, it could be caused by charging or operation in suboptimal climatic conditions. Carry out 3 full charging cycles. Fully discharge the battery while riding and then charge to its full capacity at room temperature. If the charge indicator shows that the battery is discharged, there is still a minimum voltage level in it which protects it against damage but is not enough to power the electric bicycle.
-
Page 7: Lcd Display
LCD display Product Name: Middle Install APT450U Intelligent LCD Display Supplier: Tianjin APT Development Cop., Ltd. Electrical Parameters: Battery supply: 36 V Rated operating current: 10 mA Maximum operating current: 30 mA Off-state leakage current: < 1 uA Maximum output current to the controller: 50 mA Operating temperature - 20 ~ 70 °C Storing temperature - 30 ~ 70 °C Certification:... - Page 8 LCD display description: Speed mode Lamp Power indicator Speed display PAS lever Undetermined ERROR code Battery indicator Brake indicator Mileage mode Mileage information Speed mode - AVG Speed (average speed), MAX Speed (maximum speed), Speed (current speed). Speed display - Kilometres/miles. Can be set as per user preferences. Battery Indicator - Intelligent battery status indicator.
- Page 9 Controller Controller description: POWER DOWN...
-
Page 10: Assembly And Disassembly
Assembly and disassembly Display assembly: Please pay attention to the tightening torque of the screws. Before assembly and during disassembly of the display, it is necessary to remove the grip and if needed also to remove the brake lever, gear lever and display from the handlebar. - Page 11 Control Switching on the electric system of the bicycle: Before switching the system on, check connections of the electric cables. Press the switch on the side of the battery to switch on the power supply of the electric system on the frame battery.
- Page 12 Changing between Speed mode and Mileage mode: Press the POWER button to change the Speed mode and Mileage mode. AVG Speed MAX Speed Speed & Trip Time Headlight/Backlight On/Off: Press and hold UP button for 1 second can turn on/off the headlight and the screen will switch to the corresponding mode.
- Page 13 Control Parameter settings: Press the Power button twice quickly (faster than in 0.3 second) to activate the parameter settings mode; the parameter is flashing. Press the Up/Down button shortly to change the value of the parameter. Press the Power button shortly to switch to another parameter.
-
Page 14: Maintenance
Maintenance Regular maintenance: - maintain all components of the electric bicycle clean - use only the recommended and tested cleaning materials - regularly lubricate the chain with suitable oils - in winter, clean the electric bicycle after each ride and pay increased attention to removing salt fromm battery contacts and other connectors - while handling the electric bicycle, make sure the cables of the electric system are not damaged. -
Page 15: Possible Problems And Their Solutions
Possible problems and their solutions In case of system failure perform its diagnostics or contact your dealer. The control LCD display is not on: - always make sure the battery is charged - check whether the battery is inserted correctly, whether the battery switch is on - check the connections of the control unit and the display The motor does not start when the walk assistance button is pressed - check the connection of the motor cable (at the motor and the control unit) - Page 16 Warning When there is a problem with the electric bicycle, it can show error messages. LCD display will show the icon and an error code will be displayed on the speed display. Error codes are marked from 01 E~FF E; see their meaning in the table below.
- Page 17 Electric set warranty Complaint procedure: Submit any complaints concerning the electric set or the battery to your dealer. When filing a complaint, submit a proof of purchase and a warranty certificate with the registered serial number of the battery and indicate the reason for the complaint and a description of the defect. Warranty conditions: 24 months for electric bicycle components –...
- Page 18 Warning If you do not understand any of the points in these Operating Instructions, please contact the dealer for explanation. Please read the whole manual! Do not lend the e-bike to persons not briefed in its use and operation. Complaints resulting from improper handling will not be accepted.
- Page 19 Upozornění Enjoy many pleasant and safe kilometres on your new electric bicycle. Your Leader Fox Team Czech brand of electric bicycles. BOHEMIA BIKE Address Na Pankráci 1724 14000 Praha 4 - Pankrác Development, design and manufacturing Okružní 697 České Budějovice 37004 Phone: 388 314 885 Email: info@leaderfox.cz...
