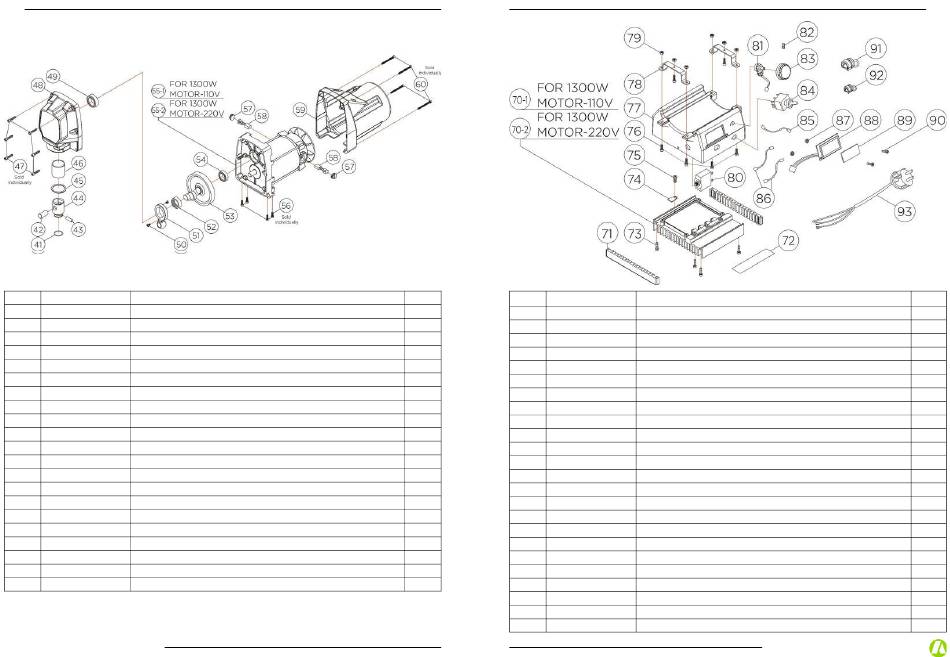

Motor & Gearbox
ITEM PRODUCT CODE DESCRIPTION
41 12-290-032 RETAINING RING (Ø1.2xØ24.8)
42 12-290-034 DRIVE WRIST PIN (Ø16x32)
43 12-290-033 PUMP WRIST PIN (Ø9.5x25)
44 12-290-035 DRIVE PISTON
45
12-290-038 INTERNAL CIRCLIP
46
12-290-039 BUSHING (Ø38xØ44x43)
47 12-290-051 SOCKET CAP SCREW (M5x35xP0.8)
48 12-290-050 GEAR HOUSING
49 12-290-053 BALL BEARING
50 12-290-054 TRUSS HEAD MACHINE SCREW (M5x8xP0.8)
51
12-290-055 CONNECTING ROD
52
12-290-056 NEEDLE BEARING
53 12-290-057 CRANK GEAR
54
12-290-060 BALL BEARING
55-1 12-290-062-1 MOTOR UNIT (110V)
55-2 12-290-062-2 MOTOR UNIT (220V)
56
12-290-061 SOCKET CAP SCREW (M5x12xP0.8)
57 12-290-064 BRUSH CAP (8x16)
58 12-290-065 CARBON BRUSH (8x16)
59
12-290-068 HOUSING COVER
60 12-290-069 SOCKET CAP SCREW (M5x55xP0.8)
QTech QT290 Airless Sprayer
Control
Box
QTY
ITEM PRODUCT CODE DESCRIPTION
1
70-1 12-290-091-1
1
70-2 12-290-091-2
1
71 12-290-121
1
73
12-290-101
1
74 12-290-097
1
75 12-290-096
6
76 12-290-093
1
77 12-290-090
1
78
12-290-094
2
79 12-290-092
1 80
12-290-100
1 81 12-290-120
1
82 12-290-119
1 83
12-290-118
1
84 12-290-115
1 85
12-290-110
4 86 12-290-111
2
87 12-290-108
2 88
12-290-107
1 89 12-290-106
4 90
12-290-105
91 12-290-117
92 12-290-116
93 12-290-125
ELECTRONICS UNIT (110V)
ELECTRONICS UNIT (220V)
RUBBER PROTECTION GUARD
PANHEAD TAPPING SCREW-B (M4x12)
EARTHING MARKING
PANHEAD MACHINE SCREW (M4x10xP0.7)
SOCKET CAP SCREW (M4x12xP0.7)

CONTROL BOX

U-BRACKET
HEX NUT (M4xP0.8)
CURRENT PROTECTOR
SPEED CONTROL (110V&220V)
SOCKET SET SCREW (M4x8xP0.7)
SUCTION POWER CONTROL DIAL (BLACK)
POWER SWITCH (110V&220V)
WIRE LEAD
WIRE LEAD
HEX NUT (M3)
LCD DISPLAY
WINDOW
TRUSS HEAD MACHINE SCREW (M3x12xP0.5)
CABLE GLAND
CABLE GLAND
POWER SUPPLY CABLE
