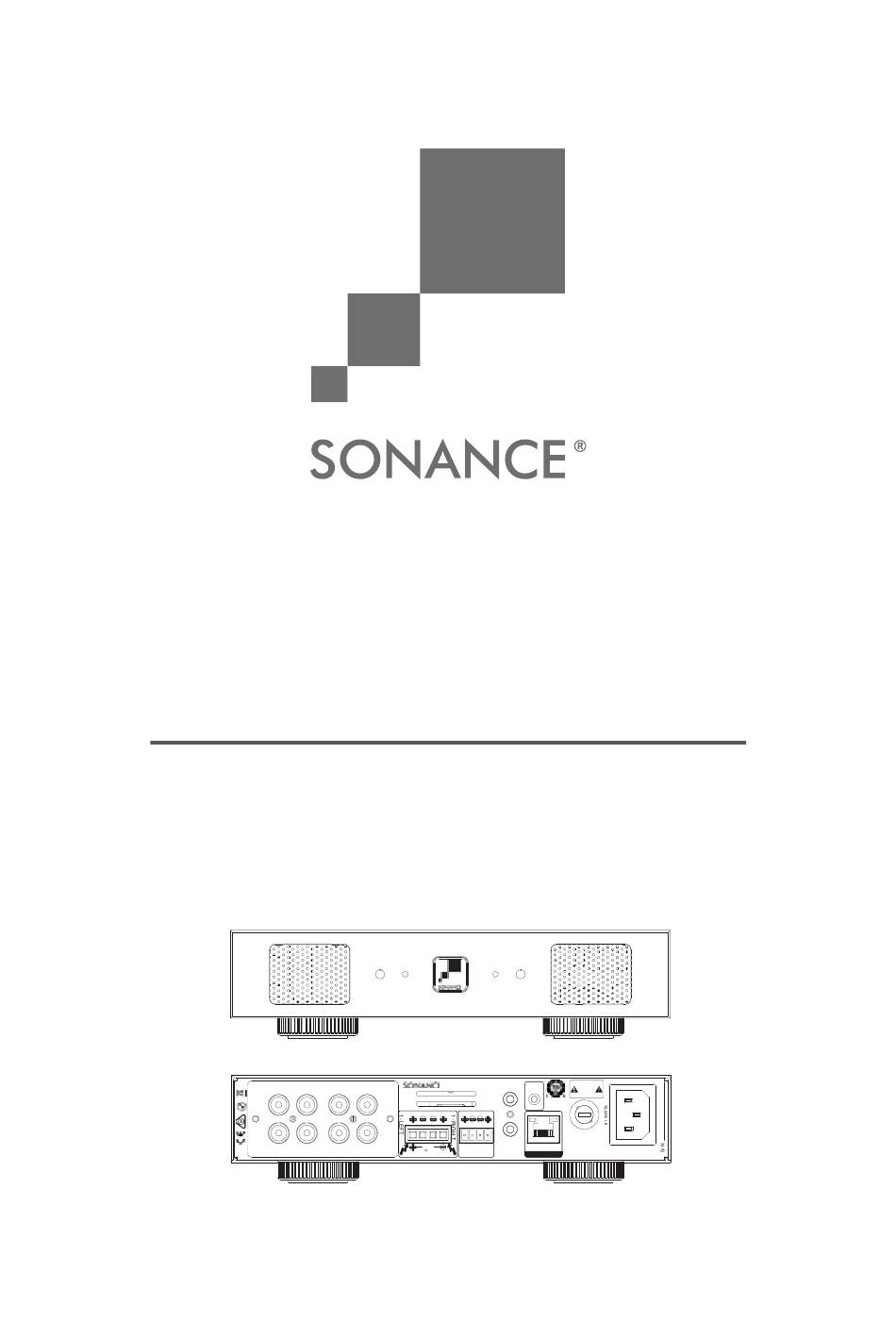

SONAMP MULTI-CHANNEL POWER
AMPLIFIER WITH SonARC V2
I N S T R U C T I O N M A N U A L
DSP 2-150 MKII
1L
1-L
1-R
2-L
2-R
IN
IN
OUT
OUT
CLASS 2 WIRING
1R
DSP 2-150 MKII
CAUTION
DSP 2-150 MKII
IR
IR
RISK OF ELECTRIC SHOCK
CONTROL
STATUS
DO NOT OPEN
AVIS
RISQUE DE CHOC ELECTRIQUE
IN
NE PAS OUVRIR
VOLTAGE TRIGGER
IN
OUT
OUT
T5AL/250VAC
CAUTION
REPLACE FUSE ONLY WITH
SAME TYPE AND RATING
TCP/IP
BRIDGE
3-30 VOLTS
DHCP ON-DEFAULT
ATTENTION
8
MIN
AC or DC
REMPLACER UNIQUEMENT AVEC LE
MEME TYPE ET CA LIBRE DU FUSIBLE
MADE IN CHINA
AC 100-120V ~ 60Hz
AC 220-240V ~ 50Hz
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sonance DSP 2-150 MKII
Summary of Contents for Sonance DSP 2-150 MKII
- Page 1 SONAMP MULTI-CHANNEL POWER AMPLIFIER WITH SonARC V2 I N S T R U C T I O N M A N U A L DSP 2-150 MKII DSP 2-150 MKII MADE IN CHINA CAUTION DSP 2-150 MKII RISK OF ELECTRIC SHOCK...
- Page 2 TABLE OF CONTENTS Safety Introduction/Box Contents Front Panel/Rear Panel Connections & Volume Level Controls Protection Circuitry & LEDs/Stacking Advanced Setup Troubleshooting...
- Page 3 WEEE directive, require special reuse and recycling processing. For this reason Sonance has arranged with our distributors in European Union member nations to collect and recycle this this product. Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.
- Page 4 Introduction Unpacking Thank you for purchasing the Sonance Sonamp DSP 2-150 MKII Save the carton and polystyrene inserts for future safe transport in years of entertainment pleasure. To get the most out of your new Before proceeding with installation, locate the serial number on the begin installation.
- Page 5 9. RJ-45 Input 10. AC Fuse Holder 11. Power Cord Connection NOTE: L/R LINE IN/LOOP OUTPUT CARD CAN BE REPLACED WITH SONANCE DIGITAL INPUT MODULE (SKU 93099 SOLD SEPARATELY) FOR ULTIMATE PERFORMANCE ENHANCEMENT THROUGH DIRECT CONNECTION TO A DIGITAL SOURCE.
- Page 6 AC or DC. The Voltage Output supplies a 12 volt DC signal to and ready to operate. When the Sonance logo button is slightly wire is to prevent the amp from accidentally entering sleep mode during setup.
- Page 7 The Sonamp DSP 2-150 MKII features a removable IEC power If the electrical service is subject to frequent sags, spikes or cord (see Figure 6). A 14 gauge EIA standard 120 volt grounded power cord is initially plugged in and the POWER switch is turned CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE, REPLACE THE FUSE WITH ONLY THE SAME TYPE AND RATING WHEN NECESSARY..
- Page 8 Speaker Connections For the best sound you should use On the left side of the rear panel are the audio inputs for the left premium speaker wire that complies and right channels. In addition to the left and right inputs there are also loop outputs for each channel.
- Page 9 Protection Circuitry and LEDs The DSP 2-150 MKII ships with two long rack ears for when the Phillips head screws (M4 x 0.7 pitch x 10mm long) found on each If a channel encounters a short-circuit (in bridge mode the protection circuitry will sense a short circuit across both positive (see Figure 15).
- Page 10 Basic Setup button. (1) Computer or tablet Connecting to Your SonARC Homepage 5. Use an IP scanner to determine the IP address of the Sonance for IOS, Advanced IP Scanner for Windows devices and LanScan for macOS.
- Page 11 Output Settings/Output Volume General Settings Tab Output Name The Advanced Setup automatically starts out on the General Settings tab. This tab is used to set up your MKII with a network network connection, auto on method and other basic information.t be powering.
- Page 12 IP Subnet Mask Power Button The third setting in the IP SETUP section is the IP Subnet Mask. When sleep mode is set to OFF the channel will be on at all times. This is an advanced network setup function. Under most Use the sleep mode OFF setting for audio signals like a doorbell or paging where audio must be reproduced immediately at any time.
- Page 13 Mono. DSP Preset NOTE: FRONT PANEL VOLUME CONTROLS OVERWRITE THIS SETTING. Apply any of the available Sonance DSP presets to each channel of Maximum Volume IP or IR can be used to limit how loud the speakers will play in certain areas.
- Page 14 1. Import speaker preset to a location on your computer. This can Test Signal be accomplished by saving a DSP preset downloaded from Sonance website. The SonARC software includes a built in pink noise generator. 2. Select the location you would like to store the new preset using The pink noise signal can be used in conjunction with a real time the SELECT PRESET TO EDIT pull down menu.
- Page 15 Parametric EQ Crossover LP Xover / HP Xover EQ. Adjustments made to the EQ will be displayed on the output frequency response graph. We strongly suggest not adjusting the Frequency EQ without proper measurement equipment. Filter Type EQ Frequency Hz available in the pull down menu.
- Page 16 2 (1 stereo pair) Power Output - 8 ohms (Stereo) 150 Watts RMS per channel (all channels driven) Power Output - 4 ohms (Stereo) 224 Watts RMS per channel (all channels driven) Power Output - 8 ohms (Bridged) 473 Watts Total Harmonic Distortion 0.07% (1kHz, 8 ohms) 0.06% (1kHz, 4 ohms) Input Gain...
- Page 17 APPENDIX A LED Indicator Explanation Dim White Power Button Power Button Blinking The amp is in ID Amp Mode (see page 9). Green LED Signal is present (>1.0mv) on channel. Blinking Green Signal is going above and below the active level or between songs. Blinking Red The channel is being over driven.
- Page 18 Out of the Box Troubleshooting Cause: The SonARC bridging option is engaged but the speakers are No Power Front panel Power LED does not illuminate when AC cord is plugged into an outlet and the amp is switched on. Set the bridge mode to OFF. If audio output is still unavailable, contact Dana Innovations Technical Support.
- Page 19 Reset the 1L volume control to maximum. Test playback to see if the speaker connected to the non- functioning channel works. For additional support, contact Dana Innovations Technical Support www.techsupport@sonance.com. that channel at the source or with the interconnect cable for the non-functioning channel. are functioning.
- Page 20 Product, and does not include labor or parts caused by accident, disaster, number (RMA), and must deliver the Product to Sonance shipping prepaid during the warranty period, together with the original sales receipt, or invoice or other satisfactory proof of purchase.
