OPERATOR'S MANUAL
CAUTION
BEFORE INSTALLING AND
USING THIS AIR CONDITIONER,
IT IS IMPORTANT THAT THIS
MANUAL BE READ AND
UNDERSTOOD THOROUGHLY
900-039-39 (1/19)
(CDR: 20131)
Keep This Manual
With Air Conditioner

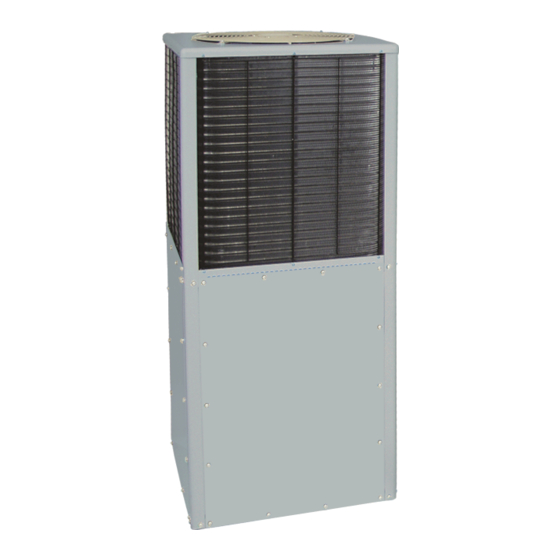

AIR CONDITIONER
INTREPID
EP56 SERIES
Find additional information on this
model at kooltronic.com, or use the
Technical
Documents
below.
Technical
Documents
KOOLTRONIC, INC.
30 Pennington-Hopewell Road
Pennington, NJ 08534
609 • 466-3400
FAX: 609 • 466-1114
www.kooltronic.com
QR
code
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kooltronic EP56 Series
Summary of Contents for Kooltronic EP56 Series
- Page 1 INTREPID EP56 SERIES Keep This Manual Find additional information on this model at kooltronic.com, or use the Technical Documents code With Air Conditioner below. Technical Documents AIR CONDITIONER OPERATOR'S MANUAL CAUTION KOOLTRONIC, INC. 30 Pennington-Hopewell Road BEFORE INSTALLING AND Pennington, NJ 08534 USING THIS AIR CONDITIONER, 609 •...
-
Page 2: Table Of Contents
Maintenance Trouble Shooting Warranty NOTE: Wiring Schematics are available on the specific model page of the Kooltronic website. I. Introduction Kooltronic Air Conditioners are designed to provide a cool, dehumidified environment for your electronic components. There are models to fit virtually all sizes and shapes of electronics enclosures, in capacities ranging from 1,000 to 30,000 BTU/H. -
Page 3: Incoming Inspection
Manual. See section VI PRE-INSTALLATION TESTING. 2) Before operating the Kooltronic Air Conditioner be certain that it is placed in its correct mounting position. This Air Conditioner is designed to operate in a vertical position only. This placement must be done a minimum of 5 minutes prior to operating in order to allow the compressor oil to drain to the compressor sump area. -
Page 4: Product Identification And Nameplate
IV. Product Identification and Nameplate Each Kooltronic Air Conditioner includes an identification nameplate. This nameplate provides: Model Number Serial Number Electrical power characteristics Maximum and minimum ambient operating temperatures Cooling capacity Type and amount of refrigerant required for recharging Design Pressure... -
Page 5: Principles Of Operation
ENCLOSURE AIR EP56TR Kooltronic Air Conditioners are required when the equipment operating temperature must be kept near or lower than the ambient room temperature, and/or the cabinet must be sealed from dust, fumes, oil, corrosives and other contaminants. These Air Conditioners utilize a "Closed-Loop Cooling System" to ensure optimum performance of the installed components. -
Page 6: Pre-Installation Testing
10. Turn off the electrical power and disconnect the air conditioner from the power source. 11. Adjust the thermostat back to 70°F. Failure to do this will cause the coil to freeze. 12. Reinstall the rubber plug. NOTE: Before shipment all Kooltronic Air Conditioners are subjected to a performance test. -
Page 7: Specific Model Data
(Warm Ambient Air Out) Dimensions, inches [metric], are for reference only and are subject to change. Kooltronic Air Conditioners have been engineered to be easily installed. To avoid damaging your air conditioner, please read the following information before installation: 1. Attach two hooks to your enclosure with supplied hardware (see mounting drawing). -
Page 8: Drawings And Dimensions
Drawings and Dimensions... -
Page 9: Standard Features
0261-275 Evaporator Coil 0667-51 0667-51 Condenser Coil 0666-45-1 0666-59-01 *NOTE: Part Numbers shown are for 60Hz/1Ø. For 50Hz consult Kooltronic. Accessories and Options Standard Features Enclosure Heater Available in either top or bottom evaporator Internal Corrosion Protection air discharge models... -
Page 10: Maintenance
A. Blowers The design life of the blowers used in all Kooltronic Air Conditioners is substantially in excess of 20,000 hours. All Kooltronic condenser and evaporator blowers are equipped with automatic-reset thermal overload protectors. -
Page 11: Trouble Shooting
IX. Trouble-Shooting Each Kooltronic Air Conditioner is engineered for performance and built for reliability. They are designed to require no routine maintenance. If your air conditioner should require service, we have compiled a trouble-shooting chart to assist your service personnel. If additional assistance is required contact Kooltronic at (609) 466-3400 . - Page 12 THIS WARRANTY CONSTITUTES THE ENTIRE WARRANTY WITH RESPECT TO THE PRODUCT AND IS IN LIEU OF ALL OTHERS, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS KOOLTRONIC RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER.
