OPERATOR'S MANUAL
CAUTION
BEFORE INSTALLING AND
USING THIS AIR CONDITIONER,
IT IS IMPORTANT THAT THIS
MANUAL BE READ AND
UNDERSTOOD THOROUGHLY
900-039-95 (11/17)
(CDR: 20023)
Keep This Manual
With Air Conditioner

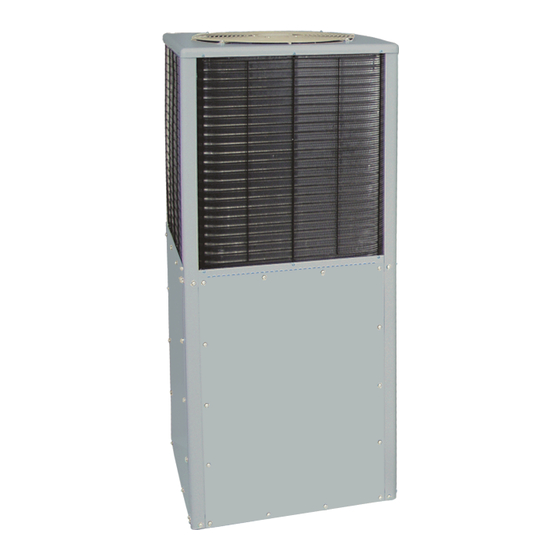

AIR CONDITIONER
INTREPID SERIES
K2A6C30EP56TR-4
Find additional information on
this model at kooltronic.com or
use the Technical Documents
QR code below.
Technical
Documents
KOOLTRONIC, INC.
30 Pennington-Hopewell Road
Pennington, NJ 08534
609 • 466-3400
FAX: 609 • 466-1114
www.kooltronic.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kooltronic K2A6C30EP56TR-4
Summary of Contents for Kooltronic K2A6C30EP56TR-4
-
Page 1: Air Conditioner
INTREPID SERIES K2A6C30EP56TR-4 Find additional information on Keep This Manual this model at kooltronic.com or use the Technical Documents With Air Conditioner QR code below. Technical Documents AIR CONDITIONER OPERATOR'S MANUAL CAUTION KOOLTRONIC, INC. 30 Pennington-Hopewell Road BEFORE INSTALLING AND... -
Page 2: Table Of Contents
Warranty I. Introduction Kooltronic Air Conditioners are designed to provide a cool, dehumidified environment for your electronic components. There are models to fit virtually all sizes and shapes of electronics enclosures, in capacities ranging from 1,000 to 30,000 BTU/H. Our "closed-loop" design also ensures that your components will not be exposed to hot, dirty operating conditions. -
Page 3: Incoming Inspection
Manual. See section VI PRE-INSTALLATION TESTING. 2) Before operating the Kooltronic Air Conditioner be certain that it is placed in its correct mounting position. This Air Conditioner is designed to operate in a vertical position only. This placement must be done a minimum of 5 minutes prior to operating in order to allow the compressor oil to drain to the compressor sump area. -
Page 4: Product Identification And Nameplate
IV. Product Identification and Nameplate Each Kooltronic Air Conditioner includes an identification nameplate. This nameplate provides: Model Number Serial Number Electrical power characteristics Maximum and minimum ambient operating temperatures Cooling capacity Type and amount of refrigerant required for recharging Design Pressure... -
Page 5: Principles Of Operation
When the Kooltronic Air Conditioner is properly sized it should operate constantly and maintain 75°F to 115°F enclosure temperature, depending on the ambient temperatures. - Page 6 Principles of Operation (con’t) MAX AND MIN TEMPERATURE MEMORIZATION 2) Select the required parameter. Press the SET HOW TO SEE THE MIN TEMPERATURE: key to display its value. 3) Use up or down arrow keys to change its value. 1) Press and release the down arrow key.
- Page 7 Principles of Operation (con’t) RESETTING If it becomes necessary to reset the unit, the factory settings are as follows: RANGE PARAMETER DESCRIPTION VALUE UNIT MINIMUM MAXIMUM Set Point °F Differential °F Fourth probe display Third probe display Evaporator probe display Room probe display Differential for temperature alarm recovery °F...
-
Page 8: Pre-Installation Testing
7 Reset the thermostat to the factory setting. WARNING: Operating the unit below 75°F may result in freezing of the evaporator coil. 8. Turn off the electrical power and disconnect the air conditioner from the power source. NOTE: Before shipment all Kooltronic Air Conditioners are subjected to a performance test. -
Page 9: Specific Model Data
VII. Specific Model Data Installation The air conditioner is equipped with four (4) adjustable height casters which can be locked after the unit is rolled into position. Locking the casters will prevent both rolling and swivelling. The casters are factory set to a minimum height and provide one inch of adjustment. To adjust the height loosen the two allen head set screws in the caster stem, hold the caster in place and rotate the stem counter- clockwise to raise. -
Page 10: Drawings And Dimensions
Drawings and Dimensions... -
Page 11: Technical Data
Approx. BTU/H Rating Temp. ºF Cooling Weight Model Capacity BTU/H Max./Min. Volts Amps (lbs) K2A6C30EP56TR-4 30000 28000 131/0 23.0* 27.0* * Rating is shown for operation at maximum ambient temperature. Major Component Replacements Part K2A6C30EP56TR-4 Compressor 0665-402 Compressor Capacitor 0452-78... -
Page 12: Wiring Diagram
Wiring Diagram... -
Page 13: Maintenance
A. Blowers The design life of the blowers used in all Kooltronic Air Conditioners is substantially in excess of 20,000 hours. All Kooltronic condenser and evaporator blowers are equipped with automatic-reset thermal overload protectors. -
Page 14: Maintenance
Maintenance (con’t) E. Filter Replacement 1) Loosen the three screws (T-25) that secure the upper filter bracket. 2) Slide the bracket upward and to the left to allow removal of existing filter and secure in position by tightening the center screw. 3) Lift filter up slightly to clear lower bracket and pull away from unit. -
Page 15: Trouble Shooting
IX. Trouble-Shooting Each Kooltronic Air Conditioner is engineered for performance and built for reliability. They are designed to require no routine maintenance other than the cleaning of ambient air filters. If your air conditioner should require warranty service, please contact Kooltronic. If you require service out of warranty, we have compiled a trouble-shooting chart to assist your service personnel. -
Page 16: Warranty
THIS WARRANTY CONSTITUTES THE ENTIRE WARRANTY WITH RESPECT TO THE PRODUCT AND IS IN LIEU OF ALL OTHERS, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS KOOLTRONIC RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER.
