rako WCM-040 Instruction Manual

WCM-040 Instruction Manual
For programming information:​
For general overview:

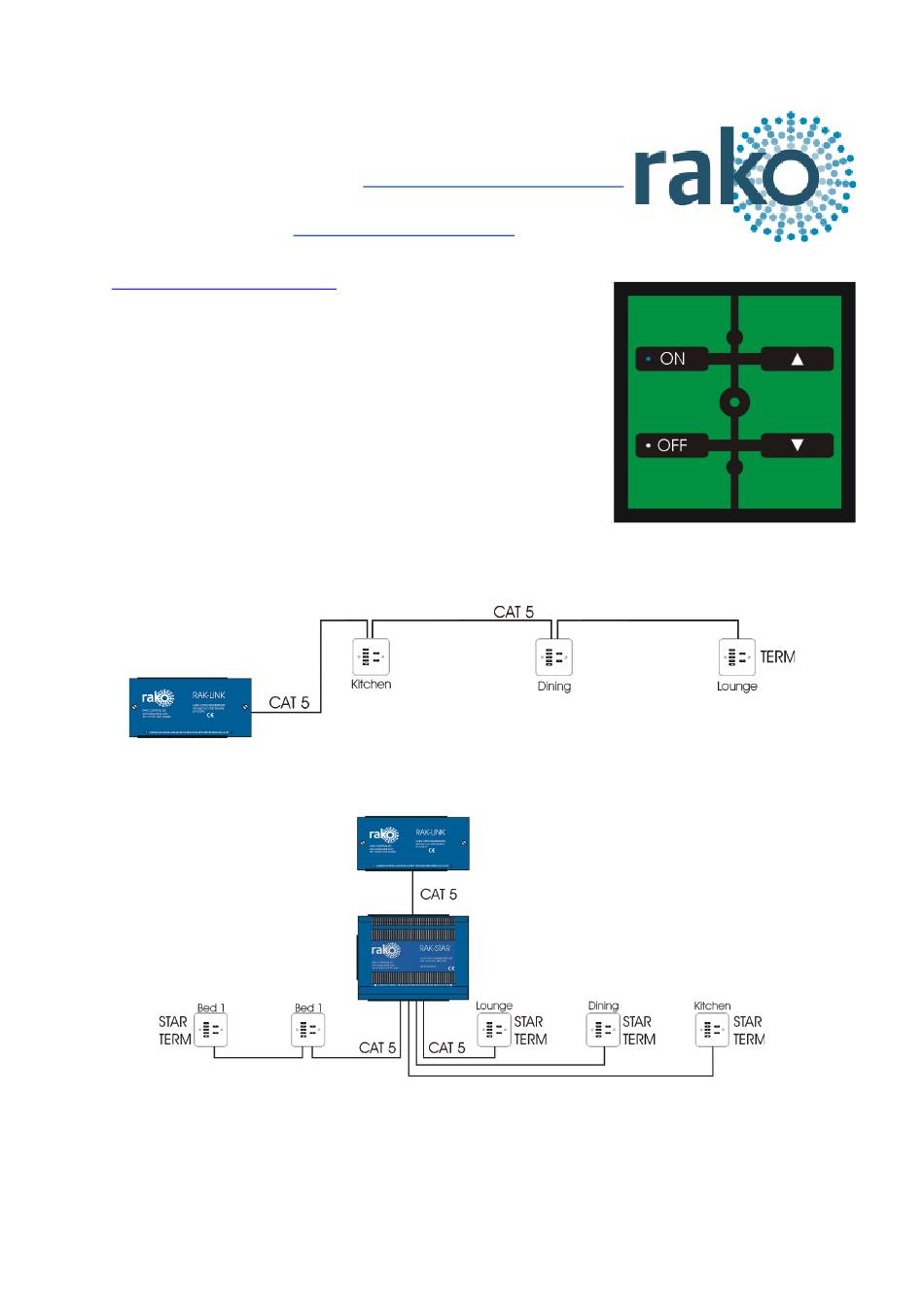

What is the WCM-040?
The WCM-040 wired keypad is four button keypad for use with
the wired system. It will transmit Scene 1, Off, Fade Up/Fade
Down before any custom programming is added.
WCMs require a RAK-LINK to operate as part of the system.
WCMs (as part of the wired network generally) can be wired in
two ways:
"Daisy Chain" configuration - ​ A single run of keypads runs
from the RAK-LINK and to an end point. It is still usually
advisable to run a return leg back to
the RAK-LINK as a spare.
"STAR" configuration - ​ C ables are all run back to a central point: a RAK-STAR usually
located with the RAK-LINK. Each cable can be from a single keypad or a leg of keypads.
Installation Note:
The WCM comes in two sections "Front" and "Back" they are referred to as such in the following
installation guide. The "Back" section is just a connection board for the CAT5/6 cable. The "Front"
section contains all memory and programming.
WCM-040
W ired system Programming Guide ​
W ired RAK Application Sheet ​
Manual Version 2.0.2
