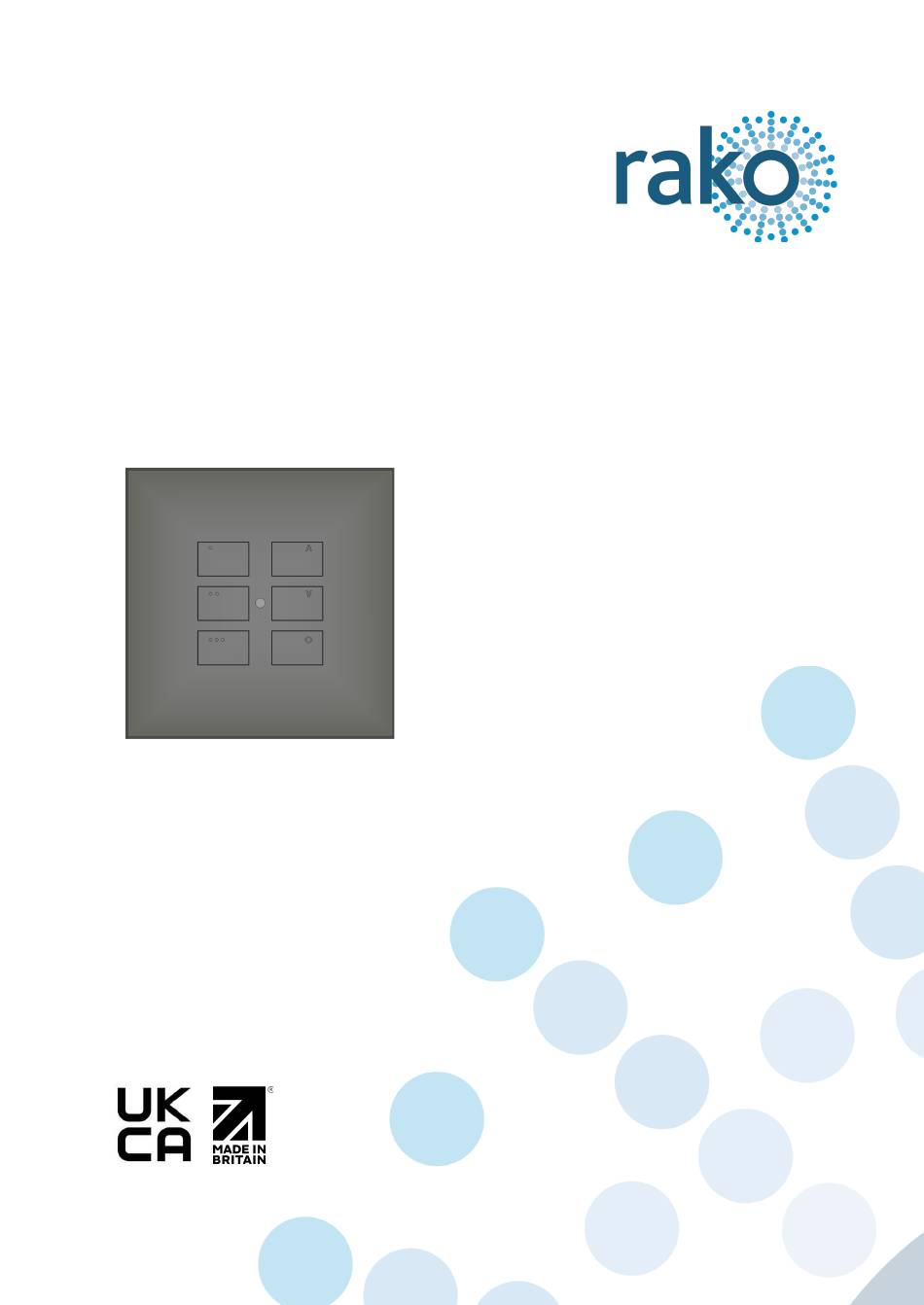

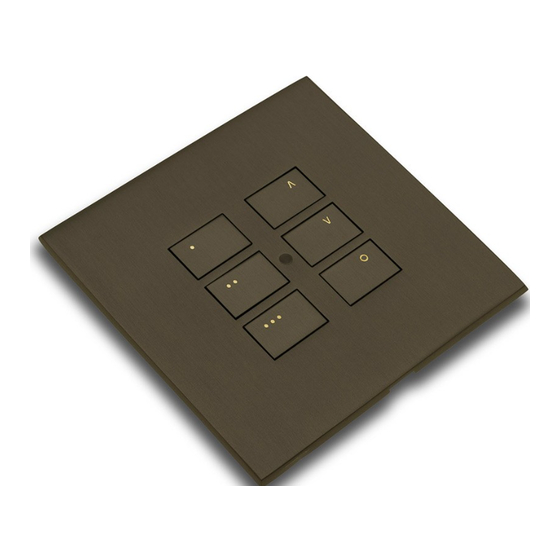

- Page 1 Instruction Manual RK-EOS-6 Six-Button Wireless Keypad 2024 Version 2.0.0...
-
Page 2: Table Of Contents
RP-EOS-60-XX must be used in conjunction with the RK-EOS-6. 2 Programming the RK-EOS-6 Before the RK-EOS-6 can be installed, it needs to be configured in Rasoft Pro using either a RAMPI or a HUB. 2.1 Using a HUB... - Page 3 RCM with dip switches set to this Room. It is important to set the Room at this stage. If “Assign later” is selected, then the RK-EOS-6 will not be programmed and will be added as a virtual Device Select Finish on the next page to complete the setup.
-
Page 4: Using A Rampi
RCM with dip switches set to this Room. It is important to set the Room at this stage. If “Assign later” is selected, then the RK-EOS-6 will not be programmed and will be added as a virtual Device Select Finish on the next page to complete the setup. -
Page 5: Button Layout
Click “save for upload” at the bottom of the page to upload these settings onto the RK-EOS-6. At this point, a progress bar will appear on the screen. Place the RK-EOS-6 onto the HUB to upload the new settings. 2.3.1 Button Layout The RK-EOS-6 has inputs that represent the buttons on the Keypad. -
Page 6: The Mapping Section
2.3.2 The Mapping Section All programmed inputs for the RK-EOS-6 must first have a mapping. The purpose of a mapping is to program a button to perform a specific command. Each input has its own letter to represent its input; the RK-EOS-6 has 6 inputs. -
Page 7: Keypad Layout
The output actions of the buttons inputs are set up in the button action section, the following options are available: Function Description Room The Room number of the output command. Channel The Channel number of the output command, can be All Channels or a single Channel. RK-EOS-6 Manual Version 2.0.0... - Page 8 Set the temperature output. Macro Trigger an internal Macro on the Device; this is not the same as triggering a Macro on a HUB. Macros can be created on the ‘Macro’ tab above the button configuration. RK-EOS-6 Manual Version 2.0.0...
-
Page 9: Installing The Rk-Eos-6 With Rp-Eos-60-Xx
● The RK-EOS-6 is a battery-powered device; it must be accessible for battery replacement. ● The RP-EOS-60 is required to mount the RK-EOS-6 into a backbox, ensure that the unit has been configured before installing the unit. - Page 10 4 Initial checks ● Press any button on the RK-EOS-6, and the blue LED in the centre will illuminate momentarily and go off. ● Ensure every button on the switch can be pressed without obstruction. ● If there is no blue light when a button is pressed, check that that ‘pull out’ tab has been removed from the battery terminal.
- Page 11 Low battery or the wrong If the RK-EOS has a low battery. battery, the blue LED will flash when a button is pressed, there may also be no LED if the battery is flat. Multiple intermittent pulses. RK-EOS-6 Manual Version 2.0.0...
