QUICK START GUIDE
SMARTCLEAN
Assembly Instructions
Battery Installation
** DO NOT REMOVE THE PLASTIC SHRINK SLEEVE FROM THE BATTERY PACK.
First, turn the power switch
to the off position. Press on
the two circles of the battery
cover and slide the cover
towards you and insert the
battery.
PARTS INCLUDED

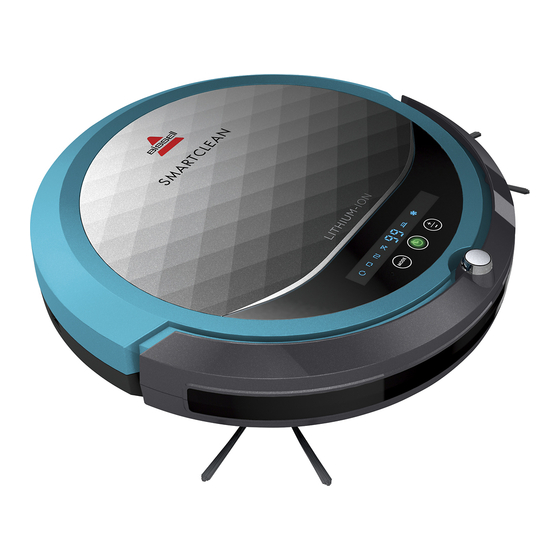

1. BISSELL SmartClean® Robotic Vacuum
2. Rechargeble Li-Ion Battery
3. Dust Bin
4. Edge Cleaning Brushes
NOTE:
Not all accessories come with every model. Be sure to check the carton for additional tools.
160-8642 Rev 03/16
ROBOTIC VACUUM
TM
Getting Ready to Clean
1. Install the edge cleaning
Install the battery in the
compartment, ensuring the brush by pushing directly in
+/- terminals of the battery to the holder.
match the +/- indicators in
the battery compartment.
5. Programmable Docking Staton
6. Power Adapter
7. Invisible Wall
(4 AA batteries not included)
8. Filter
(Located inside Dust Bin)
2. Turn on the power switch
and charge the battery
directly from the power cord
for 4-5 hours prior to first
operation.
1.
3.
4.
2.
1605 SERIES
WARNING
Refer to the enclosed user guide for complete
instructions and important safety notices.
3. Use the invisible wall
to keep the robot from
cleaning in areas where
obstructions have not
been removed. See the
User's guide for detailed
operation instructions.
5.
7.
8.
6.
(Located inside Dust Bin)
