D-Link DKVM-2U Quick Installation Manual page 4

Installing the DKVM-2U
The following steps apply to both computers that are to be used by the DKVM-2U.
Start by attaching the cables connected from the PC1 port of the DKVM-2U to
Computer 1.

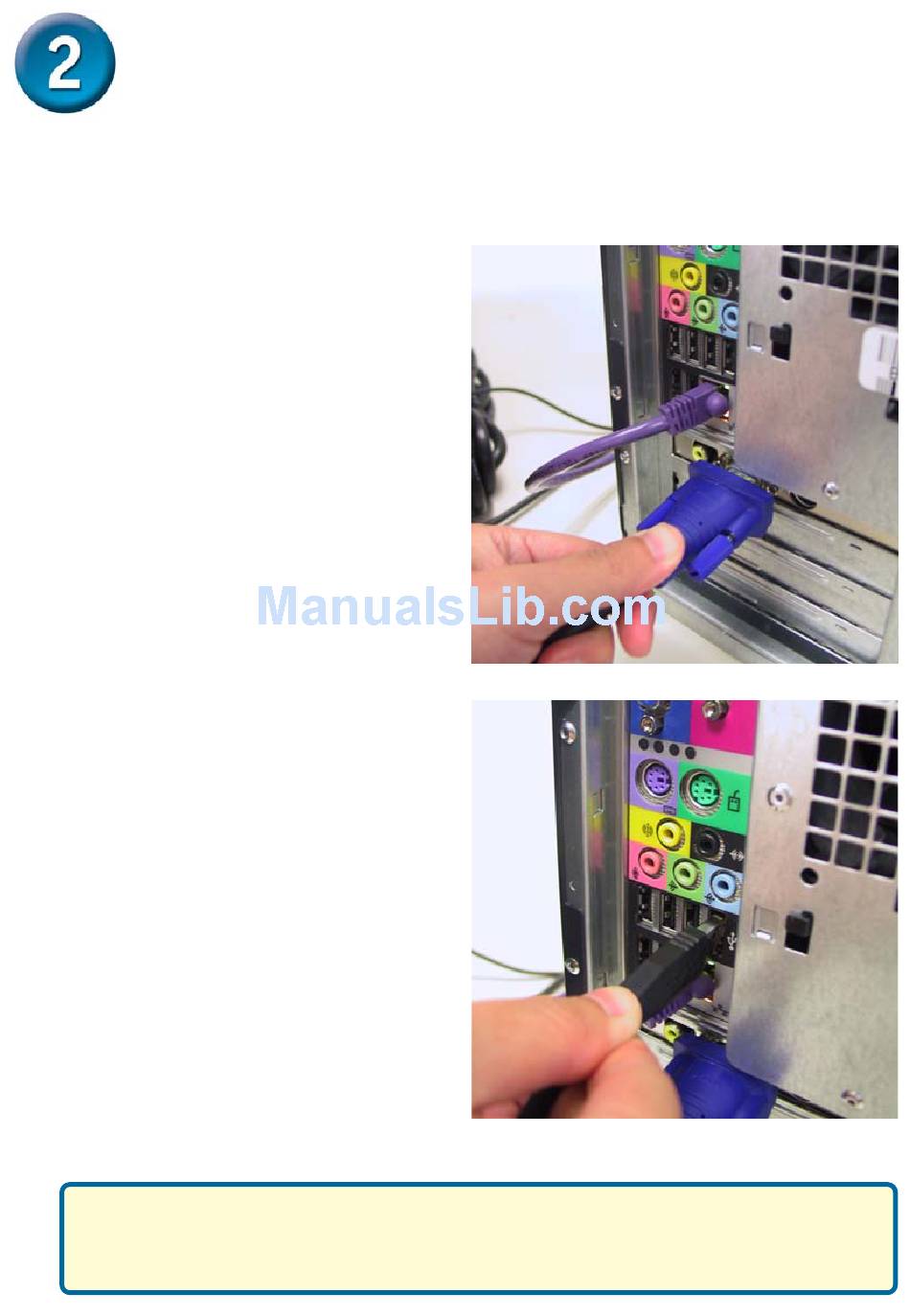

Connect the DKVM-2U's included
monitor cable (blue coated) to the
VGA port located on the back of your
computer case.
Plug the DKVM-2U's included USB
cable to the USB port located on the
back of your computer case.
Note: Repeat these steps to attach
the cables connected from the PC2
port of the DKVM-2U to Computer 2.
Power ON both of your attached computers after you have
completed the DKVM-2U installation.
Type A
4
