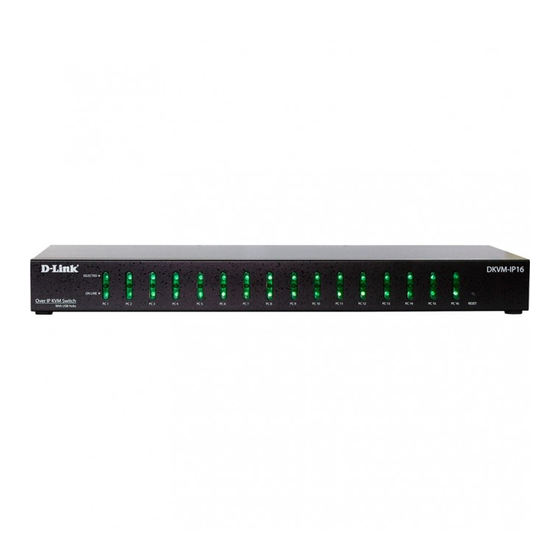

- Page 1 Industrial grade IP KVM switch User manual...
-
Page 2: Packing Contents
Description Thank you for purchasing this IP-KVM switch. The IP KVM that means a KVM switch with remote management function. A set of keyboard, mouse, and monitor control multiple computers and can remotely control multiple computer servers. IP KVM transmits each computer's signal to the IP data packet through the Internet or private network. -
Page 3: Interface Instruction
Interface instruction 1~8/ 1~16 panel switch button reset button input port Output port USB Hub LED flash fast that means data interaction power port USB ports and 8 serial ports are vendor-specific interfaces that users cannot use LAN port : Ethernet interface Red LED : 0M Ethernet connected Green LED : 100M Ethernet connected... - Page 4 Hotkey command introduction In addition to the front panel buttons, the KVM switch port can also be used via a simple keyboard combination. Simply press the HOME / Cap / Scroll / Num keys twice within 2s to send a command to the KVM and you will hear ”...
- Page 5 Home+ home + Num. +enter: set the auto-scanning intervals, from 5 - 999s If you would like to use Caps mode, please press Home+ Home+ Caps first Caps mode Command Switch to the corresponding port. Switch to Next Switch to Pre. Off/ on the buzzer Auto-scanning, press any key to stop auto-scanning...
-
Page 6: Menu Setting
Main menu According to User selected, red letter will be revised. Cascade indication, 00 represents the first level, 00represents the second level. the digital of port: 8 shows 8 port KVM switch, 16 shows 16 port KVM switch. Port selected. the port auto-scanning selected. - Page 7 F2:Set the port to be scanned, used with auto-scanning mode 2 TAG (press F2 to open or close the scan, identify “ T”, as shown in Figure 2 below) F3:Set system F4:Scan port F6:Set the host to be assigned non-administrator users (which hosts User 1-7 can operate) F7:Set user login Note: F1, F2, F3, F4, F6, F7 need to press on keyboard.
- Page 8 F3: System setting Setting method: Under the current option, press enter to enter the setting: 01: Buzzer on/ off 02: Autoscan Mode 0: All of ports 1: The option ID only scans the PC port connected to the USB 2: only scans the port that mark by “T”(as figure 3) 03: Autoscan interval, default 5s 04: After switching, the OSD shows the Banner interval 05: After switching, OSD shows banner position, after entering,...
- Page 9 0:The device will be automatically switched to the port just inserted into the USB device when all the ports are free 1:Plug in a USB device (When USB port has a 5V devices input), it automatically switches to the one you plugged in, giving priority.
- Page 10 When you press F7 into the user settings, the screen shown in Figure 4, SECURIY: Y represents that need the password to enter, N on behalf of don’t need the password to enter, press the "↓" into the user account, Press “enter” to into, enter the screen as Figure 5 F1: modify the user name (user name: ADMIN, USER1, USER2, USER ..
- Page 11 Figure 6 USER Name: the user name above Figure 5, Password: the password behind the user name, then you need to submit the user name and password to enter When you want to set the administrator to enter the OSD menu operation, you need to press F5, then OSD menu will restore picture like Figure 6 .
- Page 12 input the user name: user-03, password: 333333, you can see that only 1,2,3 computers can operate, and so on The default administrator user name: Admin, password: 000000, when you use this account, you can operate any host Noted: When you forgot possward, please set user name: Admin, possward: MTVIKI.
-
Page 13: Precautions Before Installation
Cascade installation steps Precautions before installation: 1.Connect output source, input source, cascade cable and keyboard, mouse. 2.Connect the power adapter after output source, input source, cascade cable connected to prevent the keyboard stuck phenomenon. 3.Please start PCs after all done. 4.After cascade, switch method: Panel button, OSD switching: press HOME+ HOME+ enter to activete OSD menu. - Page 14 Press ”↓” to control next PCs untill 8th/16th port. Press “+” to controll second level PCs. If you would like to back the first level PCs, please press “-” when OSD show “0.1 SERVER-01” Note: Each products need to connect power when cascade, the product of each input port can be used as a cascade port, cascaded up to two level.
- Page 15 16 port cascade diagram LAN port (Only the first level can be contected.) first level cable second level second level Note: 16 port KVM switch connect up to 240 Pcs. Please note that the wiring connecting sequence, if reverse, may result in product burnout, the consequences.
- Page 16 IP control steps Application Software Description 1. In order to remotely control KVM, your operating system must support the 5.0 (V1.5) JRE (Java Runtime Environment). You can download it from the following website: http://www.jave.com/ 2. For better use of features, it is recommended that you download the latest Java version 3.
- Page 17 4. Download the certificate: "KVM_certificate_Authority.P12" or a copy in the CD 5. Import the certificate in Java, double-click Java, open the software, click security, certificate management, certificate type: "Trusted certificate" "Secure site" "Signer CA" "Secure site CA" must be imported "KVM_certificate_Authority.P12 "certificate...
-
Page 18: Network Configuration
Network Configuration 1. KVM IP factory default settings Default username: super Default password: pass DHCP: Disabled IP address: 192.168.0.70 Mask: 255.255.255.0 The network configuration software (psetup) is used to set the network configuration (IP address, mask, DHCP, etc.). When you want to change the network configuration or cannot connect IP-KVM because you do not know the IP-KVM network configuration, in this case, you can view or change the settings through this “Psetup”... - Page 19 Set a fixed IP 1) Use psetup to find IP-KVM. ●Click the Refresh Devices button to detect the connected device ●Select an IP-KVM MAC address in the "Device Mac address" box. You can find the MAC address label on the bottom side of the IP-KVM body.
- Page 20 Get an IP from the DHCP server 1) Set "IP auto configuration" to "DHCP” 2) Enter "super user login" and "super user password" for verification (default: super/pass) 3) Click setup device. If login authentication passes, it will display "successfully configured device” 4) Use Psetup to determine the IP address ●Click the refresh devices button to detect connected devices ●Select a MAC address corresponding to IP-KVM in the "device...
-
Page 21: Password Reset
Password reset Whenthe default password "pass" modified, and lost the modified password, then you can use the R232 serial port through the "PUTTY" software to restore the default password. (PuTTY software can be downloaded online) 1. After installing "PuTTY" software, click Open, select "serial", fill in the blank space under "serial line"... - Page 22 2. Click "open" to open the software as shown below: 3. While powering on the IP-KVM, press the "ESC" key on your computer's keyboard until you see the "=>" symbol. Enter "help" and press the enter key. Press Enter after input “default”. Wait until the interface appears: As shown below: Please re-power! The password recovery default value is successful.
-
Page 23: Using A Web Browser
Using aweb browser You can access the IP-KVM after learning of the IP address through a web browser. After the user name and password are used for login authentication, you can access the IP-KVM web server through a web browser. For example, when you type the following string in your browser URL field, a passwordless connection is established: http://<IP- KVM's IP address>... - Page 24 Router port mapping as shown below:...
- Page 25 LAN users through the intranet IP login interface: The LAN user login is as follows:...
- Page 26 Check the WAN IP address through the router: External network users log in through the WAN IP interface:...
- Page 27 WAN IP login success interface: Image settings are set in the transmission code.
- Page 28 Open And Use The Remote Console 1) To open the KVM Console or click on the menu on the left icon console or remote control> KVM console or click the “click to open” on the right of the console diagram. 2) Starting remote console will open an additional window.
