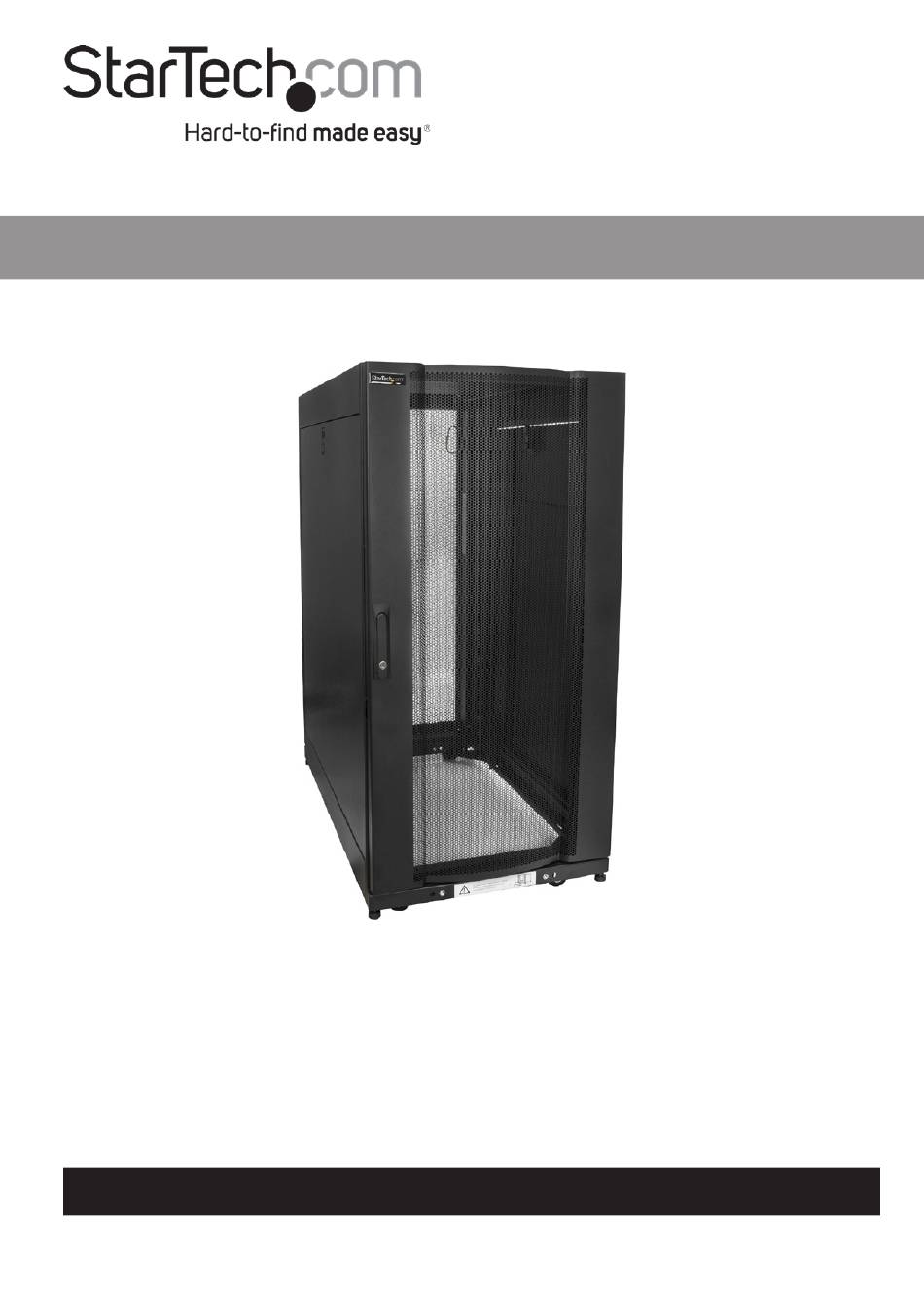

- Page 1 25U Rack Enclosure Actual product may vary from photos User Manual SKU#: RK2537BKM For the latest information and specifications visit www.startech.com/RK2537BKM Manual Revision: 09/18/2018...
- Page 2 Consult the dealer or an experienced radio/TV technician for • help For the State of California Cancer and Reproductive Harm WARNING: www.P65Warnings.ca.gov To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 3 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 4: Safety Statements
• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 • Risk för vältning! Att förlänga flera komponenter från detta skåp ökar risken för att det välter. Förläng inte fler än en komponent från skåpet för att To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 • Kippgefahr! Das Ausziehen mehrerer Komponenten aus diesem Gehäuse erhöht die Chance, dass das Gehäuse umkippt. Um dies zu vermeiden, ziehen Sie niemals mehr als eine Komponente aus diesem Gehäuse aus. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 7 • Perigo de queda! Estender vários componentes desta caixa aumenta a probabilidade desta caixa cair. Para evitar este risco, não expandir mais de um componente desta caixa. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 8 Om dit risico te voorkomen, mag niet meer dan één component uit de behuizing steken. • Plaats geen voorwerpen op deze behuizing en stapel de behuizing niet op To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 9 必ず取扱説明書に従って本製品の組み立てを行って下さい。 本製品で定められた最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした場合、 怪 我をする恐れや器物破損の恐れがあります。 本製品は、 モニター1台あたり363kgまで支持できます。 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 本製品は、 非常に重いエンクロージャです。 絶対に一人で持ち上げたり動かしたり しないで下さい。 転倒注意 ！ 本製品から複数のコンポーネントが突き出した状態にしておく とエンクロージャが転倒する 恐れがあります。 転倒リスクを回避するために、 エンクロージャからはコンポーネントが突き出ないよう にして下さい。 本製品の上に何も載せないで下さい。 複数のエンクロージャを重ねて設置しないで下さい。 液体物をエンクロージャに近づけないようにして下さい。 エンクロージャ自身と中に積載する装置の総重量に耐えられるエリアに設置して下さい。 この製品にはアースが必要です。 アース接続をしていない状態で本製品を使用しないでください。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 10: Table Of Contents
Removing the Roof Panel ........................18 Grounding the Rack ..........................18 Adjusting the Vertical Mounting Rails or Cable Management Rails ........19 Baying Multiple Racks Together ......................22 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Product Information
The following Items required for installation are sold separately. Wrench x 1 • 13 mm Socket x 1 • Level x 1 • Grounding Wire x 1 • Phillips Head Screwdriver x 1 • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Unpacking The Rack
Note: Make sure that at least one person is holding the Rack in place while removing the brackets. Carefully remove the Rack from the pallet and place it on a firm surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Installation
Rack and mounted equipment. Determine the location of the Rack, then use the Level to ensure that the surface is a flat level surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 14 Place the Level on the top of the Rack to ensure that the Levelers are adjusted correctly. If the Rack is not level make the required adjustments to the Levelers until the Rack is Level. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Installing The Cage Nuts
Rack with the heaviest equipment and work your way to the top. Determine the U-space of your equipment and where in the Rack you want to install the device. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 16 Use the M6 Screws to secure the device into place. If your device has mounting brackets with hooks, hook the bracket to the position where you want your device to go. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 17: Removing The Front And/Or Rear Door
Unplug the Grounding Wire connecting the Door to the Door Frame. The Grounding Wire is located in the top inside corner of the door. Number Description Grounding Wire To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 18 With the door open at a 90-degree angle to the Rack frame, lift the door from out of its hinges and pull outward to remove it from the door frame. Note: To reinstall the door reverse the steps above. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 19: Removing The Side Panels
While supporting the top portion of the Side Panel, pull the Locking Latch on the Side Panel downward, to release the Side Panel from the Rack Frame. Number Description Locking Latch To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 20 Slowly tilt the top portion of the Side Panel away from the Rack Frame. While supporting the weight of the Side Panel, pull the bottom of the Side Panel away from the Rack Frame. Exposed Side Panels To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 21: Installing The Side Panels
While supporting the weight of the Roof Panel, slide the two Locking Tabs (located at the Front of the Roof Panel) out from the slots on the Rack Frame. Lift the Roof Panel out of the Rack Frame. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 22: Grounding The Rack
Mounting Rail to two Depth Adjustment Rails. One M6 Screw and Cage Nut is located at the top and one M6 Screw and Cage Nut is located at the bottom of the Mounting Rail. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 23 Using a Phillips Head Screwdriver, remove the two M6 Screws from the Cage Nuts on the Mounting Rail. Number Description M6 Screw To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 24 Notes: The distance between each of the Mounting Rail Adjustment Holes is 1/4 inch. Once you have determined the mounting depth reinsert the Cage Nuts into the Depth Adjustment Rails. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 25: Baying Multiple Racks Together
Baying Brackets (e.g. baying to the side of the Rack where the door hinges are located). Align the racks side by side with the rack’s front doors facing forward. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 26 Baying Brackets are located. Number Description Baying Bracket Move the racks close enough so that the Baying Brackets when extended can align with the other rack’s Baying Screw Holes. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 27 Insert an M6 Screw, through the Baying Bracket and into the adjoining rack. Use a Phillips Head Screwdriver to tighten the M6 Screw. Retighten the Baying Bracket Screw that was loosened in step 4. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 28 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
