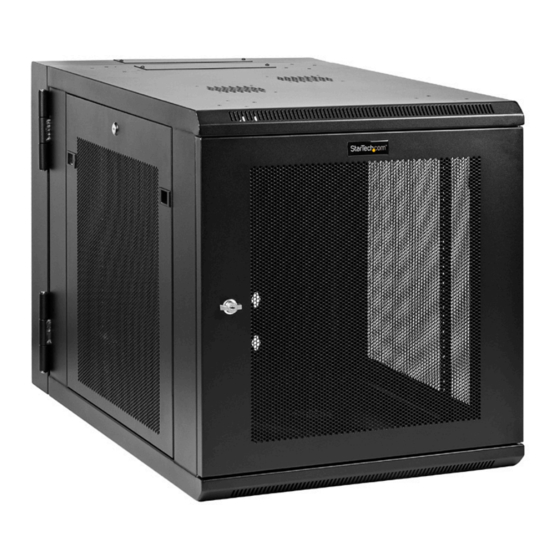

- Page 1 12U Hinged Wall-Mount Rack Enclosure Actual product may vary from photos User Manual SKU#: RK1232WALHM For the latest information and specifications visit www.startech.com/RK1232WALHM Manual Revision: 03/08/2019...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Safety Statements
• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Warning Statements
• Detta skåp är extremt tungt. Försök aldrig flytta på skåpet eller lyfta det utan hjälp. • Risk för vältning! Att förlänga flera komponenter från detta skåp ökar risken To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 Freien verwendet werden. • Dieses Gehäuse ist extrem schwer. Versuchen Sie niemals, dieses Gehäuse ohne Hilfe zu bewegen oder anzuheben. • Kippgefahr! Das Ausziehen mehrerer Komponenten aus diesem Gehäuse To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 • Este produto destina-se apenas a uma utilização no interior e não deve ser utilizado no exterior. • Esta caixa é extremamente resistente. Nunca tente mover ou levantar esta caixa sem assistência. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 7 = 90 kg. • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. • Deze behuizing is enorm zwaar. Probeer nooit deze behuizing te verplaatsen To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 8 本製品は、 非常に重いエンクロージャです。 絶対に一人で持ち上げたり 動かしたり しないで下さい。 • 転倒注意 ！ 本製品から複数のコンポーネントが突き出した状態にしてお く とエンクロージャが転倒する恐れがあります。 転倒リスクを回避するた めに、 エンクロージャからはコンポーネントが突き出ないようにして下 さい。 • 本製品の上に何も載せないで下さい。 複数のエンクロージャを重ねて設 置しないで下さい。 • 液体物をエンクロージャに近づけないようにして下さい。 • エンクロージャ自身と中に積載する装置の総重量に耐えられるエリアに 設置して下さい。 • この製品にはアースが必要です。 アース接続をしていない状態で本製品 を使用しないでください。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 9: Table Of Contents
Replacing the Cable Covers ..............15 Reverse the front door ................15 Adjust the depth of the mounting rails ..........17 Mount the enclosure to the wall ............18 Install equipment ...................19 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Diagram
Product Diagram Front Door Cable Access Cover Rear Door Cable Access Opening Horizontal Mounting Rail Side Panel Vertical Mounting Rail Vent To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Product Information
Phillips type screwdriver • Appropriate tools and mounting hardware for the type of • wall you’re using Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/RK1232WALHM. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Ground The Enclosure
Use an M6 screw to attach a grounding wire to the front or rear grounding point on the enclosure. Route the wire under the frame of the enclosure and connect the wire to your facility’s earth ground connection. Grounding Wire To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Lock Or Unlock The Front Or Rear Door
If the side panels are locked, use the provided side panel keys to unlock the panels. Pull the two tabs on the side panel towards the center of the panel. Removing the Side Panel To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 14: Installing The Side Panels
Pull the two tabs on the side panel towards the center of the panel, push the top part of the side panel into the enclosure, and release the tabs. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 15: Access Your Cables
Pull the cable access cover away from the enclosure. (figure Removing the Cable Covers To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 16: Replacing The Cable Covers
In the bottom corner of the inside of the front door, pull the lever up and remove the front door from the enclosure. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 17 In the bottom corner of the front door, pull the lever up and release it into the washer and hole in the enclosure. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 18: Adjust The Depth Of The Mounting Rails
Slide the mounting rail to the depth of the cage nuts and use a Phillips type screwdriver to install and tighten the screws that you removed in step 1. Move the Mounting Rails To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 19: Mount The Enclosure To The Wall
Caution! The enclosure is extremely heavy and you should not attempt to lift and hang the enclosure without the assistance of other people. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 20: Install Equipment
Line up the mounting holes on the equipment with the cage nuts. Insert the screws through the mounting holes on the equipment and into the cage nuts. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 21 Limitation of Liability In no event shall it be the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
