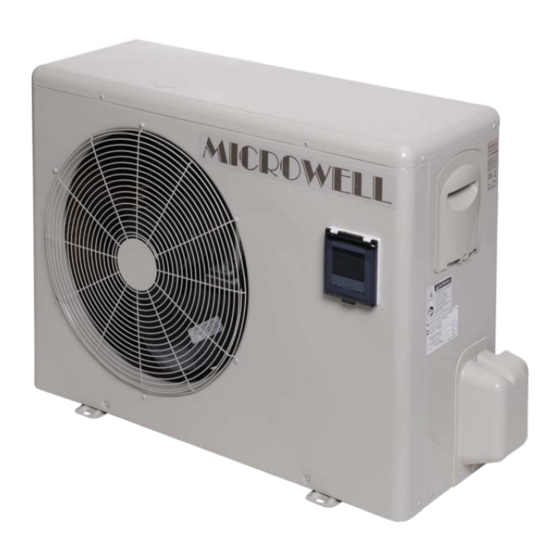

  • Page 1 HEAT PUMP for swimming pool water Installation and user manual heating & cooling HP 1000 SPLIT OMEGA & HP 1400 SPLIT OMEGA Version: 01/2018...

  • Page 2: Table Of Contents

    P a g e 2 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Thank you for purchasing Microwell swimming pool heat pump. Before you use this device, it is necessary to carefully read the entire Installation and user manual.
  • Page 3 H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 3 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Control of the circulation pump ....................

  • Page 4: Introduction

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 4 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 5: Package Checking

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 5 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Ideal water temperature for external pools is considered at levels from 27°...

  • Page 6: Safety Measures

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 6 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 7: Handling Precautions

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 7 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 swimming pool.

  • Page 8: Technical Specification

    O M E G A P a g e 8 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 3. TECHNICAL SPECIFICATION Technical data HP 1000 SPLIT OMEGA HP 1400 SPLIT OMEGA 25°C/10°C 25°C/20°C 25°C/10°C 25°C/20°C...

  • Page 9: Swimming Pool Water Parameters

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 9 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Swimming pool water parameters...

  • Page 10: Security And Control Systems

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 1 0 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...
  • Page 11 H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 1 1 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Safety systems:...

  • Page 12: Block Wiring Diagram Of The Pcb Board - Display On Condensing Unit

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 1 2 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 13: Block Wiring Diagram Of The Pcb Board - Display On Water Unit

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 1 3 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Block wiring diagram of the PCB board –...

  • Page 14: Heat Pump Installation And Connection

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 1 4 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 15: Connection To Water Filtration Circuit

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 1 5 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Connection to water filtration circuit...

  • Page 16: Needed Components For Connection To Water Circuit

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 1 6 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...
  • Page 17 H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 1 7 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Scheme: Connection of the split heat pump into the water filtration circuit of the...

  • Page 18: Electrical Connection

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 1 8 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...
  • Page 19 H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 1 9 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Condensing unit is pre-precharged with refrigerant R410A from the factory.

  • Page 20: Flaring Work

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 2 0 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...
  • Page 21 H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 2 1 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 2.

  • Page 22: Seaside Installation

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 2 2 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 23: Multiple Heat Pump Connection

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 2 3 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 In any case you should avoid a direct exposure of sea wind.

  • Page 24: Control Of The Circulation Pump

    28°C Control of the circulation pump Microwell swimming pool heat pump is able to control the circulation pump. In principle should the heat pump be in need for heating/cooling it will automatically turn the circulation pump on. In order to enable this control, the circulation pump must be connected to the heat pump electrically 3.6 Block wiring diagram of the PCB board –...

  • Page 25: Separate Water Circuit

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 2 5 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 microECONOMY+ mode provides optimum water temperature conditioning at lowest cost.
  • Page 26 I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 2 6 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 27: Regulation

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 2 7 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 5.

  • Page 28: General Heat Pump Control

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 2 8 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 29: Heat Pump Operational Modes

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 2 9 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Heat pump operational modes...

  • Page 30: Child Lock

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 3 0 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 31: Setting Of The Operating Parameters

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 3 1 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 parameter ‘14’...

  • Page 32: Accessories

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 3 2 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 33: Condensate Tray Defrost

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 3 3 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Condensate tray defrost...

  • Page 34: Defrosting

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 3 4 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 35: Heat Pump Season Start

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 3 5 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 6.

  • Page 36: Failure Reports

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 3 6 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...
  • Page 37 H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 3 7 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 Heat pump...

  • Page 38: Troubleshooting - Save Time And Money

    I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 3 8 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 39: Maintanance & Warranty

    H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A I n s t a l l a t i o n a n d u s e r m a n u a l P a g e 3 9 / 2 8 V e r s i o n : 0 1 / 2 0 1 8 pump.
  • Page 40 I n s t a l l a t i o n a n d u s e r m a n u a l H P 1 0 0 0 / 1 4 0 0 S P L I T O M E G A P a g e 4 0 / 2 8 V e r s i o n : 0 1 / 2 0 1 8...

  • Page 41: Warranty

    Installation and user manual is excluded from warranty coverage. Distributed by: Manufacturer: MICROWELL, spol. s r.o. SNP 2018/42, 927 01 Sala, Slovakia tel.: +421/31/702 0540 fax: +421/31/702 0542 e-mail: microwell@microwell.sk...
