Installation of this product requires detailed knowledge of automotive systems and repair procedures. We
recommend that this installation be carried out by a qualified automotive technician.
Installation of this product requires handling of gasoline. Ensure you are working in a well ventilated area
with an approved fire extinguisher nearby. Extinguish all open flames, prohibit smoking and eliminate all sources
of ignition in the area of the vehicle before proceeding with the installation.
When installing this product, wear eye goggles and other safety apparel as needed to protect yourself
from debris and sprayed gasoline.
The fuel system is under pressure. Do not open the fuel system until the pressure has been relieved.
Refer to the appropriate vehicle service manual for the procedure and precautions for relieving the fuel system
pressure.

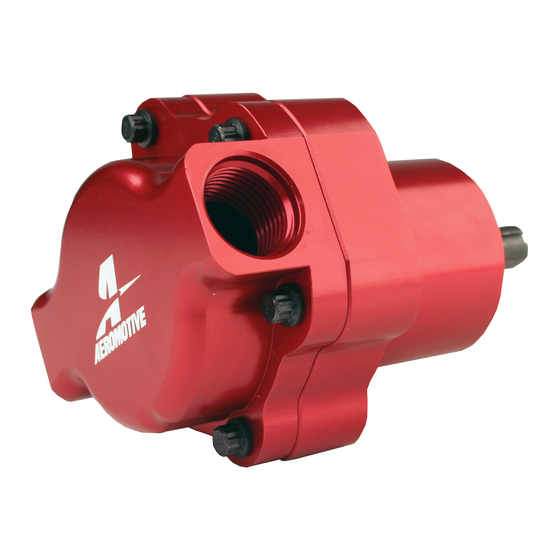

The enclosed Aeromotive fuel pump utilizes an o-ring sealed AN-10 style inlet and outlet ports; these ports are NOT PIPE
THREAD and utilize NO THREAD SEALANT.
A high capacity 100 micron fuel filter must be installed between the fuel tank and pump inlet as well as a high capacity 10
micron fuel filter on the pump outlet. We recommend an Aeromotive P/N 12302 on the inlet side and an Aeromotive P/N
12301 on the outlet side. Call us for info.
To use this pump in your vehicle's fuel system, we strongly recommend the following:
Gravity feed the pump by mounting it lower than the fuel cell.
Utilize AN-10 size high pressure fuel lines, fittings and o-rings for all connections from the
fuel cell to the engine.
Failure to follow the above recommendations may result in fuel leakage, bursting of the fuel lines, poor vehicle
performance and/or decreased fuel pump life! Improper installation will void all warranties for this product!
Aeromotive system components are not legal for sale or use on emission controlled motor vehicles.
Performance Specifications: Model 11105
Fuel Compatibility
Port Sizes
Pump mounting:
Pump should be mounted as low as possible to ease priming.
Due to the large number of applications, no specific mounting instructions are provided.
Pump should turn at half the engine speed.
Recommend a 28-tooth pulley on the pump and a 14-tooth pulley on the crank shaft.
Call for details on Aeromotive mounting kits.
AEROMOTIVE Part # 11105
INSTALLATION INSTRUCTIONS
CAUTION:
WARNING!
Gasoline & Methyl Alcohol
Inlet & Outlet AN-10
Not For Street Use!
Advertisement
Table of Contents
Related Manuals for Aeromotive 11105
Summary of Contents for Aeromotive 11105
- Page 1 A high capacity 100 micron fuel filter must be installed between the fuel tank and pump inlet as well as a high capacity 10 micron fuel filter on the pump outlet. We recommend an Aeromotive P/N 12302 on the inlet side and an Aeromotive P/N 12301 on the outlet side.
- Page 2 2. Raise the vehicle and support it with jack stands. 3. Find a suitable place on the engine or chassis to mount the Aeromotive fuel pump. Make sure the location will accommodate the pump mounting bracket, will position the pump as low as possible, is clear of the exhaust, is clear of any moving suspension or drivetrain components and will keep the pump clear of track obstructions or debris.
- Page 3 8. If you are using this fuel pump with an EFI style fuel system we recommend using Aeromotive p/n 13110 Fuel Pressure Regulator. 9. Ensure that any spilled fuel and any fuel soaked shop towels are cleaned up and removed from the vicinity of...
- Page 4 AEROMOTIVE, INC. LIMITED WARRANTY This Aeromotive Product, with proof of purchase dated on or after January 1, 2003, is warranted to be free from defects in materials and workmanship for a period of one year from the original date of purchase.
