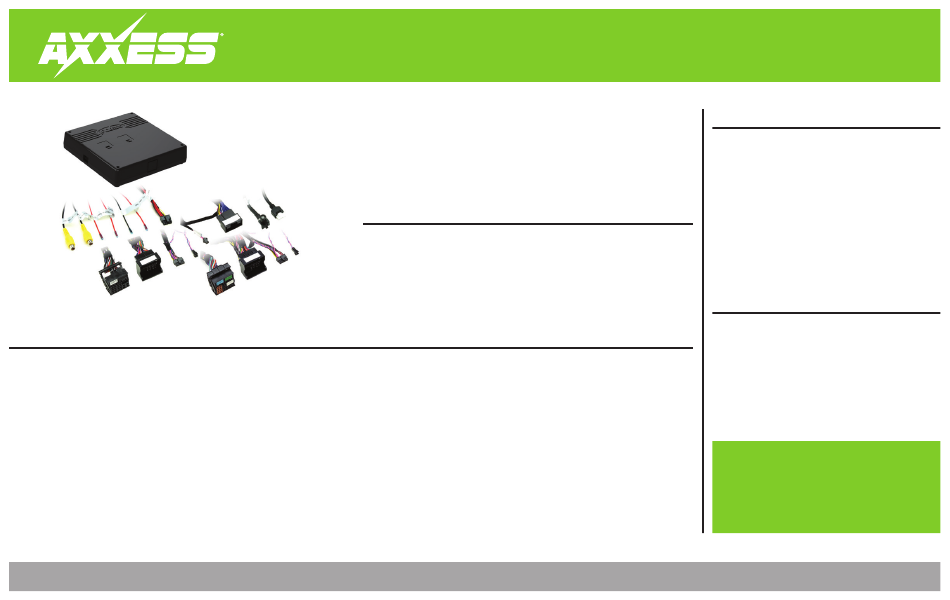

INTERFACE COMPONENTS
• AX-AM-AU95 interface
• AX-AM-AU95 harness (new style)
• AX-AM-AU95 harness (old style)
• 20-pin "T" harness
• 6-pin to 4-pin LVDS (video) cable
• 10-pin harness with RCA jacks
AxxessInterfaces.com
Audi A1 (Typ 8X)
(with Concert Radio)
HDMI and Camera Interface
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
INTERFACE FEATURES
• Provides front and rear camera inputs to the factory display screen
• Provides an HDMI input to the factory display screen *
• Micro "B" USB updatable
* The factory radio must have an AUX input
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
AX-AM-AU95
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections to be made .......................................2
2010-up*
Configuring the AX-AM-AU95 ...............................3
Installing the AX-AM-AU95....................................4
User guide ..............................................................5
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.)
CAUTION!
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
All accessories, switches, climate
REV. 6/30/18 INSTAX-AM-AU95
Advertisement
Table of Contents
Related Manuals for Axxess AX-AM-AU95
Summary of Contents for Axxess AX-AM-AU95
- Page 1 • Wire cutter • Crimp tool • Solder gun • Tape INTERFACE COMPONENTS • Connectors (example: butt-connectors, bell • AX-AM-AU95 interface caps, etc.) • AX-AM-AU95 harness (new style) • AX-AM-AU95 harness (old style) • 20-pin “T” harness • 6-pin to 4-pin LVDS (video) cable • 10-pin harness with RCA jacks...
- Page 2 • If installing a front camera, connect the RCA jack labeled “Front Camera Video Input” (Connections Diagram) to the camera. • If adding an HDMI input to the factory display screen, connect an HDMI cable (Axxess part number AX-HDCABLE, sold separately), to the port on the AX-AM-AU95 labeled “HDMI IN”.
- Page 3 CONFIGURING THE AX-AM-AU95 Dip switch settings Remove the access door located on the top of the AX-AM-AU95 interface to access the dip switches. Dip 1 Dip 2 Dip 3 Dips 4 & 5 If the vehicle is equipped with a factory...
- Page 4 • Connect the factory male factory connector into the female plug from the 20-pin “T” harness. • Connect the 2-pin connector from the 20-pin “T” harness to the AX- AM-AU95 harness. • Connect the 10-pin harness with RCA jacks into the AX-AM-AU95 interface. (Figure B)
- Page 5 USER GUIDE Button Configuration • There are (3) different sets of factory buttons used to operate the AX-AM-AU95 depending on the trim level of the vehicle. Type 1 Type 2 Without Steering Wheel Controls HDMI access Rear camera access • Select AUX-IN as a source from the factory radio.
- Page 7 REV. 6/30/2018 INSTAX-AM-AU95...
- Page 8 AX-AM-AU95 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
