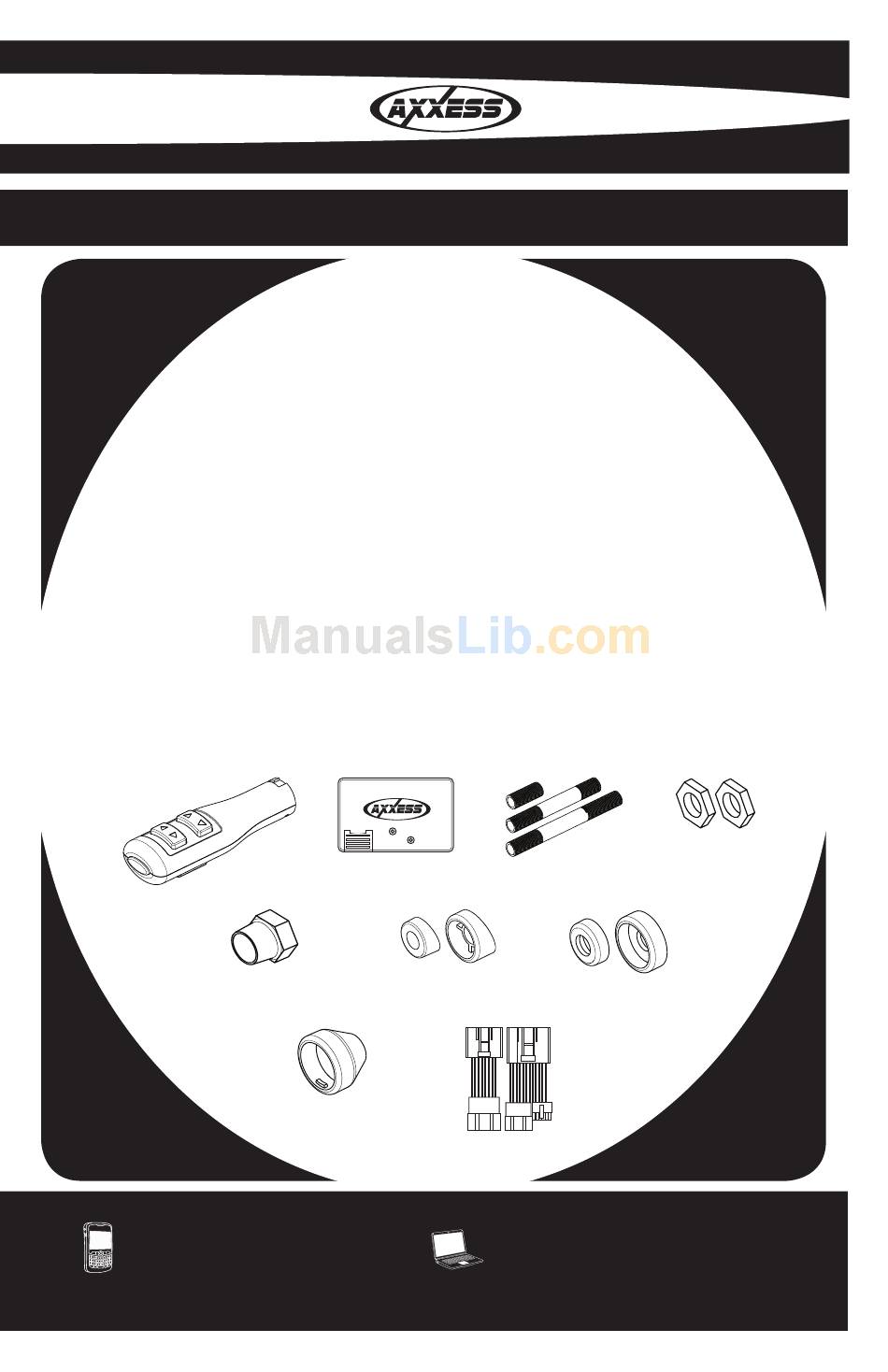

INSTALLATION INSTRUCTIONS FOR PART OESWC-LAN29-STK OESWC-LAN29-STK The OESWC-LAN29-STK is designed to allow you to add steering wheel control options to 2006 and up GM LAN29 vehicles. The column mounted OESWC- LAN29-STK will allow the customer to adjust their radio without taking their eyes off the road.
TOOLS REQUIRED FOR INSTALLATION •Cutting Tool •Tape •Crimping Tool •Connectors (I.E. butt-connectors, bell caps, ECT…) • Female Spade Connectors *Important: Please check steering shroud before drilling to make sure you have enough depth.
Page 3
ASWCSTALK ASSEMBLY 1. Remove and drill a 3/8 hole in the steering wheel shroud. 2. Select desired length rod and thread a 3/8 hex nut on to the shorter threaded section. 3. Run the four wires from the ASWCSTALK through the rod of choice and screw it into the ASWCSTALK 4.
Page 4
Wiring Of ASWCSTALK And Interface 1. Connect the BLACK wires of the ASWCSTALK and the BLACK wire of the interface to ground. You may use the same ground point that is used for the radio. 2. Connect the GREEN/ORANGE and BLACK/GREEN wires of the ASWCSTALK to the corresponding wires on the interface.
Page 5
8. Make sure the steering wheel control buttons function correctly in the vehicle and enjoy your radio. If the ASWCSTALK is mounted on the right side of the steering column follow the instructions below. (Auto-detect must be done first) Turn the ignition on Press the MODE on the ASWCSTALK for 10 seconds Then press volume up for 2 seconds The ASWCSTALK is now configured for the right side.
Page 6
Volume up Volume down Seek up Seek down Mode (source) Volume up Volume down Seek up Seek down Mode (source)
