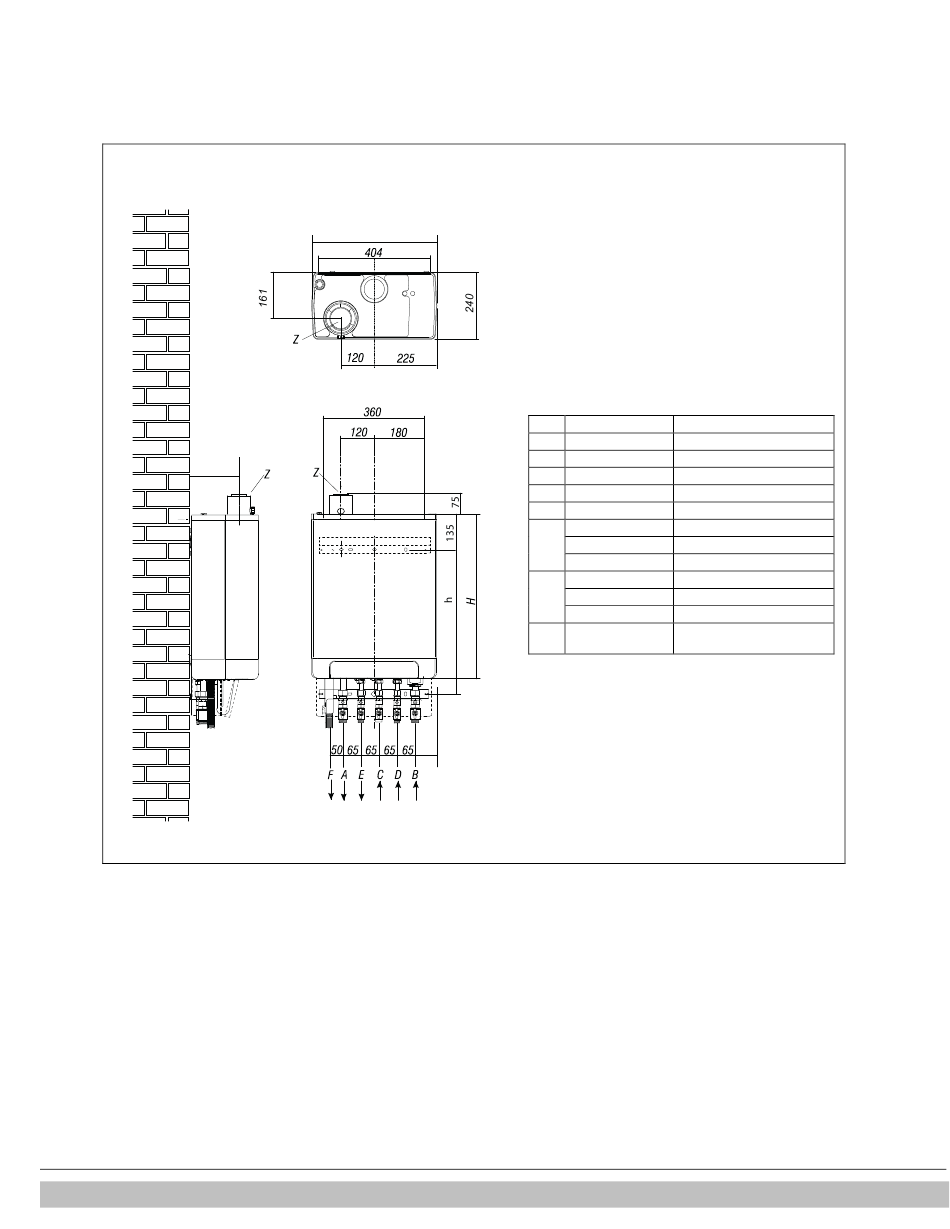

4.1 Installation measurements
Boiler mounted directly to the wall
161
Daikin Europe NV
450
Connections:
A =
B =
C =
D =
E =
F =
h=
H=
Z =
77
020601002
Supply CH G ¾" (ext)
Return CH G ¾" (ext)
Gas G ½" (int)
Tap water cold G ½" (ext)
Tap water warm G ½" (ext)
Condense outlet Ø dn25 (flexible)
517mm EKOMB22AAV1
577mm EKOMB28AAV1
637mm EKOMB33AAV1
590mm EKOMB22AAV1
650mm EKOMB28AAV1
710mm EKOMB33AAV1
Flue gas outlet/air Ø60/100 (concentric)
inlet
