ASSEMBLY

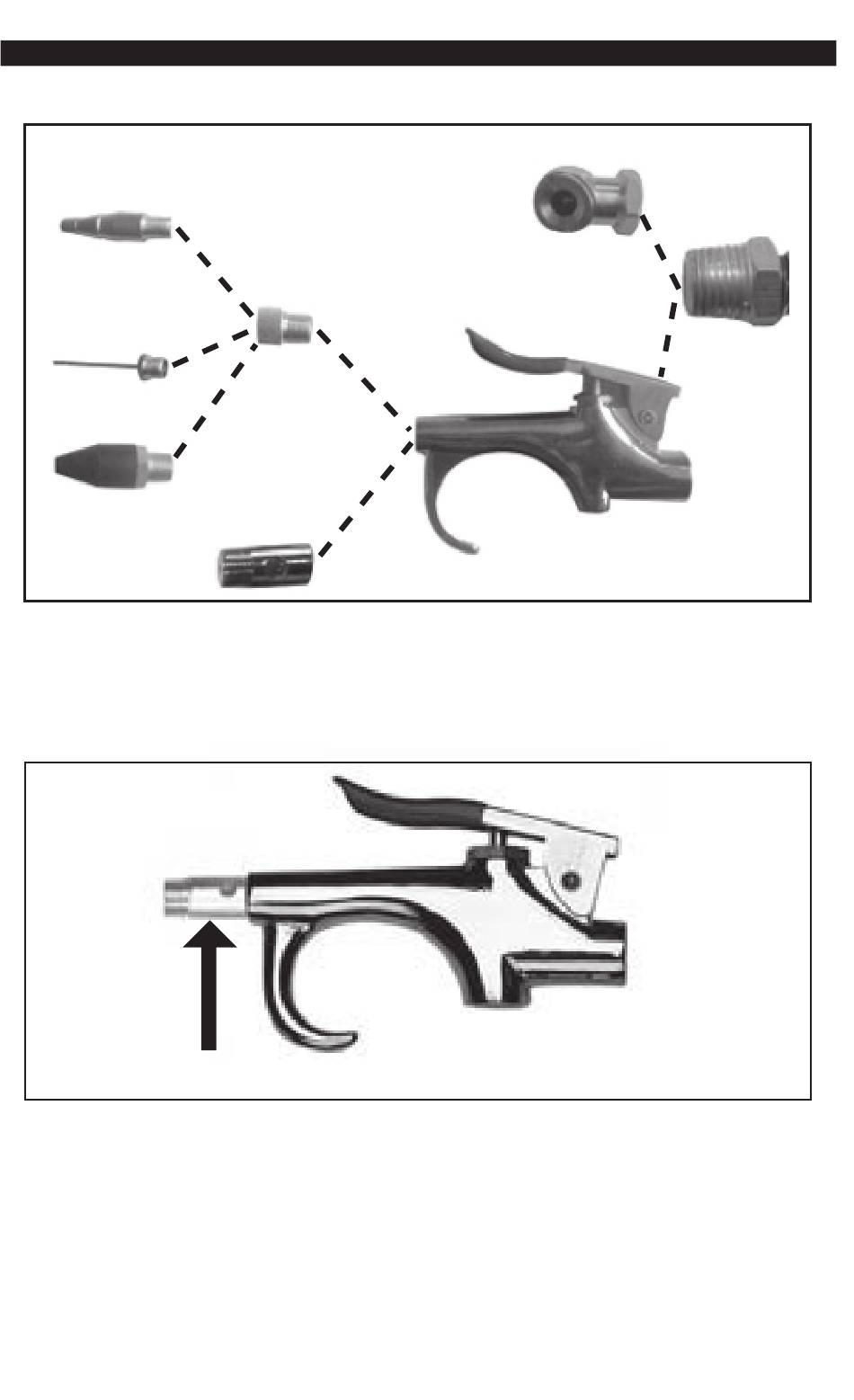

Assemble Accessory Kit (Fig. B)
a
g
b
e
f
c
h
d
Fig. B
To Assemble Female Tire Chuck
1. Assemble female tire chuck (a) to hose (b) and tighten securely with wrenches.
To Assemble Accessories
1. Attach the blow gun (c) to hose (b).
Risk of unsafe operation. If an accessory is not being used with the blow gun,
the safety nozzle MUST be assembled.
Fig. C
safety nozzle
2. Assemble the safety nozzle (d), or blow gun adapter (e) to blow gun.
NOTE: To use the inflating needle (f) or the tapered inflator(g) or rubber blow
gun tip (h), need to use the blow gun adapter(e) to assembled to the blow gun.
3. Attach the inflation needle(f) to the blow gun adapter on the blower gun.
