Summary of Contents for Westinghouse WSF6725I

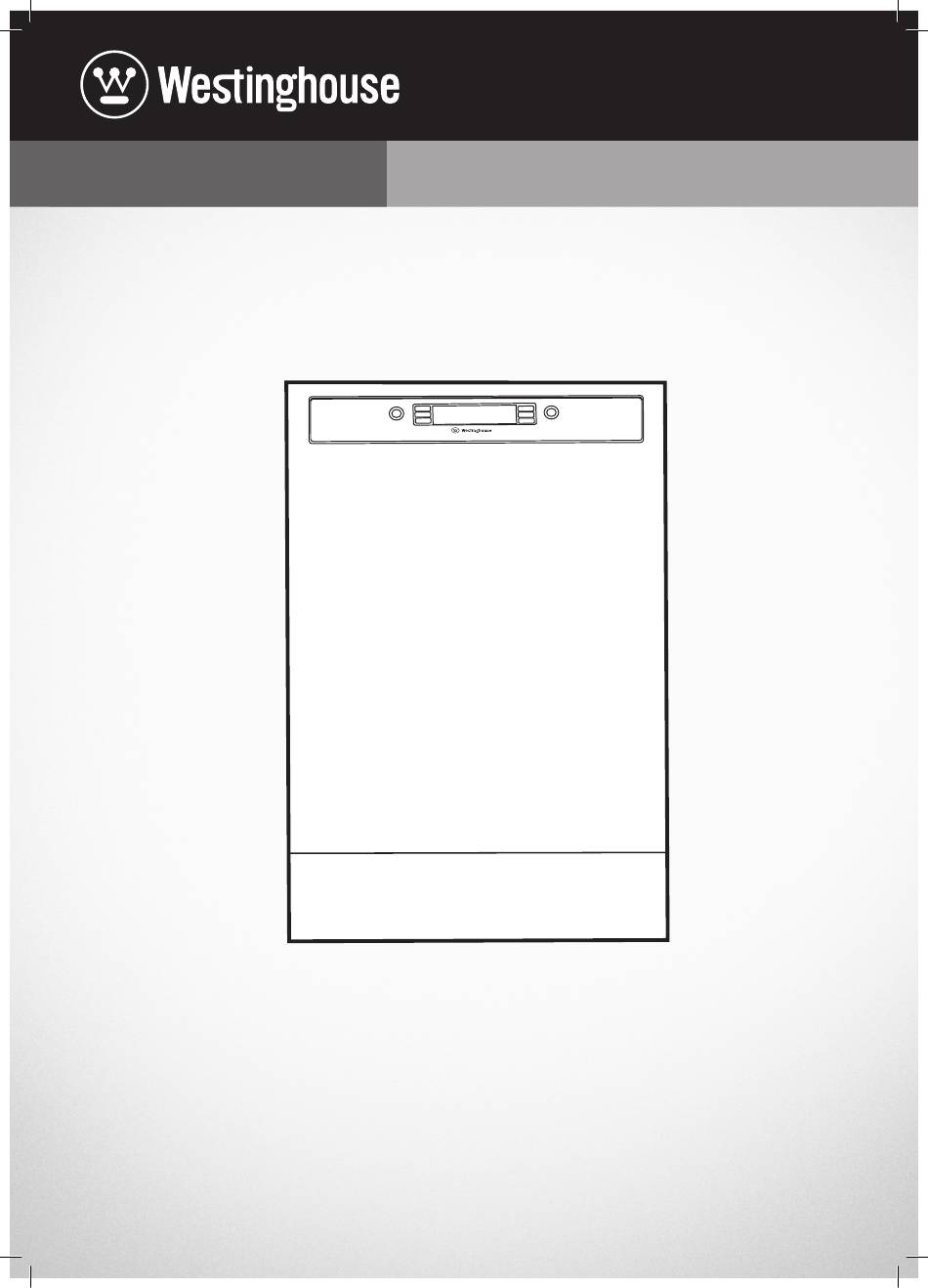

- Page 1 USER MANUAL DISHWASHER WSF6725I...
-
Page 2: Table Of Contents
CONGRATULATIONS Dear customer, Safety information �������������������������������������������������������������������������������3 Safety instructions ������������������������������������������������������������������������������ 4 Congratulations on the purchase of your new Westinghouse dishwasher� Product description ����������������������������������������������������������������������������5 Technical specifications ��������������������������������������������������������������������5 Before you use the dishwasher, we recommend that you Control panel ����������������������������������������������������������������������������������������� 6 read through the whole user manual which provides the description of the dishwasher and its functions�... -
Page 3: Safety Information
GENERAL WARNINGS Please read the user manual carefully and store in a handy place for later reference� Pass the user manual on to WARNING WARNING possible new owners of the appliance� It is important to use your appliance safely. Check these safety points before using your appliance. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING WARNING WARNING WARNING Risk of fire and electrical shock. Dangerous voltage • If the water inlet hose is damaged, immediately Electrical connection disconnect the mains plug from the mains socket� Contact the Authorised Service Centre to replace the •... -
Page 5: Product Description
Rating plate Air vent Rinse aid dispenser Detergent dispenser Lower basket Upper basket Cutlery basket Ceiling spray Active drying vent TECHNICAL SPECIFICATIONS MODEL WSF6725I - freestanding Capacity 15 place settings Height 850mm Height (without worktop) 820mm Width 598mm Depth 598mm... -
Page 6: Control Panel
CONTROL PANEL On/off button Rinse aid level warning display Door handle Remaining time/delay Start/standby button Progress indicator • Washing phase FlexZone button • Rinsing phase Program button • Drying phase Tablet detergent button • End indicator Hygiene button Delay indicator Delay button Child Lock indicator Dry Plus button... -
Page 7: Control Description
CONTROL DESCRIPTIONS Power on/off button Delay button When you press the on/off button, the machine is Once a program is selected and before the program switched on and the display shows the Eco 50 program, starts, you may adjust the delay time by pressing the the dishwasher is off when the LEDs on the display are off�... -
Page 8: Programs
PROGRAMS DISPLAY SYMBOL FAST QUICK TIMESAVE PROGRAM PREWASH 30 MINS ECO 50°C AUTO AUTO AUTO 18 MINS 50 MINS 40°C WASHING 35°C 40°C ***50°C 65°C 30-50°C 50-60°C 60-70°C TEMP Old soups, Fresh light Fresh light sauces, Fresh light Fresh light contamination, contamination, FOOD... -
Page 9: Settings
SETTINGS Starting the machine Cancelling program 1� Press on/off switch� If you want to cancel the program once it has started; 2� Select the appropriate program for your dishes using • Hold the start/standby button for 3 seconds� the program button� •... -
Page 10: Hints And Tips
HINTS AND TIPS If one of program monitor lights is on and If there are partial food wastes left on the dishes start/pause light is flashing • Dishes are placed incorrectly into the machine, sprayed water did not reach related places� •... -
Page 11: Installation
INSTALLATION General Inlet water supply • When determining where to put your machine, • Water pressure: 800kPa max – 50 kPa min� choose a place where you can easily load and unload • Water flow rate 10 L/minute your dishes� •... - Page 12 INSTALLATION Installing a freestanding dishwasher If the under counter height is greater than 850mm, the dishwasher can be installed without removing the worktop� remove entire internal If the under counter space is less than 850mm but greater membrane than 820mm the worktop will need to be removed� To remove the worktop, remove the screws located at the rear of the machine, then, from the front, push the worktop towards the rear and lift�...
- Page 13 INSTALLATION In some cases you may need to remove the top concrete Finishing the installation counterwieght and trim the felt with a knife� To remove 1� Fit the steam protection tape to the underside of the the counterweight, follow the steps below� countertop�...
-
Page 14: Preaparing For Use
PREPARING FOR USE Detergent usage Combined detergent Use a detergent specifically designed for use in domestic Detergent manufacturers also produce combined dishwashers� You can find powder, gel and tablet detergents called “2 in 1”, “3 in 1” or “5 in 1” etc� “2 in 1” detergents in the market that have been designed for detergents contain detergent + rinse aid�... - Page 15 PREPARING FOR USE WARNING CAUTION Solubility of the tablet detergents produced by different companies can vary depending on the temperature and time� Therefore, it is not recommended to use such detergents in short programs� It is more suitable to use powder detergents in such programs�...
-
Page 16: Loading
LOADING YOUR DISHWASHER Top basket height adjustment while full If your dishes are correctly placed in the dishwasher, you will be using it in the best way in terms of energy Basket height adjustment mechanism on the top basket consumption, washing and drying performance� of your machine is designed to let you adjust the height There are two separate baskets for you to load your of your top basket (refer to diagram... - Page 17 LOADING YOUR DISHWASHER Spoon rack/Glass support It allows your long-stemmed glasses to be washed safely as well as providing a convenient alternative location to wash spoons and forks� Do not lean your long-stemmed goblets and glasses against each other but towards the spoon rack, so that during the washing cycle this prevents glasses and goblets from being damaged�...
- Page 18 LOADING YOUR DISHWASHER Lower Basket Folding Racks Folding tines (prongs) consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc� If required, each rack can be folded separately, or all of them can be folded and larger spaces created�...
- Page 19 LOADING YOUR DISHWASHER Alternative cutlery basket positions The cutlery basket handle is adjustable - position (a) or (b)� The basket can be used in the upper or lower dishwasher basket as required� By placing your modular cutlery basket in different places of the upper or lower basket, you can create suitable locations for your other dishes�...
- Page 20 LOADING YOUR DISHWASHER Alternative modular basket position Alternative basket loads Lower Basket LOADING YOUR DISHWASHER...
-
Page 21: Maintenance And Cleaning
MAINTENANCE AND CLEANING TIPS & INFORMATION IMPORTANT Cleaning the machine in regular intervals prolongs the machine’s service life� Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; • Fill the detergent compartment without loading any dishes into the machine, select a program that runs at high temperature, and start the machine�... -
Page 22: Troubleshooting
TROUBLESHOOTING ERROR CODE ERROR DESCRIPTION CONTROL • Power off your machine and close the tap� Overfill • Contact the customer service centre� • Water discharge hose is clogged� • The filters of your machine might be clogged� • Power off-on your machine and activate the Not draining�... -
Page 23: Warranty
Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: DISHWASHER This document sets out the terms and conditions of the product You may not make a claim under this warranty unless the defect claimed is warranties for Electrolux Appliances. It is an important document. due to faulty or defective parts or workmanship. - Page 24 The Electrolux Group to consumers including delivery, home service and spare parts� and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation� Used under license by Electrolux Home Products Pty Ltd� All Rights Reserved� © 2016 Electrolux Home Products Pty Ltd�...
