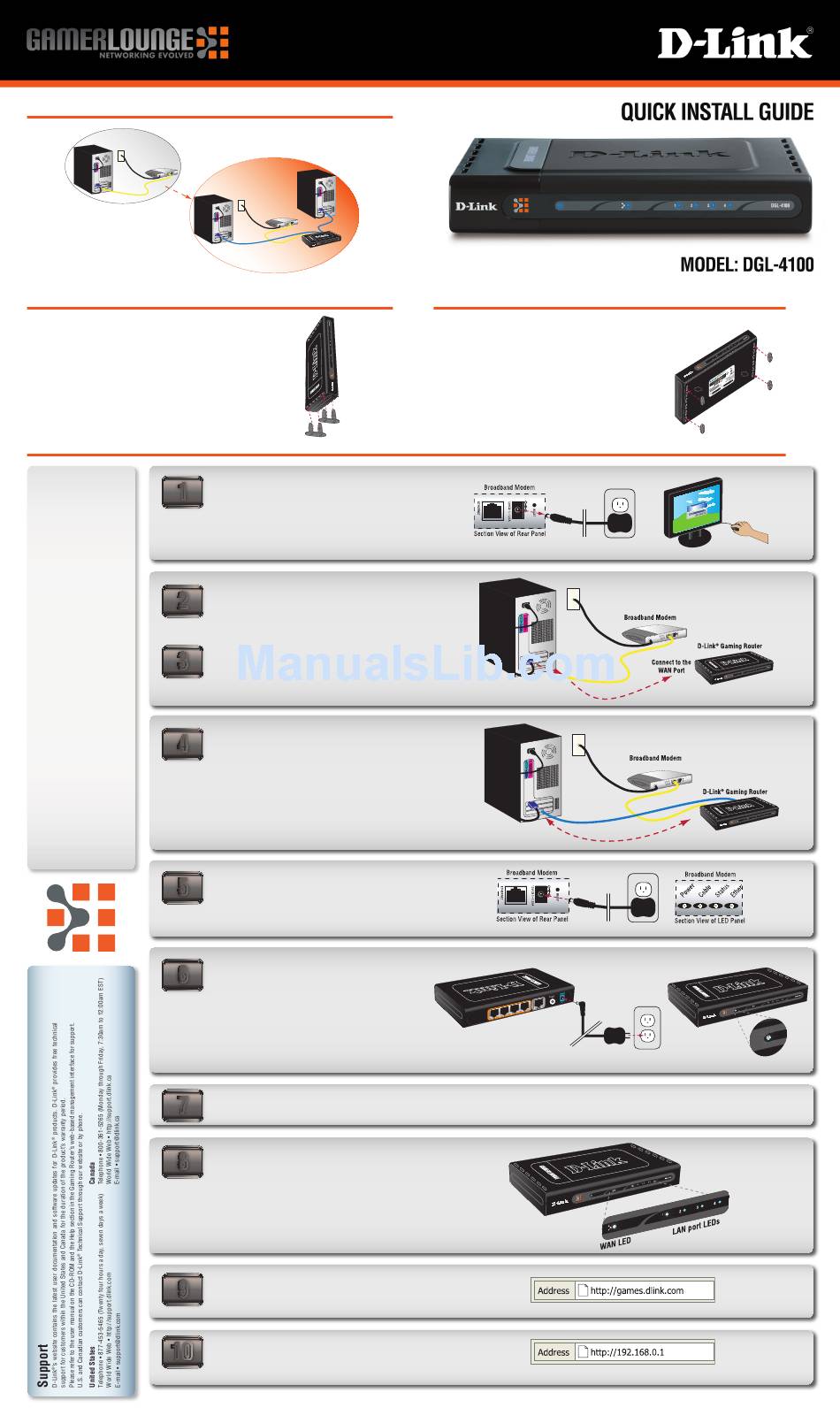

Existing Network > New Network
Existing Network
Broadband Modem
Vertical Stands
Vertical stacking stands are provided so that you can place your
D-Link
Gaming Router in a vertical position. Positioning the unit
®
vertically saves space and allows the unit to remain cooler.
To attach the vertical stands, simply slide the vertical stands into
the slotted grooves on the top and bottom panels of the D-Link
Gaming Router.
Hardware Installation
TCP/IP Settings
1
IP Address:
____.____.____.____
Subnet Mask:
____.____.____.____
2
Default Gateway:
____.____.____.____
Primary DNS:
3
____.____.____.____
Secondary DNS:
____.____.____.____
4
PPPoE Settings
Name:
__________________
Password:
__________________
5
6
7
8
9
10
New Network
Broadband Modem
D-Link
®
Gaming Router
®
Unplug the power from your broadband modem and
shut down your computer.
Disconnect the Ethernet cable connected from your
computer to your broadband modem. Leave the end
connected to your broadband modem attached.
Connect the end of the Ethernet cable removed from
your computer to the WAN port on the router.
Connect the provided Ethernet cable from a numbered
port on the router to your computer.
Plug the power back into your broadband modem and
wait for the broadband modem to sychronize to the
network (refer to the Modem manual for information
on this).
Plug the power adapter (provided with the router) into
the router, then connect the other end to a power outlet
and verify that the POWER LED on the router is on.
Note: If the Power LED is not lit, verify that the power
adapter is properly connected to the D-Link
Router and to a working power outlet.
Power on your computer.
Verify that the WAN and LAN port (corresponding to
where the computer was connected in step 4) LED's
are on.
Note: If the WAN LED is not lit, check the connection of
the Ethernet cable from the Broadband modem to the
WAN port of the D-Link
Gaming Router as detailed in
®
steps 2-3. If the LAN LED is not lit, check the connection
of the Ethernet cable as detailed in step 4.
Launch your web browser and type in a web address
such as http://games.dlink.com to verify that you have
an Internet connection.
Ifawebaddressisnotaccessible,enterhttp://192.168.0.1
in your web browser address bar. Once the main screen
appears, press the button labeled Internet Connection
Setup Wizard and proceed through the wizard.
© 2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice. Version 1.0 Revised 11/25/2004
Rubber Feet
Rubber Feet are provided to allow proper ventilation
when the D-Link
Gaming Router is placed horizontally
®
or stacked upon other D-Link
To attach the rubber feet, simply press the rubber feet
into the four corners on the bottom panel of the D-Link
Gaming Router.
Gaming
®
For additional details on the Internect Connection Setup Wizard, please refer to the User Manual on the CD-ROM
stackable products.
®
®
r L E D
