Summary of Contents for CyberHome HGL 1700

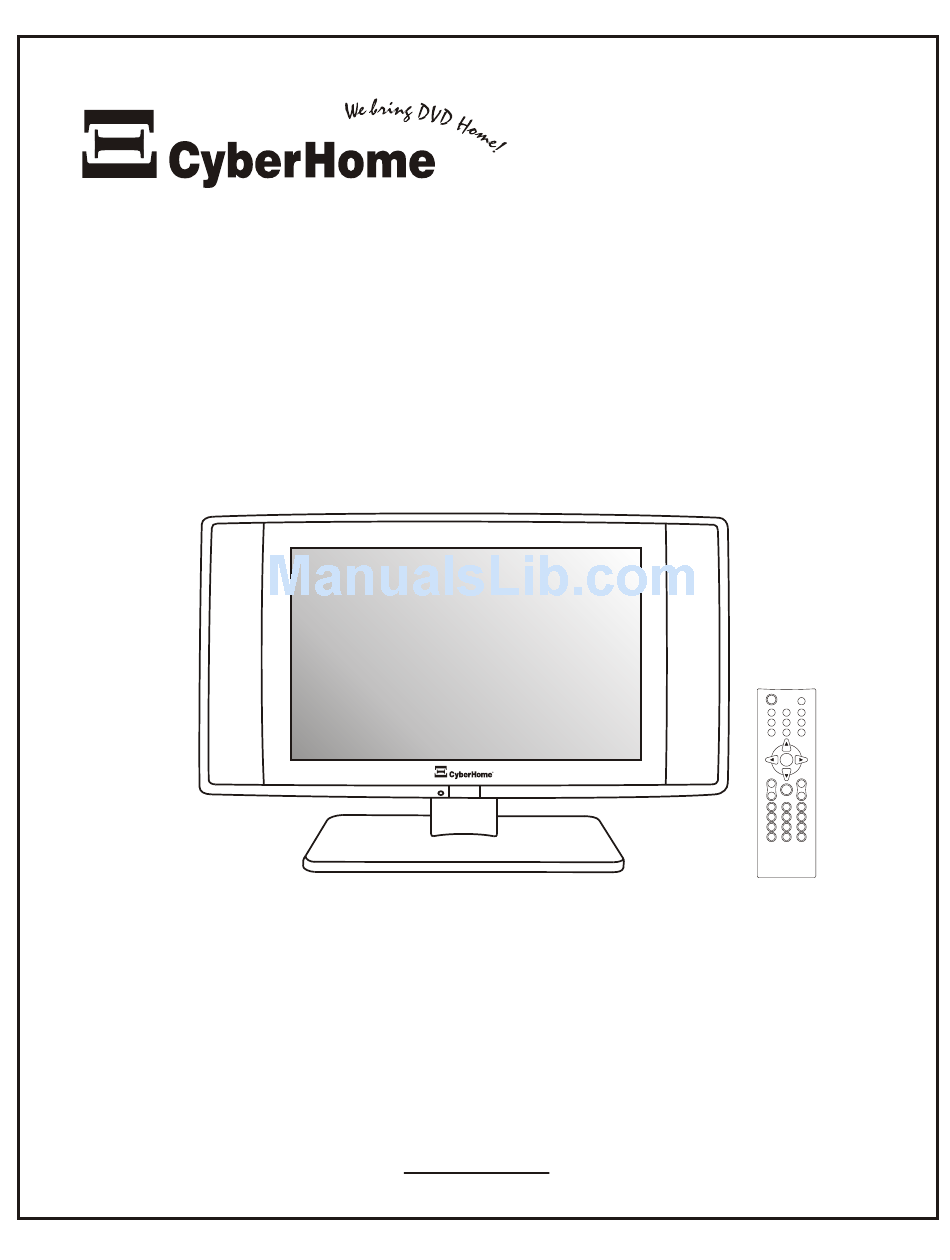

- Page 1 17” HDTV-READY LCD TELEVISION With Two Component Inputs CH-HGL 1700 Operation Guide ® HDTV...
- Page 2 TV, interference may appear on the TV screen while you are watching a TV broadcast, if the unit is switched on. This is not a malfunction of the the TV. SAVE THESE INSTRUCTIONS...
-
Page 3: Table Of Contents
Back panel connections ..... 9 CONNECTIONS TO TELEVISION Connecting to Antenna / Cable TV ... 10 Connecting power & Powering up ... 11 Component/S-Video/Composite/LR (Input 1). -
Page 4: Features
The CH-HGL 1700 is a High Definition-ready Television (HDTV) with component inputs that support scan rates of 720p and 1080i. The built in tuner enables you to enjoy all of your cable TV or Off-the-Air (OTA) stations. It has all the essentials to make it your centerpiece for an exciting home theater system. Attach your HD-capable receiver and you can start enjoying today’s hottest HD movies with superb video quality. -
Page 5: Getting Started
Make sure the package contents are complete In addition to the TV/Monitor, your package should contain the following accessories. Check the contents of the package carefully, as some items may be located under the packing foam. Remote control SLEEP INPUT SELECT... -
Page 6: How To Use The Remote Control
Replacing the remote control battery To replace the batteries in the remote control, the battery door must first be removed. Push down on the battery door release latch, see step 1, then push the door in a downward direction, see step 2. -
Page 7: Remote Control Buttons & Functions
ENTER Selects options in menus. MENU Accesses the system setup menu. CHANNEL UP/DOWN Press to change TV channel up (CH+) or down (CH-). NUMERIC KEYPAD Used to enter numeric values while setting presets, using GOTO and more CH/D Channel Delete. -
Page 8: Top & Side Panel Controls & Functions
TOP & SIDE PANEL FUNCTIONS Top View CH/CH Rear Panel View CHANNEL SELECTOR Use to select available channels with the UP and DOWN arrows. VOLUME CONTROL Adjust the audio level with the UP and DOWN arrows. ENTER Press to confirm selection from the Menu. MENU Toggle switch to turn audio on or off. -
Page 9: Back Panel Connections
Rear Panel View ANTENNA IN Connect to your cable outlet or antenna source POWER INPUT Attach the power adapter to this port SPEAKER OUTPUT (R) You may attach an external speaker (not included) to this port to extend the RIGHT speaker. HEADPHONES Use this to connect external headphones (not included) -
Page 10: Connecting To Antenna / Cable Tv
Connecting your unit to an external antenna or cable TV signal. In order to use this unit as a television or monitor, you will need to make a video connection to your TV. There are several connections supported: Composite Video - The most widely used connection, using RCA-type cables (not supplied). -
Page 11: Connecting Power & Powering Up
Connecting your unit to a power source. Locate the power input located on the back of the unit. Connect the appropriate end of the included power adapter to the unit. Plug power adapter into your household AC outlet. The power LED on the front of the unit is now red. Press the power key on the remote or the power button to power on the unit. -
Page 12: Component/S-Video/Composite/Lr (Input 1)
Obtain a special S-Video Cable and connect the S- Video outputs from your source to those on your TV. Press the “AV” key to select “S-Video”. CONNECTIONS YCbCr IN 1... -
Page 13: Vga/Component/Lr (Input 2)
Connecting your unit to an external video source - Input 2 NOTE: To use the HGL 1700 as a video monitor, you will need to purchase a separate component cable set or composite video and audio cables. To use your unit as a PC monitor, a VGA cable is provided. -
Page 14: External Audio Output Connections
CONNECTIONS Audio Output Connections Your unit features a variety of audio line outputs for connection to another receiver. Use the SPEAKER R and SPEAKER L outputs to connect your unit to external speakers (not included). Use the headphone jack to connect to a pair of headphones (not included) for a private listening environment. Optical digital audio outputs send an encoded digital bitstream, suitable for receivers with Dolby or DTS decoding capability. -
Page 15: Getting Started
Use the MENU key to return to an upper layer of the menu. Selecting Display Mode Select different display modes for this unit. It can be a TV with different audio and video input modes, or a computer monitor. SLEEP... -
Page 16: Parental Lock
When tuned in, simply press CH/A to add or CH/D, to delete the current channel. TV mode - Lock V-chip technology allows parents to use the TV rating codes to block programs that they feel are inappropriate for their children to watch. -
Page 17: Closed Caption
CC 1 is usually the signal with the captions, while another mode might show demonstration or programming function. Your TV might not receive caption signals normally if; poor reception is encountered, an old or bad recorded tape is being played or any strong interference with the TV signal. - Page 18 STEREO TV mode - Video This unit provides the ability for you to change various video settings including brightness, contrast and many other settings. Use the following settings to setup your TV to your visual enjoyment. Main Setup Video Audio...
- Page 19 Television TV mode - Video - Brightness Use this selection to adjust the Brightness of the TV picture. Brightness Press the MENU key on the remote, use the key to select “Video”. Press ENTER, select “Brightness” from the next menu and press ENTER again.
-
Page 20: On-Screen Display (Osd)
Use the ENTER key to move from the hour, minute and seconds fields. TELEVISION TIMER - ON TIME Use this selection to set the time you would like the TV to power 5 SEC 5 SEC TIMER - OFF TIME Use this selection to set the time you would like the TV to power off. -
Page 21: System Information Screen
Television TIMER - SLEEP TIME Use this selection to set a period of time you would like the TV to power off. SLEEP TIMER 15 Min 30 Min 60 Min 90 Min Press the MENU key on the remote, use the key to select “TIMER”. -
Page 22: Aspect
Television TV - ASPECT This option allows you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture. SLEEP INPUT SELECT ASPECT DISP JUMP 4:3 mode will display a 4:3 picture at its standard 4:3 size. - Page 23 MAINTENANCE INSTRUCTIONS To ensure years of enjoyment using your LCD TV, it is imperative that certain maintenance guidelines are followed. Careful and regular cleaning can extend the lifetime of your LCD TV significantly. As always, please unplug your unit before performing any maintenance procedure.
-
Page 24: Troubleshooting
THE REMOTE CONTROL DOES NOT FUNCTION Ensure the remote control is within 30 degrees of the TV’s remote control sensor located on the front panel. Ensure there are no obstacles between the remote control and the front screen of the unit. -
Page 25: Using A Vesa-Compliant Wall Or Desk Mount
® Using a VESA -compliant Wall or Desk Mount Your unit is compliant with the VESA ® FDMI Standard for mounting interfaces, hole patterns and associated cable/power supply locations for LCD monitors. Mounting hardware come in different types and sizes, and are available through third party manufacturers. -
Page 26: Lcd Panel
AUDIO TV SAP........Yes Speaker . - Page 27 Buttons-top&side panels ......8 cable TV connection ......9 closed caption .
