AlleyOOP Sports 12ft VariableBounce Trampoline System User Manual page 17

Assembly and Installation Instructions
Lower pole
Long foam tubing
Pole sleeve
18)

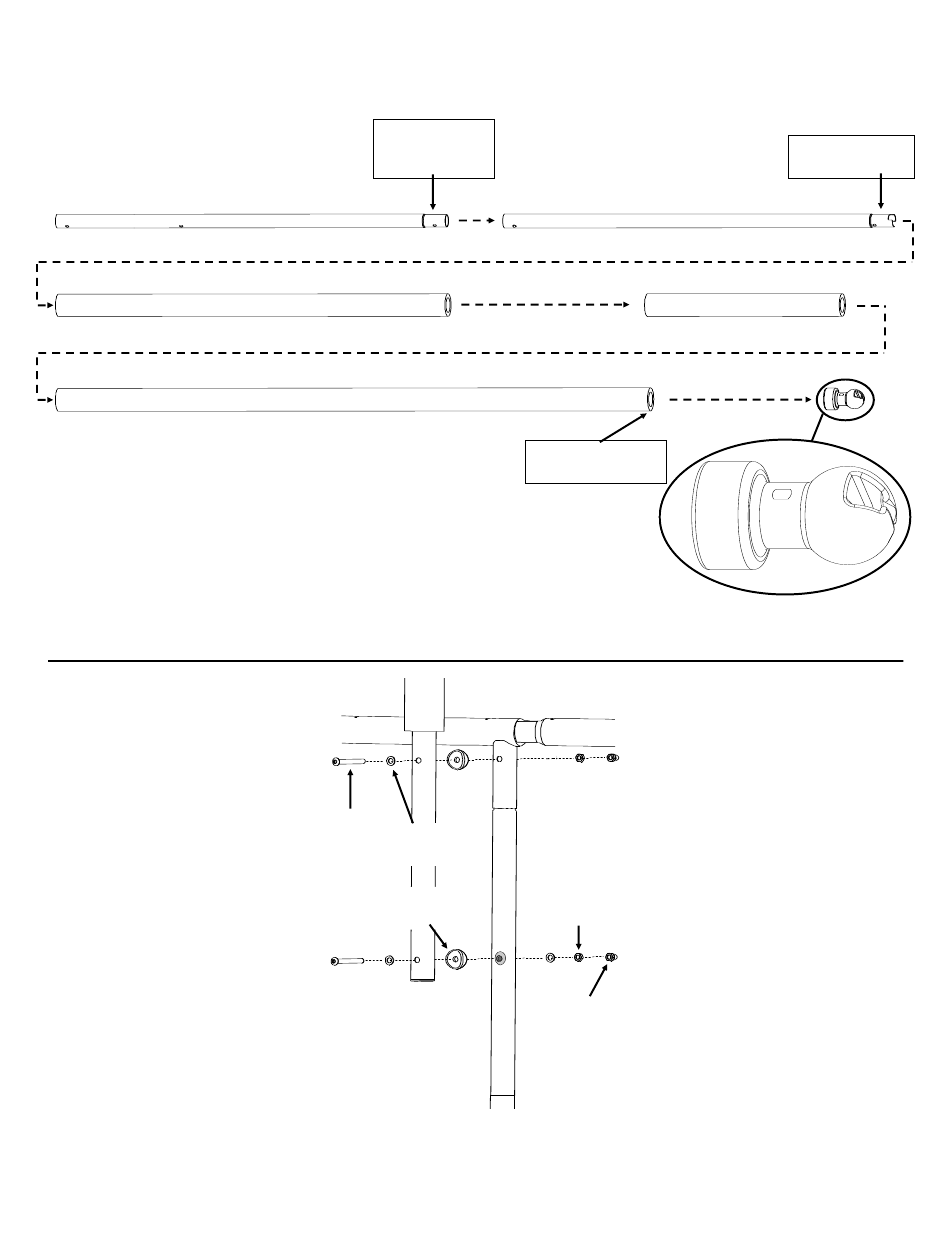

Build all pole assemblies as shown. (Pole sleeve and foam will fit up inside ball end cap.) See page 9 for detailed part
descriptions.
19)
Using the tools and hardware provided, connect a pole to the outside of each trampoline leg. Holes on bottom of pole will have
indentations on 1 side. Indentations must face in toward vertical leg. Snugly tighten bolts and Nylock nuts with wrenches. Hand-
tighten acorn nuts.
Top of lower pole
(narrower end
with snap button)
(Ref. #10)
(Ref. #12)
(Ref. #14)
Bolt
Ref. #16a
Washer
Ref. #16c
Pole spacer
Ref. #16b
Upper pole
Top of pole sleeve
(narrow end)
Nylock nut
Ref. #16d
Acorn nut
Ref. #16e
17
Top of upper pole
(notched end)
(Ref. #11)
Short foam tubing
(Ref. #13)
Ball end cap
(Ref. #15)
