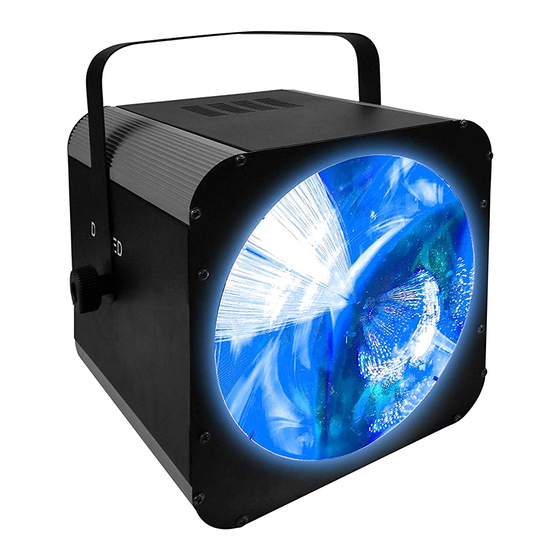

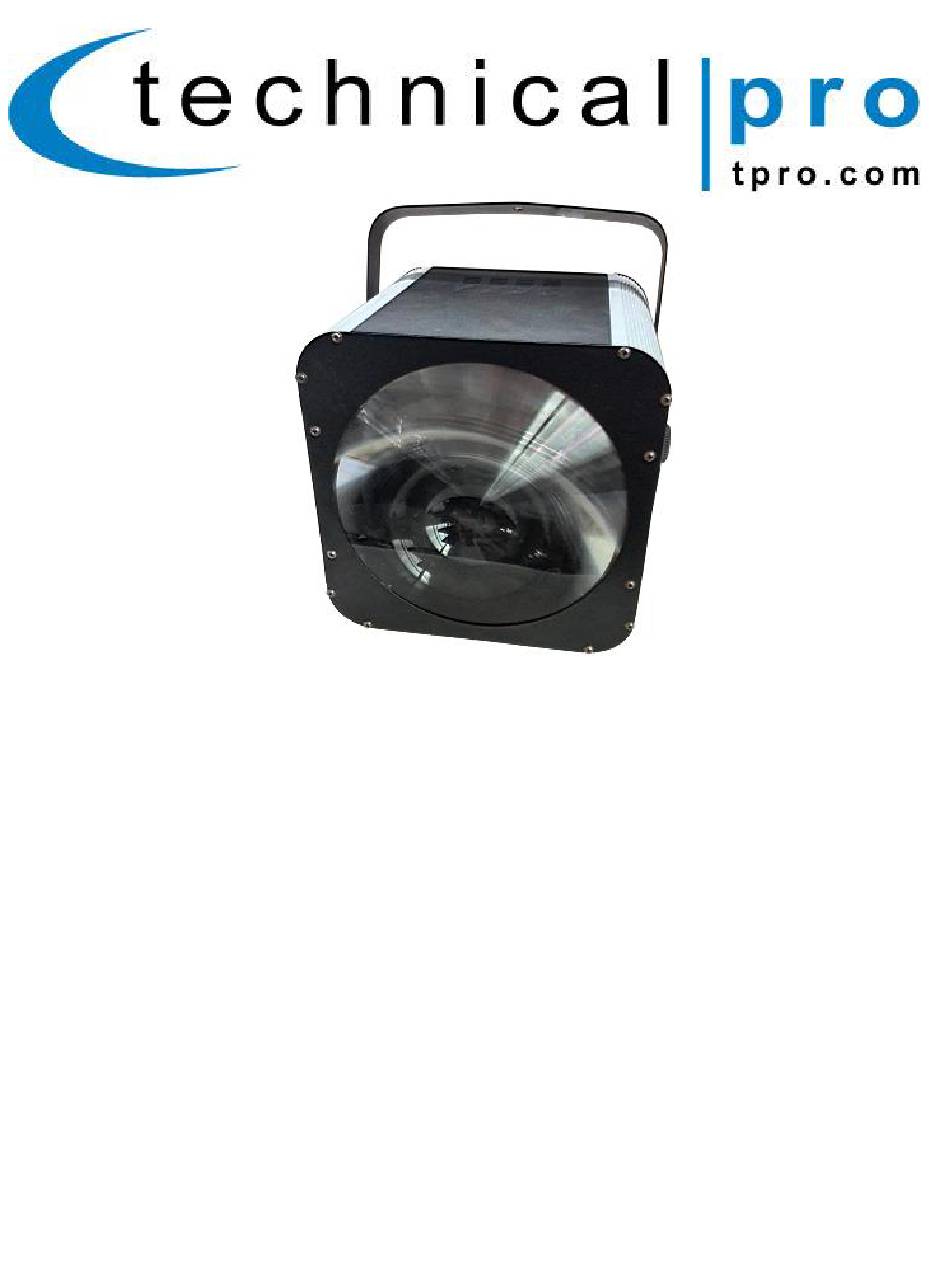

- Page 1 User Manual for: Professional DJ Multicolor LED Stage Effect light With DMX MODEL: LG500x...
- Page 2 Introduction Congratulations and thank you for your purchase of this Technical Pro LED stage effect light. To get the most from your unit it is recommended that you review all of the information provided in this instruction manual before operating this equipment.
- Page 3 DMX Output(XLR): DMX(Digital Multiplex) is the form of communication between controller and fixtures. When linking multiple LG500x units simply connect the DMX OUTPUT to the DMX INPUT on the next unit. 5. DMX Input (XLR):DMX(Digital Multiplex) is the form of communication between controller and fixtures.
- Page 4 LG500x AC Power: This fixture runs on 110VAC, 50/60 Hz. Before powering on the unit, make sure the line voltage to which you are connecting it is within the range of accepted voltages. Always connect the fixture to a switched circuit. Never connect the fixture to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used only as a 0 to 100% switch.
-
Page 5: What Is Dmx
LG500x What is DMX: There are 512 channels in a DMX connection. Channels may be assigned in any manner. A fixture capable of receiving DMX will require one or a number of sequential channels. The user must assign a starting address on the fixture that indicates the first channel reserved in the controller. - Page 6 LG500x DIP Instructions: DIP Description Instruction If ’’3’’ is on, it is LED strobe. If ’’6’’ are on, it is LED static color. If ’’7’’ is on, it is Sound-Activated mode. If ’’8’’ is on, it is Auto-pilot mode. (it will output all the built-in programs) If ’’1’’...
-
Page 7: For Example
LG500x DIP Detail function The Number under the DIP address: 1,2,4,8,16,32,64,128,256,512, it works with DMX Controller, when the DMX controller connect with the lights and many lights work together, you can set different lights with different channel of DMX Controller as the first channel of a special lights. In fact, this change the lights first channel position, And you can use one DMX controller to control many lights to show many different effects. - Page 8 LG500x IF 5 on, it means to use the Channel 16 of the DMX controller to be the CH1 of a special lights. Then the next channel17 of the DMX controller as the CH2 to control the lights, and so on...
- Page 9 LG500x IF 1 and 3 on, it is 1+4=5, it means to use the Channel 5 of the DMX controller to be the CH1 of a special lights, then the next channel 6 of the DMX controller as the CH2 to control the lights, and so on.
- Page 10 9 Channel Mode (DMX): When use the LG500x together with a DMX controller, set the DIP to 10 on, then use the DMX controller to adjust the settings of CH1, CH2, CH3 and CH4, CH5, CH6, CH7, CH8 to show different effect.
-
Page 11: Technical Parameters
LG500x Technical Parameters: LED Light Red/Green/Blue LED source: 469pcs (red:280, Green:63 , Blue:126) System Port DMX512 input and output port Control Mode Auto,Sound Active,DMX512 Demo Effect 255 grade high brightness level,0-100% linear dimming. Power Supply AC110V Power Product 11.4’’X13’’X11’’ dimension...
