Technical Pro LGMEGAx User Manual

Professional dj multi pattern laser & led stage effect light with dmx
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual for:
Professional DJ Multi Pattern Laser & LED
Stage Effect Light With DMX
MODEL: LGMEGAx

Advertisement

loading
Need help?

Need help?

Do you have a question about the LGMEGAx and is the answer not in the manual?

Questions and answers

Related Manuals for Technical Pro LGMEGAx

Summary of Contents for Technical Pro LGMEGAx

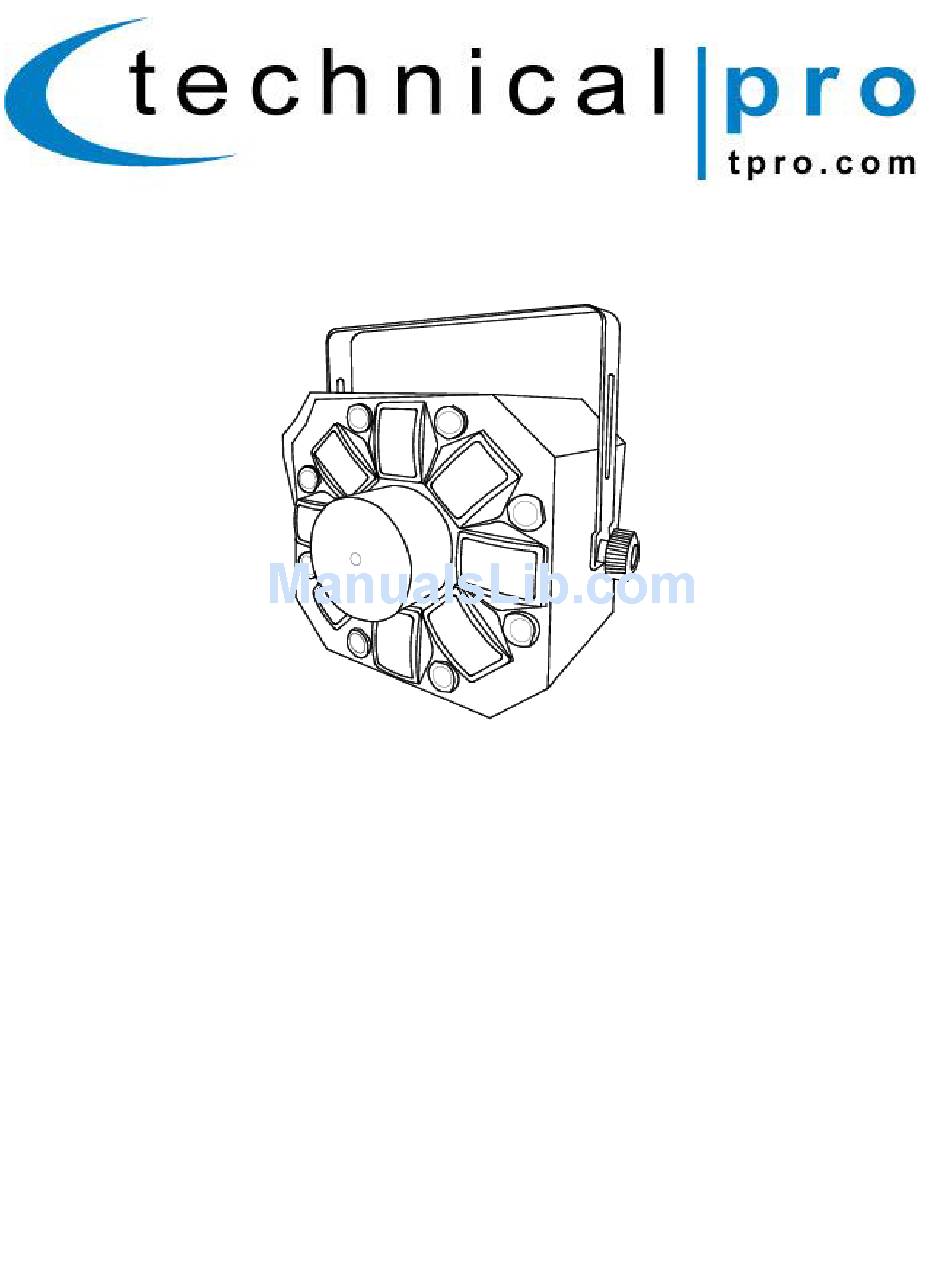

  • Page 1 User Manual for: Professional DJ Multi Pattern Laser & LED Stage Effect Light With DMX MODEL: LGMEGAx...
  • Page 2 Introduction Congratulations and thank you for your purchase of this Technical Pro LED stage effect light. To get the most from your unit it is recommended that you review all of the information provided in this instruction manual before operating this equipment.

  • Page 3: Unpacking Instructions

    Any wrong operation will make this unit out of warranty. Carefully move after receiving it, checking whether there is any damage from shipping, and all the accessories in it. LGMEGAx: 1pc Power Cord:1pc Keys: 2pcs Interlock Switch: 1pc User’s Manual: 1pc...

  • Page 4: Safety Instructions

    LGMEGAx Warning: Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.
  • Page 5 LGMEGAx Overhead Rigging Attention: the installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/ or damage to property. Overhead rigging require extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.
  • Page 6 11. DMX Output (XLR): DMX (Digital Multiplex) is the form of communication between controller and fixtures. When linking multiple LGMEGAx units simply connect the DMX Output to the DMX Input on the next unit. 12. DMX Input (XLR): DMX (Digital Multiplex) is the form of communication between a DMX controller and the fixtures.
  • Page 7 To connect the power cord to the LGMEGAx plug the female side of the power cord into the power cord input which is on the rear of the unit. Then plug the male side of the power cord to an electric outlet. When linking LGMEGAx units to each other connect the power output on the first unit to power input on the next unit.
  • Page 8 LGMEGAx What is DMX: There are 512 channels in a DMX connection. Channels may be assigned in any manner. A fixture capable of receiving DMX will require one or a number of sequential channels. The user must assign a starting address on the fixture that indicates the first channel reserved in the controller.
  • Page 9 LGMEGAx LED Screen Display Operate modes: d001: DMX512 Mode Aut0: Laser+RGWBA+8White LED on Mode: Press the menu button until Autx(x stand for 0,1,2...6),Press “up” or “down” to get Aut0, Press enter to get Sxxx(xxx stand for 000~100), press “up” or “down” to increase or decrease the number to control the motor rotate speed, re-press the enter to confirm the current mode.
  • Page 10 LGMEGAx Sou1: Laser+RGBWA on Mode: Press the Func button until Soux(x stand for0,1...6), press “up”or “down” to get Sou1, then press enter to confirm the current mode. Sou2:laser+8white LED on Mode: Press the Func button until Soux(x stand for0,1...6), press “up”or “down” to get Sou1, then press enter to confirm the current mode.
  • Page 11 LGMEGAx LED Screen Display Mode Option, to chose the operating mode. Confirmation, to confirm the laser to show the present mode at the current operation. UP/DOWN, to change operating mode, parameter or DMX address. Mode Display Effect Operation Instruction Aut0...
  • Page 12 LGMEGAx 8Channel Mode (DMX): When use the LGMEGAx together with a DMX controller, set the DIP 10+1 are on, then use the DMX controller to adjust the settings of CH1, CH2, CH3, CH4, CH5 and CH6,7,8 to show different effect.
  • Page 13 LGMEGAx 100-104 Red+amber+blue 134 105-109 Red+white+blue 135 110-114 Red+amber+white 145 115-119 Amber+green+blue 234 120-124 Blue+green+white 235 125-129 Amber+green+white 245 130-134 Amber+white+blue 345 135-139 Red+green+blue+amber 1234 (All Auto modes) 140-144 Red+white+blue+amber1345 145-149 Red+green+white+amber 1245 150-154 Red+green+blue+white 1235 155-159 White+green+blue+amber2345 160-164 Red+green+blue+amber+white...

  • Page 14: Technical Parameter

    LGMEGAx Technical Parameter: Dimension 10’’X9’’X10’’ Power AC in/out Rang 100-240V 50/60HZ rate Fuse 1.6A Type Class 3B laser diodes/LED chip Quantity/color 1/red 1/green Laser power rate 100mw 50mw Wave length 650nm 532nm Quantity/color 1/red, 1/green, 1/blue, 1/orange, 1/white, 8/white LED power rate Max temperature 104°F(40℃)
