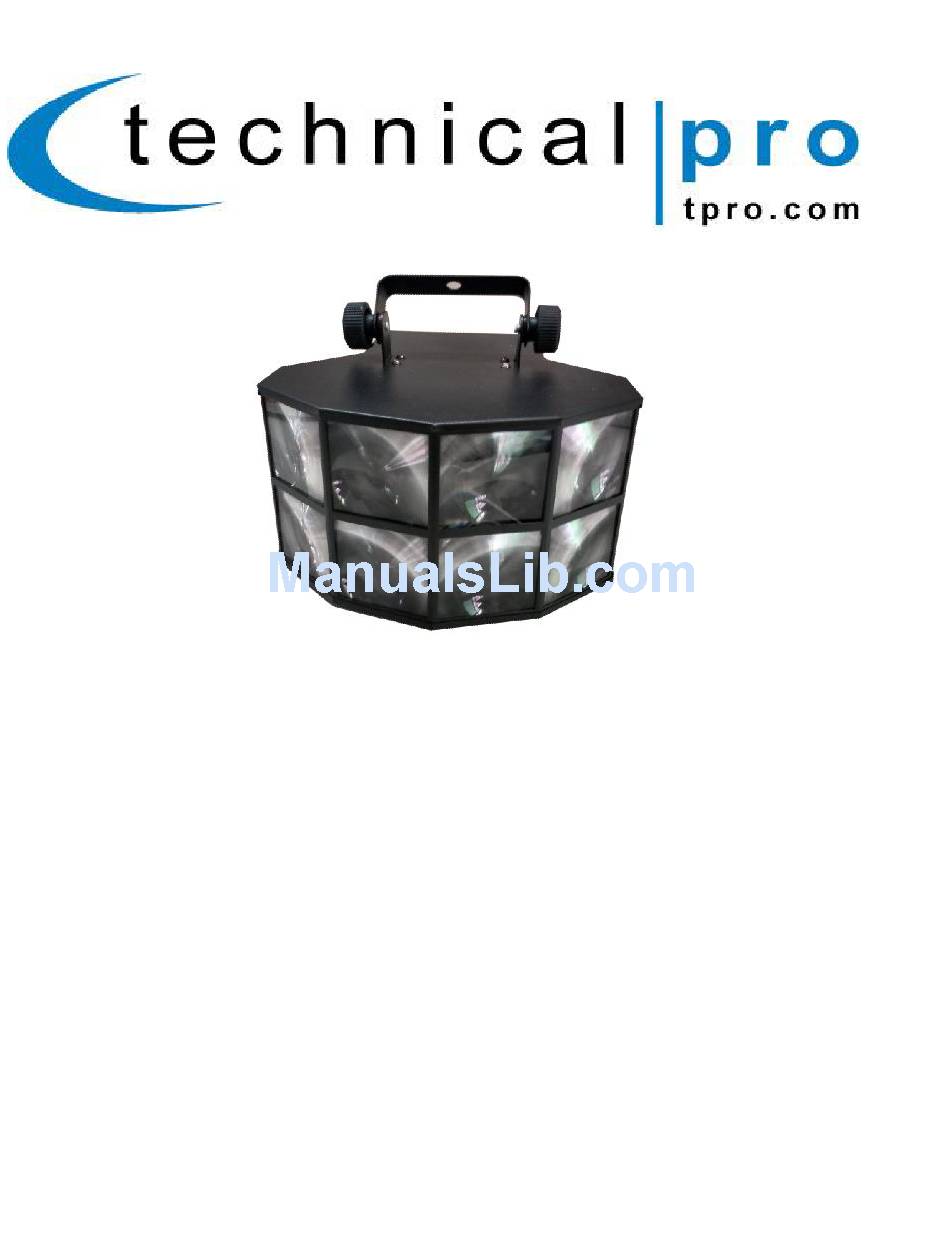

- Page 1 User Manual for: Professional DJ Multi Beam LED Seashell Stage Effect Light with DMX MODEL: LG8xSEA...
- Page 2 Introduction Congratulations and thank you for your purchase of this Technical Pro LED stage effect light. To get the most from your unit it is recommended that you review all of the information provided in this instruction manual before operating this equipment.
- Page 3 LG8xSEA units simply connect the DMX OUTPUT to the DMX INPUT on the next unit. 8. DMX Input (XLR):DMX(Digital Multiplex) is the form of communication between controller and fixtures. Connect the DMX output from the controller to this input, When linking multiple LG8xSEA. More details on the settings can be found below.
- Page 4 LG8xSEA AC Power: This fixture runs on 110~220 VAC, 50/60 Hz. Before powering on the unit, make sure the line voltage to which you are connecting it is within the range of accepted voltages. Always connect the fixture to a switched circuit. Never connect the fixture to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used only as a 0 to 100% switch.
- Page 5 LG8xSEA What is DMX: There are 512 channels in a DMX connection. Channels may be assigned in any manner. A fixture capable of receiving DMX will require one or a number of sequential channels. The user must assign a starting address on the fixture that indicates the first channel reserved in the controller.
- Page 6 LG8xSEA LED Screen Display Operating Modes: A001: DMX512 mode A1-x(x stand for 1,2,.3...9): Red Color output Mode: Press the menu button until A1-x(red) appears on the display screen, you can use”up’ or “down” to increase or decrease the number to control the motor rotate speed.
- Page 7 LG8xSEA LED Screen display: A001 A512 DMX512 A1-x Red on Axxx A2-x Green on A3-x Blue on A4-x White on A5-x 4 color jump change A6-x 7colors jump change A7-x 7colors jump change A8-x Strobe S1-x Sound-activated: fast jumping S2-x...
-
Page 8: Channel Mode
8Channel Mode: When use the LG8xSEA together with a DMX controller, set the button to display A001, then use the DMX controller to adjust the settings of CH1, CH2, CH3, CH4, CH5, CH6, CH7 & CH8 to show different effect. - Page 9 LG8xSEA Master / Slave Settings When two or more fixtures are connected via DMX connectors the fixtures can be programmed to allow one fixture (master) to control the other fixtures (slave). In this setup making a change to the master fixture would change all the slave fixtures as well.
