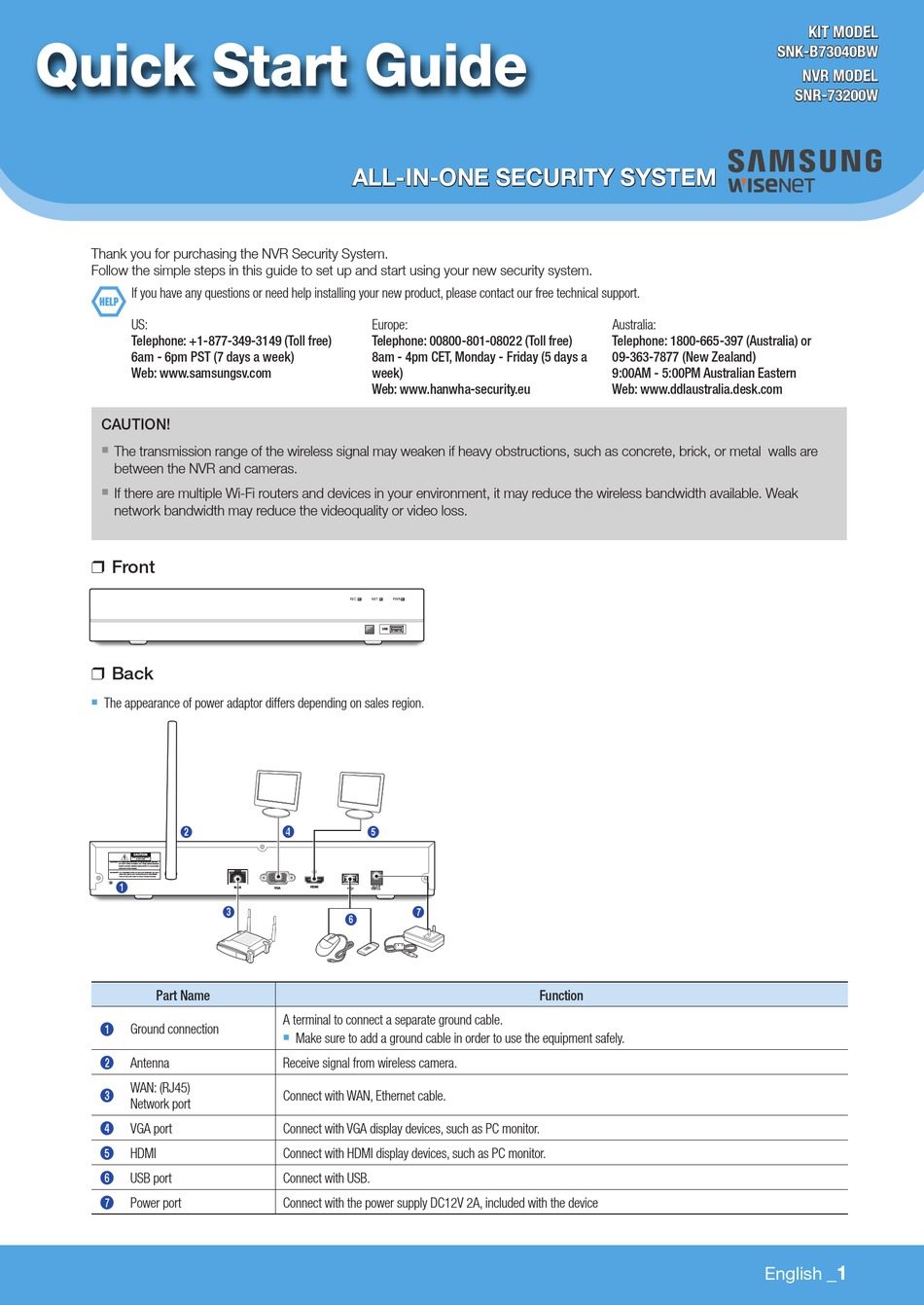

Quick Start Guide
Thank you for purchasing the NVR Security System.
Follow the simple steps in this guide to set up and start using your new security system.
If you have any questions or need help installing your new product, please contact our free technical support.
US:
Telephone: +1-877-349-3149 (Toll free)
6am - 6pm PST (7 days a week)
Web: www.samsungsv.com
CAUTION!
The transmission range of the wireless signal may weaken if heavy obstructions, such as concrete, brick, or metal walls are
`
between the NVR and cameras.
If there are multiple Wi-Fi routers and devices in your environment, it may reduce the wireless bandwidth available. Weak
`
network bandwidth may reduce the videoquality or video loss.
❒ Front
❒ Back
The appearance of power adaptor differs depending on sales region.
`
2
CAUTION
RISK OF ELECTRI SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
1
Part Name
Ground connection
1
Antenna
2
WAN: (RJ45)
3
Network port
VGA port
4
HDMI
5
USB port
6
Power port
7
ALL-IN-ONE SECURITY SYSTEM
Europe:
Telephone: 00800-801-08022 (Toll free)
8am - 4pm CET, Monday - Friday (5 days a
week)
Web: www.hanwha-security.eu
REC
NET
PWR
USB
4
5
WAN
HDMI
VGA
12V
3
6
A terminal to connect a separate ground cable.
Make sure to add a ground cable in order to use the equipment safely.
`
Receive signal from wireless camera.
Connect with WAN, Ethernet cable.
Connect with VGA display devices, such as PC monitor.
Connect with HDMI display devices, such as PC monitor.
Connect with USB.
Connect with the power supply DC12V 2A, included with the device
7
Function
SNK-B73040BW
Australia:
Telephone: 1800-665-397 (Australia) or
09-363-7877 (New Zealand)
9:00AM - 5:00PM Australian Eastern
Web: www.ddlaustralia.desk.com
English
KIT MODEL
NVR MODEL
SNR-73200W
_1
