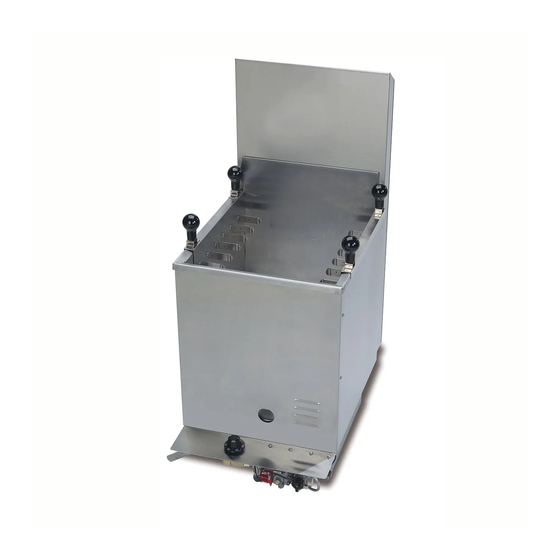

- Page 1 Instruction Manual Gas Fryer Foot Long Dogs Model No. 8065NSD 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2017 Gold Medal Products Co. Part No. 88847...
-
Page 2: Safety Precautions
Gas Fryer Foot Long Dogs Model No. 8065NSD SAFETY PRECAUTIONS DANGER Gas is safe when used properly, but can be very dangerous when used improperly. We suggest that installation be carefully made by qualified personnel only. Gas companies have competent service personnel to provide safe installation. - Page 3 Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215...
- Page 4 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
Dial Type Thermometer Optional Accessories – Not Included The following accessories are available for purchase separately. Dog on a Stick Kit – Gold Medal Item No. 8054 Single Large Fry Basket – Gold Medal Item No. 8072 gmpopcorn.com Page 5... - Page 6 Gas Fryer Foot Long Dogs Model No. 8065NSD Setup This unit is fully assembled and has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. This unit is for outdoor use only. 3. Place the fryer in a protected location on a level, sufficiently stable base or table, where it cannot be knocked off.
-
Page 7: Gas Requirements
Model No. 8065NSD Gas Installation Instructions Gas Requirements The 8065NSD is designed for Propane only. Converting this unit to an alternate fuel source will void the warranty and may cause a dangerous condition. 8065NSD: Propane Gas, 65,000 BTU/HR NOTE: The unit must be attached to a minimum of 40 pound LPG cylinder. For outdoor use only. - Page 8 Gas Fryer Foot Long Dogs Model No. 8065NSD Important Fire Safety Notice Consult your local fire protection agency for your area’s requirements. Check local fire protection requirements regularly to ensure compliance with local codes and proper operation. Have a fire extinguisher near the fryer.
-
Page 9: Checking For Gas Leaks
Stop using the appliance immediately if damage is found, and contact a qualified professional to inspect and correct any issue. 3. Securely route all gas lines away from flames and high temperature areas. 4. Contact Gold Medal Technical Support, or a qualified Gas Service Technician with any questions. Gas Pressure We have determined that optimum frying occurs when the gas pressure is adequate. - Page 10 Gas Fryer Foot Long Dogs Model No. 8065NSD Igniter Battery Replacement Instructions The igniter for this unit requires a AAA Battery. DO NOT install the battery until gas installation is complete (reference the Gas Installation Instructions section). To install/replace igniter battery, make sure all machine switches and gas valves are OFF, then a five minute shutdown period is required before attempting to install/replace the battery.
-
Page 11: Controls And Their Functions
Gas Fryer Foot Long Dogs Model No. 8065NSD OPERATING INSTRUCTIONS Controls and Their Functions COMBINATION VALVE The Combination Valve has three settings used to control gas flow; PILOT, ON, and OFF positions. (Reference the Lighting and Shutdown Instructions in the Operating Instruction section of this manual.) - Page 12 Gas Fryer Foot Long Dogs Model No. 8065NSD Control Locations Heat Control Knob Reset Switch Drain Valve with Safety Collar Drain Plug Igniter Button Gas Safety Valve gmpopcorn.com Page 12...
-
Page 13: Tank Preparation
Gas Fryer Foot Long Dogs Model No. 8065NSD Tank Preparation Before operating for the first time, the inside of the fryer tank should be rinsed and thoroughly dried before adding oil. See the Cleaning and Care section of this manual for cleaning instructions. -
Page 14: Lighting And Shutdown Instructions
Gas Fryer Foot Long Dogs Model No. 8065NSD Lighting and Shutdown Instructions Steps to Light the Pilot and Burner: 1. Turn the Combination Valve to the PILOT position. 2. Press the Combination Valve “IN”. While holding the Combination Valve in, press and hold the Igniter Button “IN”... -
Page 15: Operating The Fryer
Gas Fryer Foot Long Dogs Model No. 8065NSD Operating the Fryer Important Operating Information and Quality Control Tips • Don't overheat. Don't fry if the oil temperature exceeds 400°F. • Don't waste money, use only high quality heavy duty frying shortening. -
Page 16: Care And Cleaning
4. Add appropriate amount of dish soap. [To deep clean a tank which has a build-up of cooking oil, instead of soap, add appropriate amount of Gold Medal’s Heat’n Kleen (Item No. 2095) per amount of water used (see Heat’n Kleen product instructions)]. -
Page 17: Troubleshooting
Gas Fryer Foot Long Dogs Model No. 8065NSD Troubleshooting Issue Possible Cause Solution Gas Issues A. For gas issues refer to the initial Gas Setup Instructions. Cooking Issues A. Product cooking issues A. Reference the Important Operating Information and Quality Control Tips located in the Operating the Fryer section of this manual. -
Page 18: Maintenance Instructions
Gas Fryer Foot Long Dogs Model No. 8065NSD MAINTENANCE INSTRUCTIONS DANGER Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Any alterations to this equipment will void the warranty and may cause a dangerous condition. This appliance is not intended to be operated by means of an external timer or separate remote-control system. -
Page 19: Ordering Spare Parts
Gas Fryer Foot Long Dogs Model No. 8065NSD ORDERING SPARE PARTS 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. (General images may be used in manual for reference only.) 2. Use only approved replacement parts when servicing this unit. -
Page 20: Cabinet Exterior
Gas Fryer Foot Long Dogs Model No. 8065NSD Cabinet Exterior Part No. Item Part Description 8065NSD SKEWER CLIP ASSY 89837 BALL KNOB 89146 GLASS INSPECTION COVER 89662 LEVELERS CASE 45047 THERMOSTAT KNOB 89005 gmpopcorn.com Page 20... - Page 21 Gas Fryer Foot Long Dogs Model No. 8065NSD Gas Line Assembly Part No. Item Part Description 8065NSD THERMOSTAT KNOB 89005 THERMOSTAT 88844 HI LIMIT CONTROL 89615 WIRE ASSEMBLY 89767 3/8 IN NPT PIPE PLUG 89770 IGNITER 88854 IGNITER BRACKET 88853...
- Page 22 Gas Fryer Foot Long Dogs Model No. 8065NSD Gas Line Assembly (continued) Part No. Item Part Description 8065NSD DRAIN VALVE 89014 DRAIN PLUG ASSEMBLY 89440 3/4 X 90 DEGREE STREET ELBOW 89416 3/8 BLK IRON ELBOW 90 62510 3/8" BLK PIPE 6 1/4"...
-
Page 23: Burner Assembly
Gas Fryer Foot Long Dogs Model No. 8065NSD Burner Assembly Part No. Item Part Description 8065NSD S-85 BURNER 88836 3/8 BLK IRON ELBOW 90 62510 PILOT ORIFICE 74050 PILOT BURNER 74028 gmpopcorn.com Page 23... - Page 24 Gas Fryer Foot Long Dogs Model No. 8065NSD Accessories Part No. Item Part Description 8065NSD TANK REGULATOR 89920 GAS HOSE (has a Flared Hose Fitting) 109000 FINE MESH SKIMMER 8055 DIAL TYPE THERMOMETER 4300 gmpopcorn.com Page 24...
-
Page 25: Wiring Diagram
Gas Fryer Foot Long Dogs Model No. 8065NSD Wiring Diagram Model No. 8065NSD gmpopcorn.com Page 25... - Page 26 © 2017 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
