Summary of Contents for Gold Medal 8087

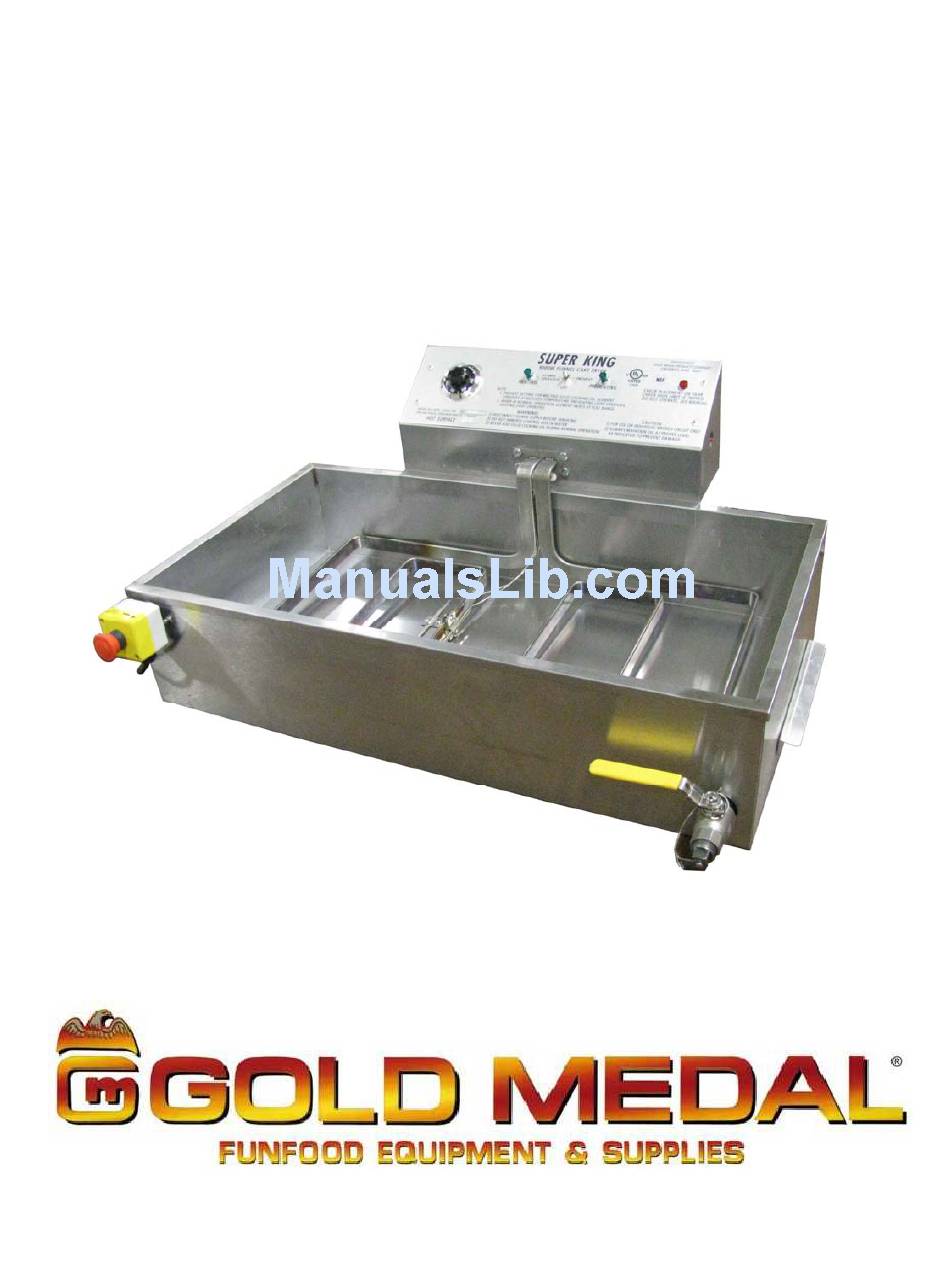

- Page 1 Part No. 89876 Electric Fryer Instruction Manual #8087, #8088 Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS... -
Page 3: Installation Instructions
Unpack all cartons and check thoroughly for any damage that may have occurred during transit. Damage claims should be filed immediately with the transportation company. Gold Medal Products is not responsible for damage that occurs in transit. Setup: Your new Fryer is completely assembled and tested at the factory. -
Page 4: Installation
All Gold Medal fryers have two thermostats. One thermostat works with the heat adjustment dial and controls the working temperature of the oil. The other is a high limit shut-down thermostat that operates in the event that the first thermostat should fail. - Page 5 Electric Fryer IMPORTANT: Do not operate your fryer until it has been filled to the correct level as marked (notched) inside the tank. Cautions Hot oil is dangerous - severe burns can result when hot oil contacts skin. Hot oil is flammable - keep open flames away from oil and vapors. Do NOT introduce excessive amounts of water to fryer.
-
Page 6: Operation
Electric Fryer Operation Controls and their functions Main Power Switch Switches between the "OFF" position, "PREHEAT" position, and "NORMAL OPERATION" position. Temperature Control Turns the fryer ON and sets to the desired temperature. Pre-Heat Pilot Light Indicates that the main power switch is in the "PREHEAT" position and the element is heating at 3000 watts only. -
Page 7: Maintenance Instructions
MAINTENANCE INSTRUCTIONS... -
Page 8: Ordering Spare Parts
ORDERING SPARE PARTS Always speak to a Gold Medal Products Technical Service Advisor before ordering any parts to help ensure accuracy for your product. Included diagrams may not be the latest information. 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list. -
Page 9: Parts Breakdown
Electric Fryer Parts Breakdown Contactor (2) Toggle Switch P/N 89082 Contactor Cubed 10A Terminal Block P/N 89872 P/N 89088 Relay Qty 5 P/N 89086 P/N 55444 High Limit Control Wire Set Element Thermostat Limit Switch P/N 89356 P/N 89081 P/N 89043 P/N 89007 P/N 89004 Ribbon Bulb Retainer... - Page 10 Electric Fryer Thermostat Knob Pilot Light-240v P/N 89005 Green Pilot Light-240v Red Thermostat Bezel P/N 41466 P/N 41032 P/N 89006 Toggle Switch P/N 89872 High Limit P/N 89007 Limit Switch P/N 89043 Flat Element 230v 7000/9000 Watts P/N 89081 ALL MODELS...
- Page 11 Electric Fryer Emergency Stop Switch Components P/N 89887 Cabinet And Oil Tank P/N 89870 Drain Plug P/N 89441 Valve P/N 89014 Receptacle Cable Assembly P/N 49224 P/N 89889 Plug P/N 49220 Power Cord, 50A Plug Coupling Ring P/N 89810 P/N 47978 Receptacle P/N 89830 ALL MODELS...
-
Page 12: Electrical Schematic
Electric Fryer Electrical Schematic ALL MODELS... -
Page 13: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
