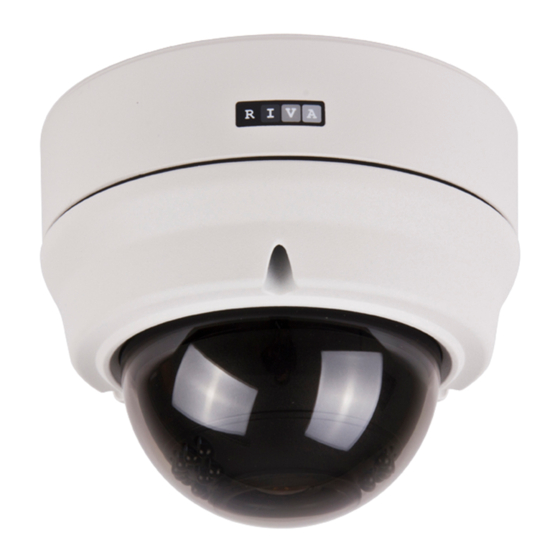

Riva RC3502HD-5211IR Installation Manual

Riva RC3502HD-5211IR Installation Manual

Hide thumbs Also See for RC3502HD-5211IR:

Advertisement

Quick Links

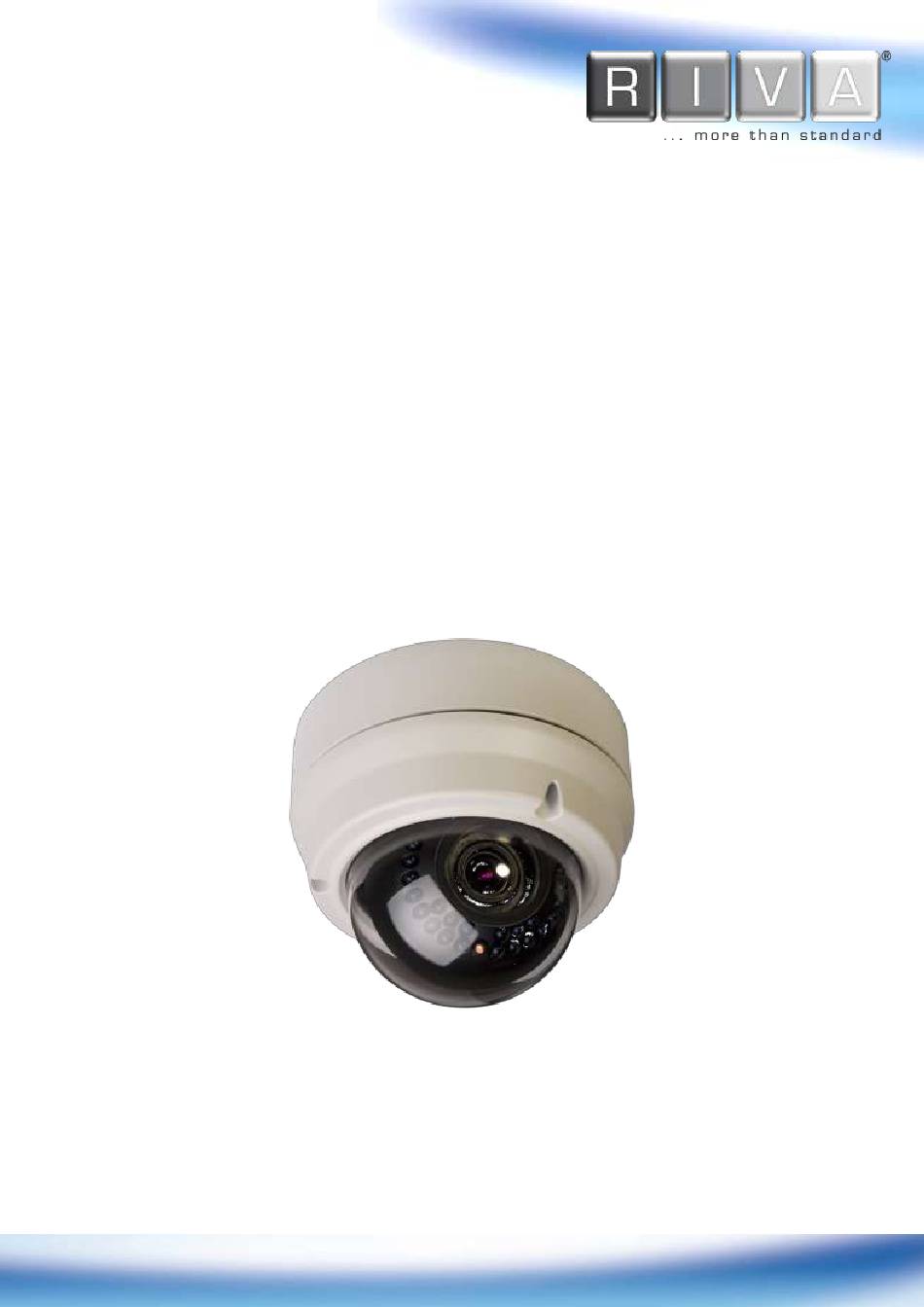

1
RC3502HD-5211IR
Installation Guide
www.rivatech.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC3502HD-5211IR and is the answer not in the manual?

Questions and answers

Summary of Contents for Riva RC3502HD-5211IR

  • Page 1 RC3502HD-5211IR Installation Guide www.rivatech.de...
  • Page 2 INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PARTS. This symbol is intended to alert the user the presence of un- insulated “dangerous voltage”...
  • Page 3: Table Of Contents

    Table of Contents 1. FEATURES ................5 2. PACKAGE CONTENTS ..............7 3. PART NAMES ................8 4. INSTALLATION ................ 10 4.1. Installation Template ..............11 4.2. Setting the Lens Position .............. 12 4.3. Setting the Image Attribute ............13 5.
  • Page 4 APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE ..... 29 REVISION HISTORY ............... 30 www.rivatech.de...
  • Page 5: Features

    1.FEATURES Camera  Full HD outdoor fixed IR dome IP camera (Vandal proof)  High quality compression in real time streaming  1/2.7” High Quality CMOS Image Sensor  True Day / Night (ICR)  Improvement of color rolling suppression ...
  • Page 6 Additional Features  Micro SD card support  PoE support (Camera and Fan)  Built-in Video Content Analysis  Internal fan and heater (heater function only with external power supply)  IP66 certified  SDK (Software Development Kit) provided * When VCA is activated, frame rate is limit to max15fps@1080p. Limitations are based on V.1.5.0 firmware release and could be changed without notice.
  • Page 7: Package Contents

    2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera DC power adaptor DC Jack Cable 9-pin and 2-pin terminal block Video out cable Screws and anchors Installation template Hex wrench driver Quick installation guide Silicon waterproof band Clamping core To prevent electromagnetic...
  • Page 8: Part Names

    3. PART NAMES       ⑦ * Models and their appearance are subject to change without any prior notice. 1. Fan The fan and heater (underneath the black panel) are implemented for controlling temperature and humidity level. 2.
  • Page 9 4. Video output, audio and IO terminal connector A 9-pin terminal block is included in the device package. Connect this terminal block into this connector for cable connection of video output, audio input/output and digital input/output. Refer to 5.Connections for more details. 5.
  • Page 10: Installation

    4.INSTALLATION 1) Place the installation template (paper) that is included in the package on the desired installation surface. 2) Drill three holes in correct positions based on the template paper, and insert anchor blocks into the holes. 3) Place the waterproof silicon band on the bottom plate of the device and make it align with screw holes.
  • Page 11: Installation Template

    4.1. Installation Template Installation template image’s size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the Caution package separately. www.rivatech.de...
  • Page 12: Setting The Lens Position

    4.2. Setting the Lens Position Instruction below describes how to set the lens positions and manually adjust zoom and focus. 1) Remove the dome cover. 2) Set the lens position by rotating the camera gimbal; to pan, rotate the reinforced lower body of the gimbal;...
  • Page 13: Setting The Image Attribute

    5) Unscrew the focus lever by turning it counterclockwise. Move it left or right and adjust the image focus. After the setting, tighten the focus lever again by turning it clockwise. 4.3. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The camera image’s brightness, contrast, saturation and sharpness are adjustable through the image settings.
  • Page 14: Connections

    Reset 5. CONNECTIONS N / A N / A N / A N / A     VIDEO AUDIO DC12V ETHERNET MICRO SD   1. Audio input/output The camera has a mono audio input and a mono audio output. Due to low audio output N / A N / A power, an amplified speaker is recommended for enhanced sound (Do not connect a...
  • Page 15 The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or a relay type sensor as the following figures. Settings can be done through the camera’s webpage Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Input voltage threshold: 1.5V Do not exceed the maximum input voltage or relay rate.
  • Page 16 Internal Device Relay Type Must connect GND port which is located between systems. Caution www.rivatech.de...
  • Page 17 4. Video input/output The camera provides 1 video out Video Black 5. LAN connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Connect a LAN cable. Green LED Orange LED When the device is connected, the orange LED stays on while green LED continues to blink.
  • Page 18: Configuration

    6.CONFIGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation.
  • Page 19: Custom Ip Environment

    3. Web streaming and device configurations are supported through ActiveX program. When the ActiveX installation window appears, authorize and install the ActiveX. 6.1.2. Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from homepage. www.rivatech.de IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network...
  • Page 20: View Video On Web Page

    Give new unique IP address in PC environment Info last two sets and mirror other information in other boxes 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
  • Page 21 The browser asks to install the ActiveX. Click Allow. 2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet Explorer version. Proceed with rest of setup installation. 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame.
  • Page 22: View Video Using Ipadmin Tool

    This software requires the Microsoft XML Parser V6 or higher. If “ Please download MSXML6 from the Microsoft website to continue. Error code: Cannot create XMLDOMDocument. ” message appears, Caution download and install the Microsoft Core XML Services (MSXML) 6.0. 6.2.1.
  • Page 23: Reset

    3. The system’s default web browser opens the device’s address. Please take care that the default system web browser is Microsoft® Internet Explorer to support ActiveX plug-in. Whether directly accessing the streaming video through typing IP address on a web page or taking steps through IPAdminTool, the ActiveX is needed to be installed for the Microsoft®...
  • Page 24 More Information To learn more about using other features of your devices, refer to the manuals as “Web Interface Manual” or “VCAsys_Online_Help”, which is available on USB stick or on homepage. www.rivatech.de www.rivatech.de...
  • Page 25: Appendix (A): Specifications

    APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS Effective 1920x1080 CMOS Pixels Scanning Progressive scanning system Resolution 1920 x 1080 ELECTRIC Min. Color: 0.5 lux, F1.2 Illumination BW: 0 lux (IR LED ON) AGC Control Auto Lens 3.0~9.0mm Vari-Focal F1.2 Day &...
  • Page 26: Electrical Characteristics

    Electrical Characteristics Power Source DC 12V / PoE IEEE802.3af (Class 0) PoE support camera + fan 1.0A @ DC12V / 12W (Heater Off / LED On) Power Consumption 1.8A @ DC12V / 21.6W (Heater On / LED On) Video Output 1 Vp-p, 75Ω, Composite Audio Input Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p),...
  • Page 27: Appendix (B): Power Over Ethernet

    APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables.
  • Page 28: Appendix (C): Dimensions

    APPENDIX (C): DIMENSIONS (Unit: mm) www.rivatech.de...
  • Page 29 APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. www.rivatech.de...
  • Page 30 REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 05/24/2012 First release version 01A.02 06/01/2012 Power consumption, illumination variable update 01A.03 06/12/2012 Video, PAL/NTSC description corrected 01A.04 06/25/2012 DI/DO specification corrected 01A.05 07/03/2012 Supporting protocol revised. (removed SOCK and SSH) 01A.06 07/04/2012 Reset/Factory reset description updated www.rivatech.de...
